滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSS-102545-14A-DSWITCH SLIDE SPDT 0.3A 24V |
365 |
|
数据手册 |
- | Bag | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 24 V | Standard | - | Nickel | Gold | Through Hole | PC Pin | - |
|
1825282-1SWITCH SLIDE SPDT 100MA 12V |
2,515 |
|
数据手册 |
SSJ | Bulk | Active | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 12 V | Standard | 2.50mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
GF-124-0204SWITCH SLIDE SPDT 500MA 125V |
1,869 |
|
数据手册 |
GF | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 11.50mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
GF-124-0198SWITCH SLIDE SPDT 500MA 125V |
536 |
|
数据手册 |
GF | Bulk | Active | SPDT | Not Specified | On-On (Line Voltage Selector) | 500mA (AC/DC) | 125 V | 125 V | Screwdriver Slot | 1.27mm | Copper | Silver | Panel Mount | Solder Lug | No Marking |
|
SK-12F17-G 7SWITCH SLIDE SPDT 300MA 30V |
8,508 |
|
数据手册 |
SK, COMAX | Bulk | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 30 V | Standard | 7.00mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
MFS201N-4-ZSWITCH SLIDE DPDT 1A 125V |
7,573 |
|
数据手册 |
MFS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 1A (AC/DC) | 125 V | 30 V | Standard | 8.00mm | - | - | Through Hole | PC Pin | - |
|
GF-326-0000SWITCH SLIDE DPDT 3A 125V |
3,740 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
SK-22D01-MG 5 NSSWITCH SLIDE DPDT 300MA 30V |
156 |
|
数据手册 |
SK, COMAX | Bulk | Active | DPDT | Not Specified | On-On | 300mA (DC) | - | 30 V | Standard | 5.00mm | - | Silver | Through Hole, Right Angle | PC Pin | - |
|
CL-SB-12B-11TSWITCH SLIDE SPDT 200MA 12V |
3,263 |
|
数据手册 |
CL-SB | Tape & Reel (TR) | Active | SPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Silver | Surface Mount, Right Angle | Gull Wing | - |
|
GF-126-0312SWITCH SLIDE DPDT 500MA 125V |
635 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 8.33mm | Copper | Silver | Through Hole | PC Pin | - |
|

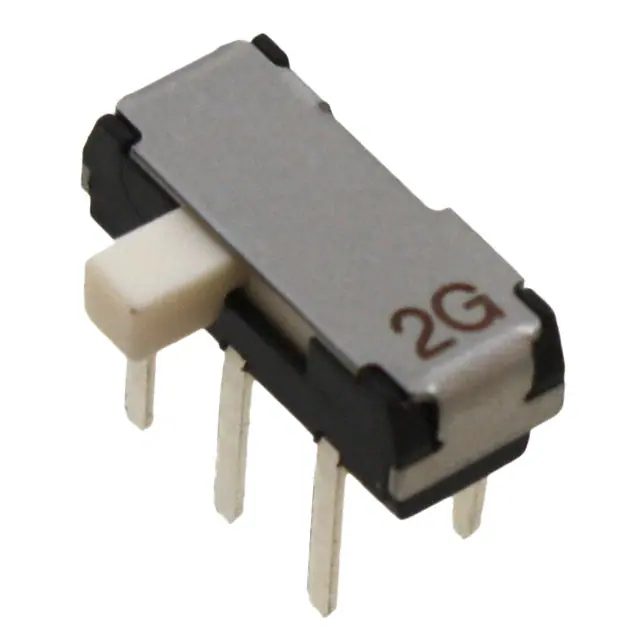

CL-SB-22C-11SWITCH SLIDE DPDT 200MA 12V |
1,544 |
|
数据手册 |
CL-SB | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
MS4208L4SWITCH SLIDE 4PDT 0.3A 30V |
1,402 |
|
数据手册 |
MS4208 | Tray | Active | 4PDT | Not Specified | On-On | 300mA (DC) | - | 30 V | Standard | 4.00mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
CL-SB-22C-01SWITCH SLIDE DPDT 200MA 12V |
824 |
|
数据手册 |
CL-SB | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Silver | Through Hole | PC Pin | - |
|
GF-126-0147SWITCH SLIDE DPDT 3A 125V |
121 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | PC Pin | - |
|
CL-SB-13B-01TSWITCH SLIDE SP3T 200MA 12V |
7,678 |
|
数据手册 |
CL-SB | Tape & Reel (TR) | Active | SP3T | Non-Shorting (BBM) | On-On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Silver | Surface Mount | Gull Wing | - |
|

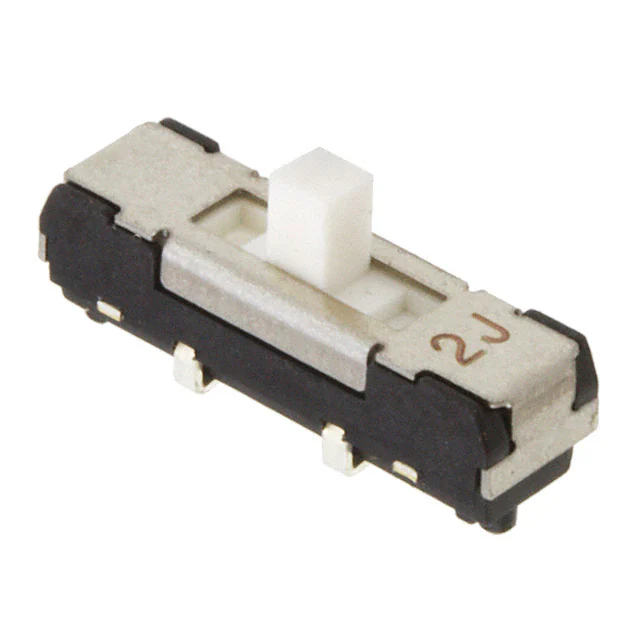

CL-SB-13A-01TSWITCH SLIDE SP3T 200MA 12V |
3,211 |
|
数据手册 |
CL-SB | Tape & Reel (TR) | Active | SP3T | Non-Shorting (BBM) | On-On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Silver | Surface Mount | J Lead | - |
|
GF-126-3011SWITCH SLIDE DPDT 3A 125V |
948 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

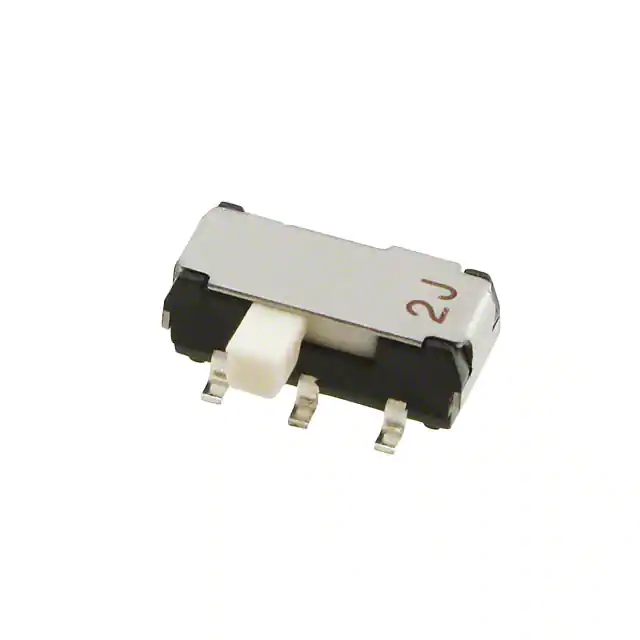

CL-SB-22B-11TSWITCH SLIDE DPDT 200MA 12V |
1,935 |
|
数据手册 |
CL-SB | Tape & Reel (TR) | Active | DPDT | Non-Shorting (BBM) | On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Silver | Surface Mount, Right Angle | Gull Wing | - |
|
CL-SB-23A-01TSWITCH SLIDE DP3T 200MA 12V |
13,983 |
|
数据手册 |
CL-SB | Tape & Reel (TR) | Active | DP3T | Non-Shorting (BBM) | On-On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Silver | Surface Mount | J Lead | - |
|
GF-123-3011SWITCH SLIDE SPST 3A 125V |
2,970 |
|
数据手册 |
GF | Bulk | Active | SPST | Not Specified | On-Off | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
