信号调理器和隔离器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输入类型 | 输入范围（电流、电压） | 输入范围（附加） | 输出类型 | 输出范围 | 隔离 | 特性 | 电压 - 电源 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
857-415ISOLATION AMPLIFIER; CURRENT INP WAGO Corporation |
4,316 |
|
数据手册 |
857 | Bag | Active | Isolation Amplifier | Current | 0 ~ 20mA | 0 ~ 50Ohm | Voltage | 0 ~ 10V | 2500V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C |
|
857-413ISOLATION AMPLIFIER; VOLTAGE INP WAGO Corporation |
2,112 |
|
数据手册 |
857 | Bag | Active | Isolation Amplifier | Voltage | 0 ~ 10V | 0 ~ 100kOhm | Current | 0 ~ 20mA | 2500V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C |
|

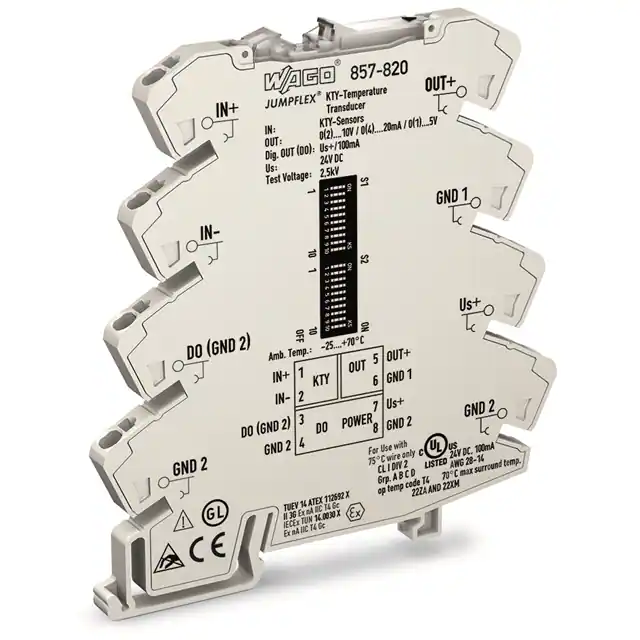

857-820JUMPFLEX TRANSDUCER; KTY TRANSDU WAGO Corporation |
4,645 |
|
数据手册 |
857 | Bag | Active | Signal Conditioner | Temperature | - | - | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 2500V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C |
|
857-551CURRENT SIGNAL CONDITIONER; CURR WAGO Corporation |
4,424 |
|
数据手册 |
857 | Bag | Active | Signal Conditioner | Current | 0 ~ 6A (Configurable) | 16 ~ 200Hz, 0 ~ 47mOhms | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 3000V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -40°C ~ 70°C |
|
857-552CURRENT SIGNAL CONDITIONER; INPU WAGO Corporation |
3,350 |
|
数据手册 |
857 | Bag | Active | Signal Conditioner | Voltage | 10.05mV ~ 90mV | 0 ~ 50Hz | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 2500V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C |
|
857-818TEMPERATURE SIGNAL CONDITIONER F WAGO Corporation |
4,757 |
|
数据手册 |
857 | Bag | Active | Signal Conditioner | Temperature | - | - | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 2500V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C |
|
857-569POWER SIGNAL CONDITIONER; CURREN WAGO Corporation |
3,926 |
|
数据手册 |
857 | Bag | Active | Signal Conditioner | Current, Voltage | 0 ~ 5A, 300VAC/DC | 15 ~ 70Hz, 0 ~ 10mOhms | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 2500V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -40°C ~ 70°C |
|
2857-535T-TRANSDUCER UI WAGO Corporation |
2,002 |
|
数据手册 |
2857 | Bag | Active | Signal Conditioner | Resistance, Temperature | - | 0 ~ 10kOhm, -210°C ~ 2320°C | Current, Voltage | ±24mA, ±12V | 3000V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -40°C ~ 70°C |
|
2857-569SINGLE-PHASE POWER SIGNAL CONDIT WAGO Corporation |
3,989 |
|
数据手册 |
2857 | Bag | Active | Signal Conditioner | Current, Voltage | 1 ~ 8A, 30 ~ 500V (Configurable) | 15 ~ 400Hz | Current, Voltage | ±24mA, ±12V | - | - | 24VDC | DIN Rail | Spring Terminal | -40°C ~ 70°C |
