信号调理器和隔离器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 输入类型 | 输入范围（电流、电压） | 输入范围（附加） | 输出类型 | 输出范围 | 隔离 | 特性 | 电压 - 电源 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2857-401ISO-AMP UI(BIP) UI(BIP) WAGO Corporation |
4,814 |
|
数据手册 |
2857 | Bag | Active | Isolation Amplifier | Current, Voltage | ±100mA, 0 ~ 220V (Configurable) | - | Current, Voltage | ±20mA, ±10V (Configurable) | 4000V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -40°C ~ 70°C |
|
857-811TEMPERATURE SIGNAL CONDITIONER F WAGO Corporation |
4,052 |
|
数据手册 |
857 | Bag | Active | Signal Conditioner | Temperature | - | -210°C ~ 1350°C | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 2500V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C |
|
857-819VOLTAGE SIGNAL CONDITIONER; BIPO WAGO Corporation |
1,344 |
|
数据手册 |
857 | Bag | Active | Signal Conditioner | Voltage | 0 ~ 1V (Configurable) | 0 ~ 1MOhm | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 2500V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C |
|
857-416ISOLATION AMPLIFIER; CURRENT INP WAGO Corporation |
4,429 |
|
数据手册 |
857 | Bag | Active | Isolation Amplifier | Current | 4 ~ 20mA | 0 ~ 50Ohm | Voltage | 0 ~ 10V | 2500V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C |
|

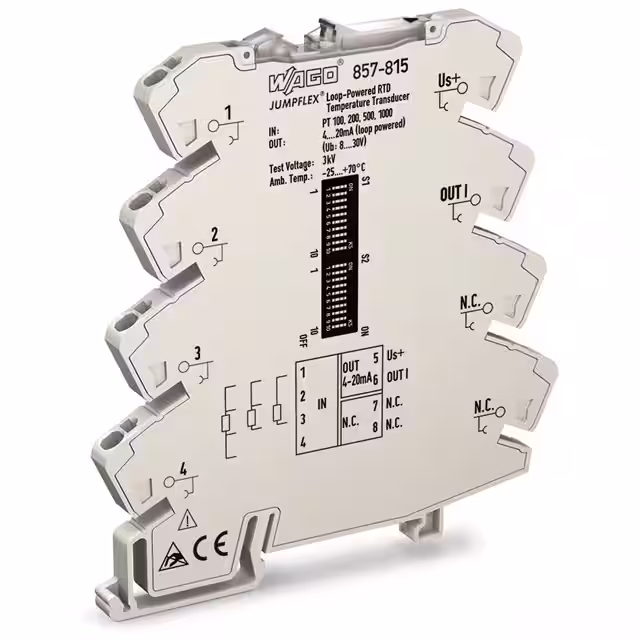

857-815TEMPERATURE SIGNAL CONDITIONER F WAGO Corporation |
4,027 |
|
数据手册 |
857 | Bag | Active | Signal Conditioner | Temperature | - | -200°C ~ 850°C | Current | 0 ~ 20mA (Configurable) | 3000V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C |
|
857-801TEMPERATURE SIGNAL CONDITIONER F WAGO Corporation |
1,474 |
|
数据手册 |
857 | Bag | Active | Signal Conditioner | Resistance, Temperature | - | 0 ~ 4.5kOhm, -200°C ~ 850°C | Current, Voltage | 0 ~ 20mA, 0 ~ 10V (Configurable) | 2500V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C |
|

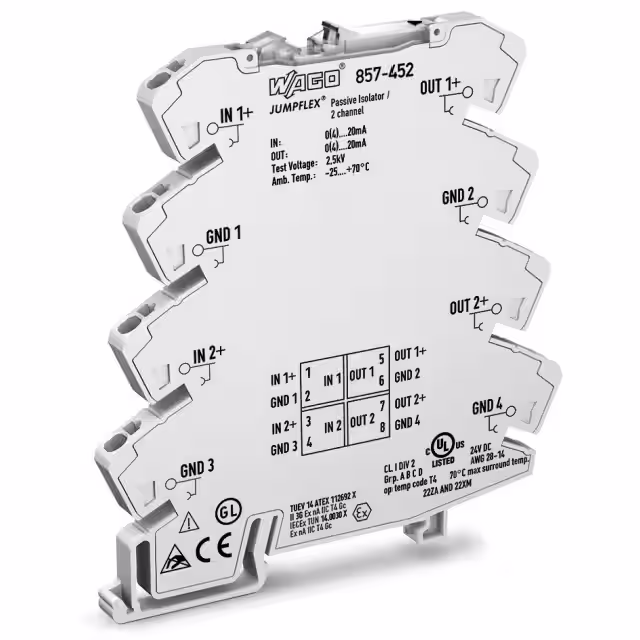

857-452PASSIVE ISOLATOR, 2-CHANNEL; CUR WAGO Corporation |
2,282 |
|
数据手册 |
857 | Bag | Active | Passive Isolator | Current | 0 ~ 20mA (Configurable) | - | Current | 0 ~ 20mA (Configurable) | 3000V (Test) | - | - | DIN Rail | Spring Terminal | -25°C ~ 70°C |
|
2857-535/000-001T-TRANSDUCER WAGO Corporation |
1,749 |
|
数据手册 |
2857 | Box | Active | Signal Conditioner | Resistance, Temperature | - | 0 ~ 10kOhm, -210°C ~ 2320°C | - | - | 3000V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -40°C ~ 70°C |
|
2857-550I-TRANSDUCER I UI WAGO Corporation |
3,700 |
|
数据手册 |
2857 | Bag | Active | Signal Conditioner | Current | ±100A (Configurable) | 15 ~ 1kHz | Current, Voltage | ±20mA, ±10V (Configurable) | 3000V (Test) | - | 24VDC | DIN Rail | Spring Terminal | -40°C ~ 70°C |
|
857-979SUPPLY AND THROUGH MODULE; 2,50 WAGO Corporation |
3,284 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | 33VAC/DC | DIN Rail | Spring Terminal | -25°C ~ 70°C |
