电子元器件供应链解决方案商
上传BOM单
选择器开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 位置数量 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 安装类型 | 端接样式 | 面板开孔尺寸 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M6S-A20S1-110BSWITCH SELECT 2POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | Neon, Blue | 110 VAC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
M6S-A20S1-24EGSWITCH SELECT 2POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | LED, Green | 24 VDC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|

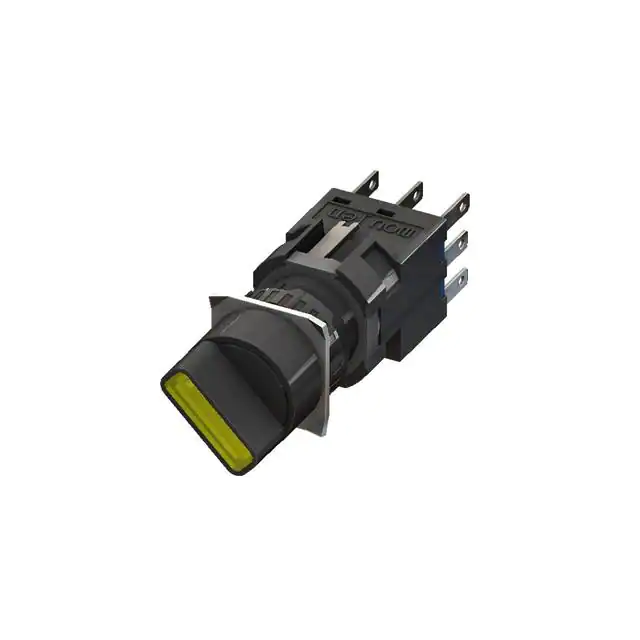

M6S-A20S2-YSWITCH SELECT 2POS DPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | DPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
M6S-A20S1-WSWITCH SELECT 2POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|

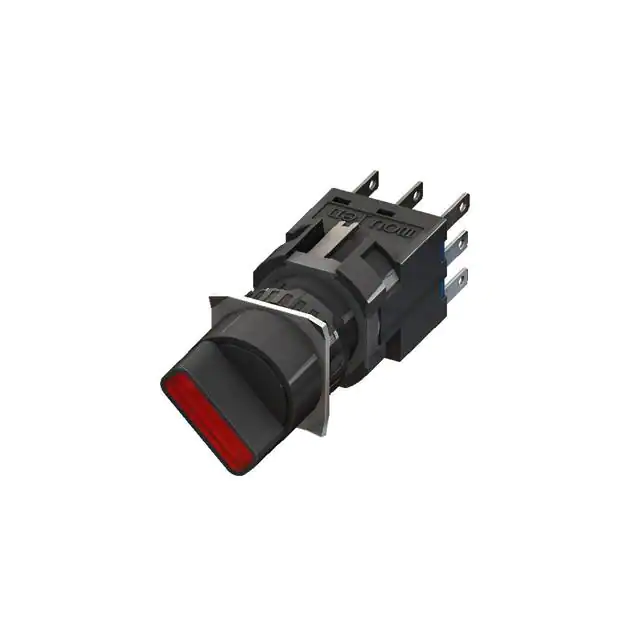

M6S-A20S1-RSWITCH SELECT 2POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
M6S-A20S1-06EOSWITCH SELECT 2POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | LED, Orange | 6 VDC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
|
M6S-A20S1-12EGSWITCH SELECT 2POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | LED, Green | 12 VDC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
|
M6S-A20S1-06EYSWITCH SELECT 2POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | LED, Yellow | 6 VDC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
|
M6S-A20S2-WSWITCH SELECT 2POS DPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | DPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
M6S-A20S1-WOSWITCH SELECT 2POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
