选择器开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 位置数量 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 照明 | 照明类型，颜色 | 照明电压（额定值） | 安装类型 | 端接样式 | 面板开孔尺寸 | 防护等级 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M6S-C31S2-24EYSWITCH SELECT 3POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 3 | On-On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | LED, Yellow | 24 VDC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
M6S-C32S2-12EBSWITCH SELECT 3POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 3 | On-On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | LED, Blue | 12 VDC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
|
M6S-C33S2-YSWITCH SELECT 3POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 3 | On-On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Non-Illuminated | - | - | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
M6S-C20S2-110GSWITCH SELECT 2POS DPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | DPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | Neon, Green | 110 VAC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
|
M6S-C33S2-24EGSWITCH SELECT 3POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 3 | On-On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | LED, Green | 24 VDC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
M6S-B33S2-220OSWITCH SELECT 3POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 3 | On-On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | Neon, Orange | 220 VAC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|

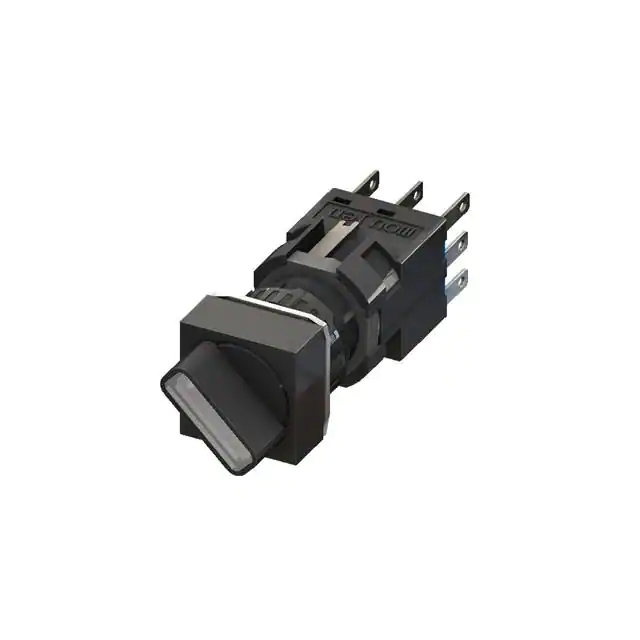

M6S-B32S2-06EWSWITCH SELECT 3POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 3 | On-On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | LED, White | 6 VDC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
|
|
M6S-B22S1-12EOSWITCH SELECT 2POS SPDT 2A 250V Moujen |
2,500 |
|
数据手册 |
M6 | Retail Package | Active | Standard | SPDT | 2 | On-On | 2A (AC), 400mA (DC) | 250 V | 125 V | Illuminated | LED, Orange | 12 VDC | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65 - Dust Tight, Water Resistant | UL94 V-0 | -25°C ~ 55°C |
