旋转电位器、变阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P16NM103MAB15F1POT 10K OHM 1W CERMET LINEAR |
4,615 |
|
数据手册 |
P16 | Box | Active | 10k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.370" (9.40mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
6639S-1-203POT 20K OHM 1W PLASTIC LINEAR |
2,665 |
|
数据手册 |
6639 | Bulk | Active | 20k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
284TBCF103A26A1POT 10K OHM 1/4W PLASTIC LINEAR |
3,043 |
|
数据手册 |
284 | Tray | Active | 10k | ±10% | 0.25W, 1/4W | None | 1.0 | Long Life | Linear | 1 | User Defined | - | 250° | Conductive Plastic | Solder Lug | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
3590P-2-104LPOT 100K OHM 2W WIREWOUND LINEAR |
3,199 |
|
数据手册 |
3590 | Bulk | Active | 100k | ±5% | 2W | None | 10.0 | - | Linear | 1 | Side Adjustment | ±50ppm/°C | 3600° | Wirewound | PC Pins | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3862C-206-103ALPOT 10K OHM 1W CERMET LINEAR |
3,551 |
|
数据手册 |
3862 | Bulk | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3590S-6-503LPOT 50K OHM 2W WIREWOUND LINEAR |
4,888 |
|
数据手册 |
3590 | Bulk | Active | 50k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.236" (6.00mm) | M9 x 0.375 | Panel Mount |
|
RV4LAYSA101APOT 100 OHM 2W CARBON LINEAR |
1,151 |
|
数据手册 |
RV4 | Bulk | Active | 100 | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
P16SNP103MAB15POT 10K OHM 1W CERMET LINEAR |
1,222 |
|
数据手册 |
P16S | Box | Active | 10k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
3549S-1AA-503APOT 50K OHM 2W WIREWOUND LINEAR |
2,434 |
|
数据手册 |
3549 | Tray | Active | 50k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

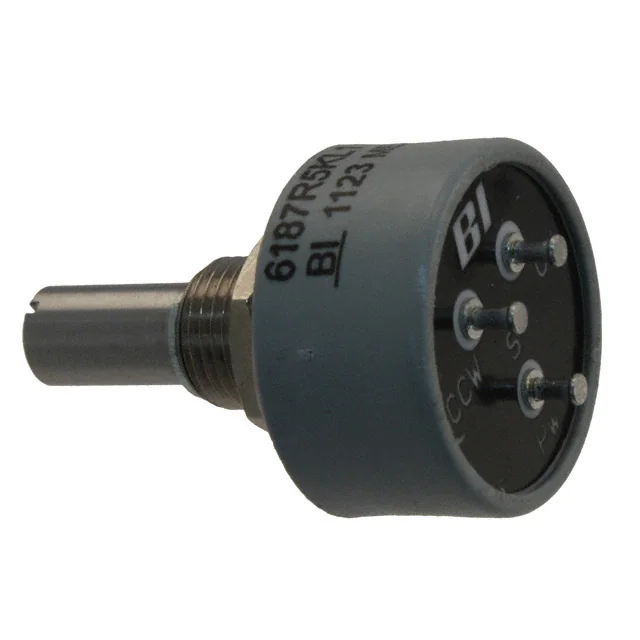

6187R5KL1.0LFPOT 5K OHM 1W PLASTIC LINEAR |
4,380 |
|
数据手册 |
6180 | Bulk | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | -400ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.874" (22.20mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
3-1625931-6POT 10 OHM 2W CERMET LINEAR |
2,439 |
|
数据手册 |
M, Citec | Bulk | Active | 10 | ±10% | 2W | None | 1.0 | - | Linear | 1 | Top Adjustment | 0.75% | 270° | Cermet | PC Pins | Round | 1.000" (25.40mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
3-1625931-2POT 22K OHM 2W CERMET LINEAR |
2,416 |
|
数据手册 |
M, Citec | Bulk | Active | 22k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Top Adjustment | 0.75% | 270° | Cermet | PC Pins | Round | 1.000" (25.40mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
2-1625931-9POT 2.2K OHM 2W CERMET LINEAR |
1,722 |
|
数据手册 |
M, Citec | Bulk | Active | 2.2k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Top Adjustment | 0.75% | 270° | Cermet | PC Pins | Round | 1.000" (25.40mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
M-22S10 5KPOT 5K OHM 2W WIREWOUND LINEAR |
3,792 |
|
数据手册 |
M-22 | Bulk | Active | 5k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
|
M-22S10 20KPOT 20K OHM 2W WIREWOUND LINEAR |
3,954 |
|
数据手册 |
M-22 | Bulk | Active | 20k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
|
3549S-1AA-103APOT 10K OHM 2W WIREWOUND LINEAR |
2,684 |
|
数据手册 |
3549 | Tray | Active | 10k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
M-13055KPOT 5K OHM 1W WIREWOUND LINEAR |
1,480 |
|
数据手册 |
M-13 | Bulk | Active | 5k | ±0.5% | 1W | None | 5.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.650" (16.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
|
3549S-1AA-102APOT 1K OHM 2W WIREWOUND LINEAR |
1,675 |
|
数据手册 |
3549 | Tray | Active | 1k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3549S-1AA-101APOT 100 OHM 2W WIREWOUND LINEAR |
3,371 |
|
数据手册 |
3549 | Tray | Active | 100 | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3549S-1AA-103BPOT 10K OHM 2W WIREWOUND LINEAR |
4,481 |
|
数据手册 |
3549 | Tray | Active | 10k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
