旋转电位器、变阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
91A1A-B28-A18LPOT 50K OHM 2W CERMET LINEAR |
2,636 |
|
数据手册 |
91 | Bulk | Active | 50k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
51AAA-B24-A13LPOT 5K OHM 1W CERMET LINEAR |
4,080 |
|
数据手册 |
Pro Audio 51 | Bulk | Active | 5k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
91A1A-B28-B13LPOT 5K OHM 1W PLASTIC LINEAR |
1,556 |
|
数据手册 |
91 | Bulk | Active | 5k | ±20% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3852A-282-503ALPOT 50K OHM 2W CERMET LINEAR |
1,719 |
|
数据手册 |
3852 | Bulk | Active | 50k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
95A1A-B28-A13LPOT 5K OHM 2W CERMET LINEAR |
3,930 |
|
数据手册 |
95 | Bulk | Active | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

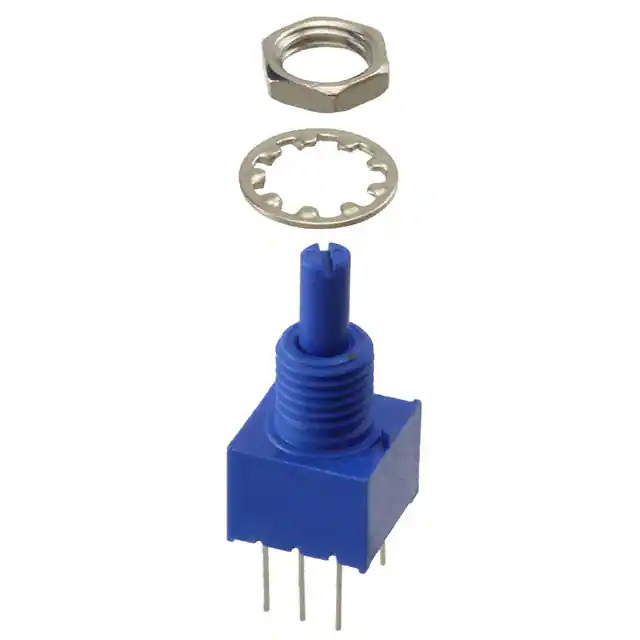

3310H-001-103LPOT 10K OHM 1/4W PLASTIC LINEAR |
1,446 |
|
数据手册 |
Pro Audio 3310 | Tube | Active | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 2 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3310H-003-104LPOT 100K OHM 1/4W PLASTIC LINEAR |
2,522 |
|
数据手册 |
Pro Audio 3310 | Bulk | Active | 100k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3852A-282-104ALPOT 100K OHM 2W CERMET LINEAR |
3,633 |
|
数据手册 |
3852 | Bulk | Active | 100k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

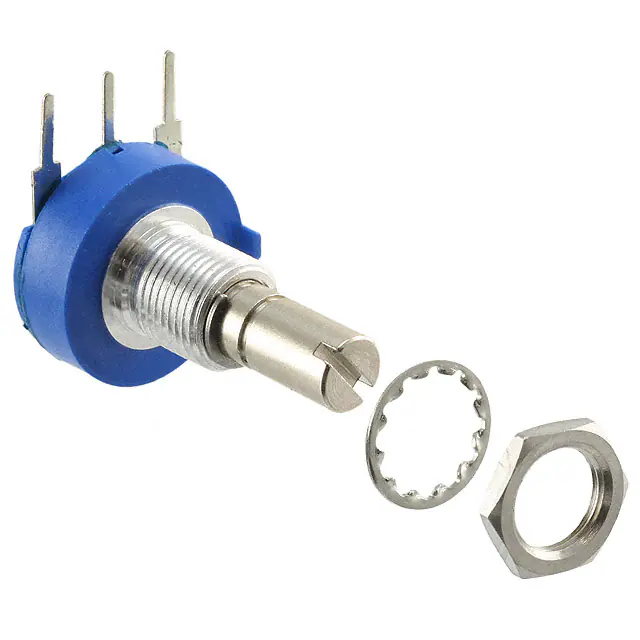

3852A-282-202ALPOT 2K OHM 2W CERMET LINEAR |
1,090 |
|
数据手册 |
3852 | Bulk | Active | 2k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P16NP103MAB15F1POT 10K OHM 1W CERMET LINEAR |
4,293 |
|
数据手册 |
P16 | Box | Active | 10k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
3590S-291-502LPOT 5K OHM 2W WIREWOUND LINEAR |
2,742 |
|
数据手册 |
3590 | Bulk | Active | 5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

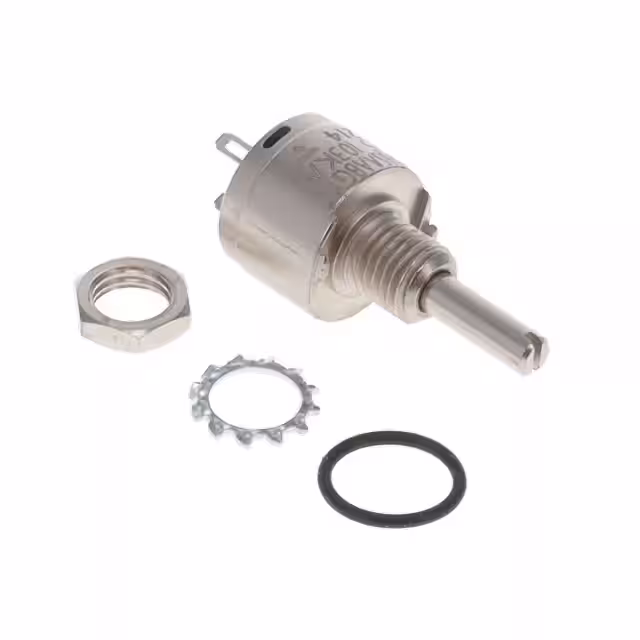

PRV6SAABGYB25103KAPOT 10K OHM 1.5W CERMET LINEAR |
3,067 |
|
数据手册 |
PRV6 | Box | Active | 10k | ±10% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.125" (3.18mm) | - | Panel Mount |
|
3862C-206-105ALPOT 1M OHM 1W CERMET LINEAR |
2,267 |
|
数据手册 |
3862 | Tray | Active | 1M | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
P11S1V0FGSY00103JAPOT 10K OHM 1W CERMET LINEAR |
1,431 |
|
数据手册 |
P11S | Box | Active | 10k | ±5% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|
RV4NAYSJ102APOT 1K OHM 2W CARBON LINEAR |
4,176 |
|
数据手册 |
RV4 | Bulk | Active | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 2.000" (50.80mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
3590S-2-201LPOT 200 OHM 2W WIREWOUND LINEAR |
3,154 |
|
数据手册 |
3590 | Bulk | Active | 200 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3590S-2-501LPOT 500 OHM 2W WIREWOUND LINEAR |
1,244 |
|
数据手册 |
3590 | Bulk | Active | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3590S-1-502LPOT 5K OHM 2W WIREWOUND LINEAR |
2,802 |
|
数据手册 |
3590 | Bulk | Active | 5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount |
|
|
3590S-1-501LPOT 500 OHM 2W WIREWOUND LINEAR |
4,339 |
|
数据手册 |
3590 | Bulk | Active | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.248" (6.30mm) | 3/8-32 | Panel Mount |
|
RV4LAYSA503APOT 50K OHM 2W CARBON LINEAR |
1,378 |
|
数据手册 |
RV4 | Bulk | Active | 50k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
