旋转电位器、变阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
51AAD-B28-D15LPOT 10K OHM 1/4W PLASTIC LOG |
599 |
|
数据手册 |
Pro Audio 51 | Bulk | Active | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Logarithmic | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
91A1A-B28-E15LPOT 10K OHM 1W PLASTIC LINEAR |
559 |
|
数据手册 |
91 | Tray | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
95A1A-B24-A20LPOT 100K OHM 2W CERMET LINEAR |
193 |
|
数据手册 |
95 | Bulk | Active | 100k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

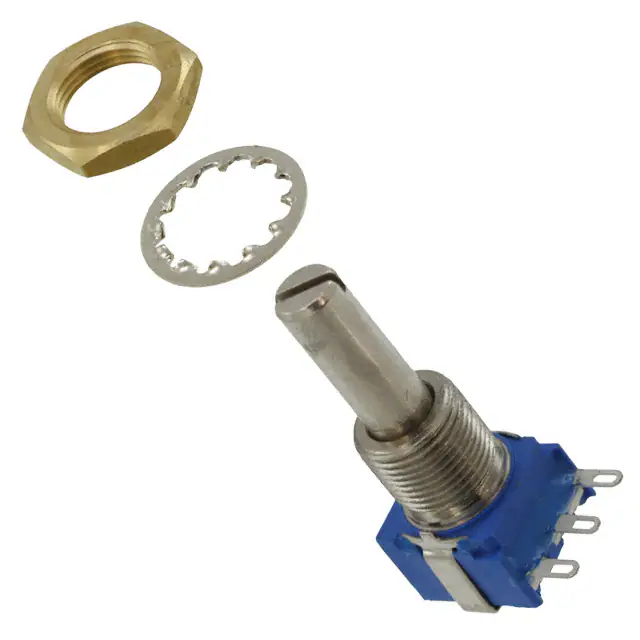

53RAA-R25-A15LPOT 10K OHM 1W CERMET LINEAR |
413 |
|
数据手册 |
Pro Audio 53 | Bulk | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 290° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
91A1A-B24-D15LPOT 10K OHM 1/2W PLASTIC LOG |
554 |
|
数据手册 |
91 | Bulk | Active | 10k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
026TB32R500B1B1POT 50 OHM 5W WIREWOUND LINEAR |
975 |
|
数据手册 |
026 | Bulk | Active | 50 | ±20% | 5W | Rotary, SPST | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 1.000" (25.40mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
026TB32R502B1B1POT 5K OHM 5W WIREWOUND LINEAR |
566 |
|
数据手册 |
026 | Bulk | Active | 5k | ±20% | 5W | Rotary, SPST | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 1.000" (25.40mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
026TB32R102B1B1POT 1K OHM 5W WIREWOUND LINEAR |
935 |
|
数据手册 |
026 | Bulk | Active | 1k | ±20% | 5W | Rotary, SPST | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 1.000" (25.40mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3851A-282-502BLPOT 5K OHM 1W PLASTIC LINEAR |
192 |
|
数据手册 |
3851 | Bulk | Active | 5k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±1000ppm/°C | 280° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3851A-282-102BLPOT 1K OHM 1W PLASTIC LINEAR |
170 |
|
数据手册 |
3851 | Bulk | Active | 1k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±1000ppm/°C | 280° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
PC16SV-10IP18-104A2020-I-TAPOT 100K OHM 1/5W CARBON LINEAR |
599 |
|
数据手册 |
PC-16 | Bulk | Active | 100k | ±20% | 0.2W, 1/5W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Flatted | 0.728" (18.50mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PDB185-GTR01-504A2POT 500K OHM 1/20W CARBON LOG |
921 |
|
数据手册 |
Pro Audio PDB185-GTR | Bulk | Active | 500k | ±20% | 0.05W, 1/20W | Push-Push, DPDT | 1.0 | - | Logarithmic | 1 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.748" (19.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
P260T-D1BS3CB100KPOT 100K OHM 1/2W PLASTIC LINEAR |
1,644 |
|
数据手册 |
P260 | Tray | Active | 100k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Top Adjustment | - | 295° | Conductive Plastic | PC Pins | Slotted | 0.787" (20.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
51CAD-E24-A15LPOT 10K OHM 1W CERMET LINEAR |
924 |
|
数据手册 |
Pro Audio 51 | Bulk | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

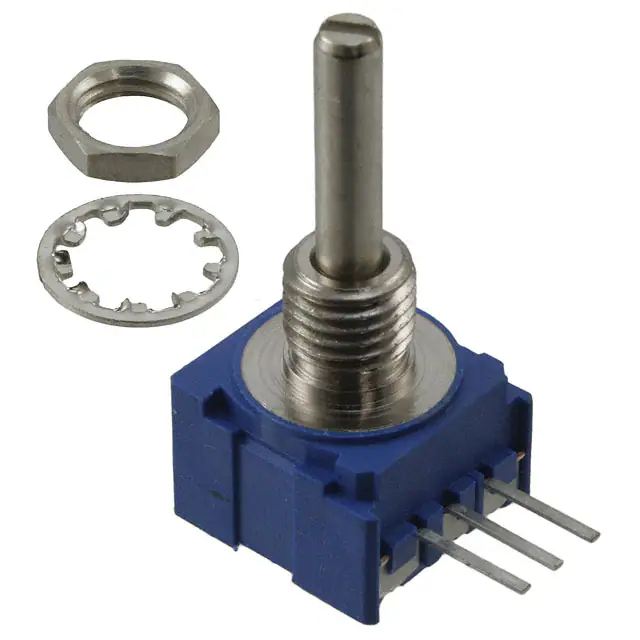

51CAD-E24-B18LPOT 50K OHM 1/2W PLASTIC LINEAR |
338 |
|
数据手册 |
Pro Audio 51 | Bulk | Active | 50k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

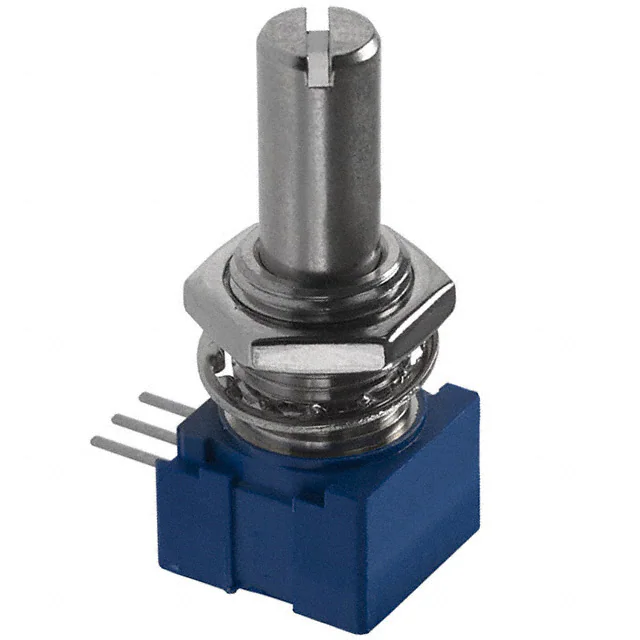

51AAD-B24-A15LPOT 10K OHM 1W CERMET LINEAR |
187 |
|
数据手册 |
Pro Audio 51 | Bulk | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

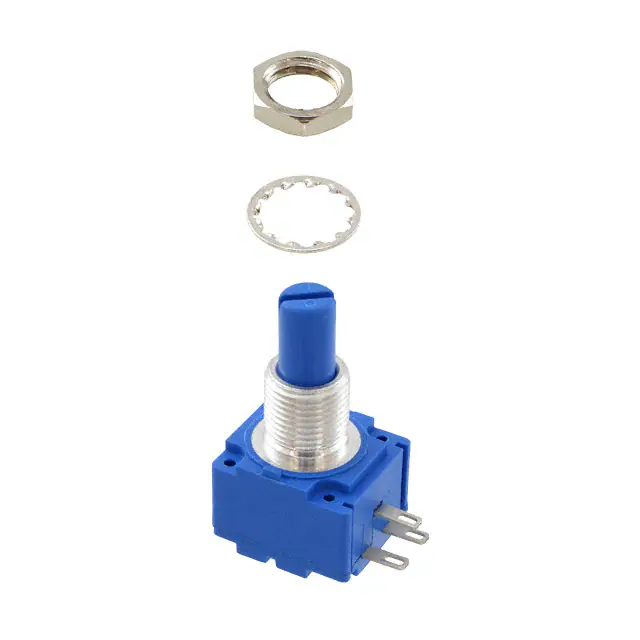

53CAD-E16-B20LPOT 100K OHM 1/2W PLASTIC LINEAR |
275 |
|
数据手册 |
Pro Audio 53 | Bulk | Active | 100k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±1000ppm/°C | 290° | Conductive Plastic | Solder Lug | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

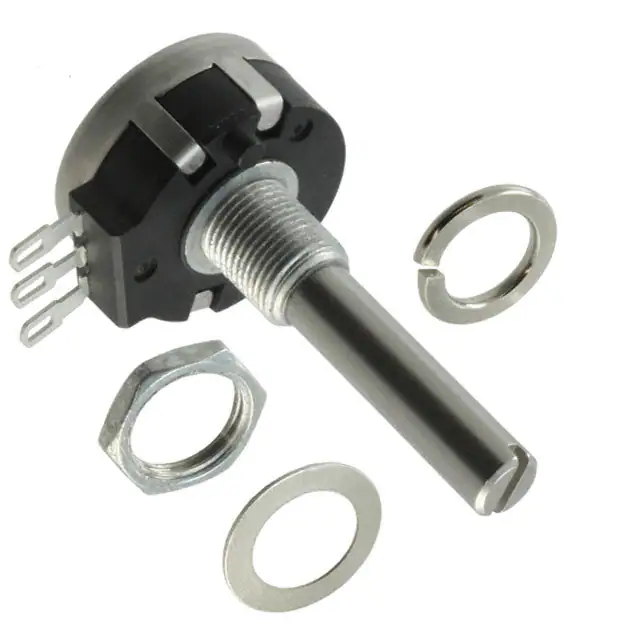

P232-DEC35BR5KPOT 5K OHM 1/2W PLASTIC LINEAR |
737 |
|
数据手册 |
P232 | Tray | Active | 5k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | - | 300° | Conductive Plastic | Solder Lug | Slotted | 1.378" (35.00mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|

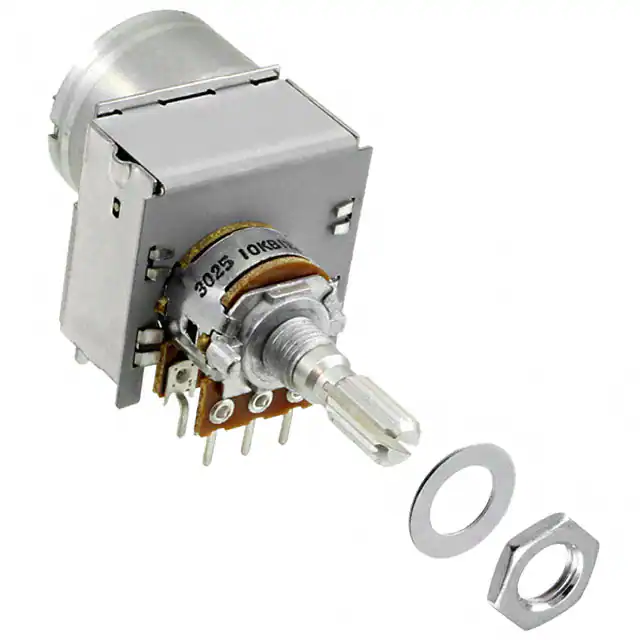

PRM162-K420K-103B1POT 10K OHM 1/10W CARBON LINEAR |
781 |
|
数据手册 |
Pro Audio PRM16 | Bulk | Active | 10k | ±20% | 0.1W, 1/10W | None | 1.0 | Motorized | Linear | 2 | Side Adjustment | - | 300° | Carbon | PC Pins | Knurled and Slotted | 0.787" (20.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|

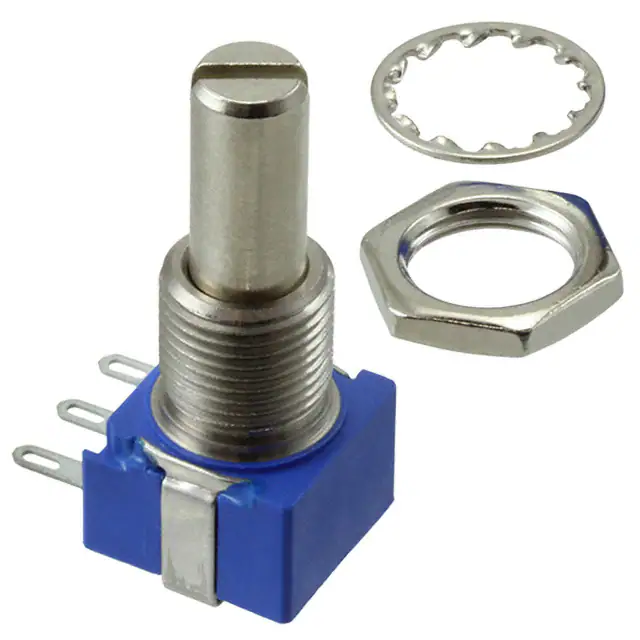

53AAA-B28-A15LPOT 10K OHM 1W CERMET LINEAR |
665 |
|
数据手册 |
Pro Audio 53 | Tray | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 290° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
