旋转电位器、变阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
026TB32R501B1B1POT 500 OHM 5W WIREWOUND LINEAR |
954 |
|
数据手册 |
026 | Bulk | Active | 500 | ±20% | 5W | Rotary, SPST | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 1.000" (25.40mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
270X232A103B1B1POT 10K OHM 1/4W CARBON LINEAR |
437 |
|
数据手册 |
270 | Bulk | Active | 10k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | - | Linear | 1 | Side Adjustment | - | 315° | Carbon | PC Pins, Board Locks | Round | 1.000" (25.40mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

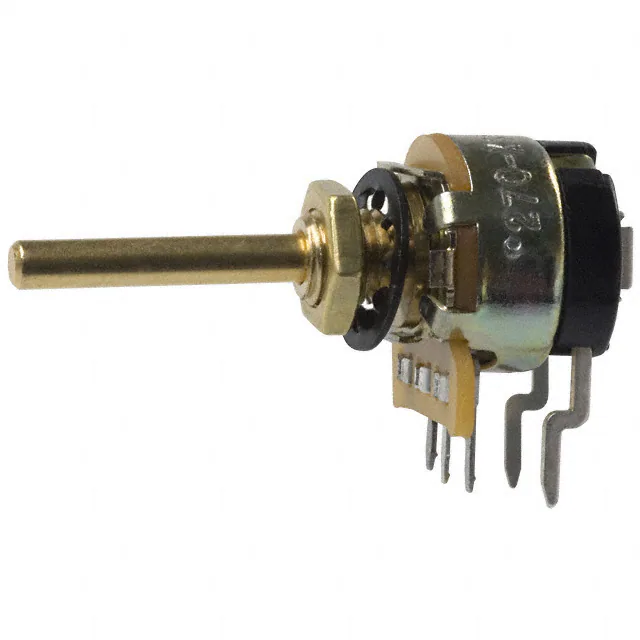

270X232A253B1B1POT 25K OHM 1/4W CARBON LINEAR |
1,409 |
|
数据手册 |
270 | Bulk | Active | 25k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | - | Linear | 1 | Side Adjustment | - | 315° | Carbon | PC Pins, Board Locks | Round | 1.000" (25.40mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

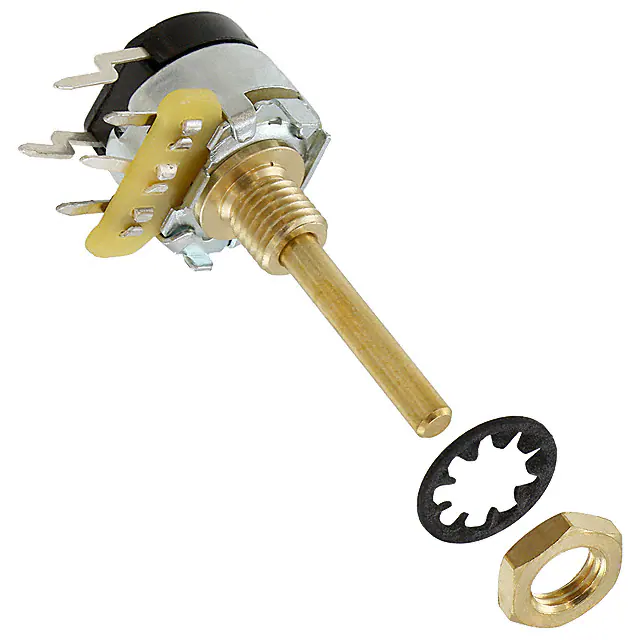

270X232A103B2B1POT 10K OHM 1/4W CARBON LOG |
539 |
|
数据手册 |
270 | Bulk | Active | 10k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | - | Logarithmic | 1 | Side Adjustment | - | 315° | Carbon | PC Pins, Board Locks | Round | 1.000" (25.40mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
026TB32R5A0B1B1POT 5 OHM 5W WIREWOUND LINEAR |
298 |
|
数据手册 |
026 | Bulk | Active | 5 | ±20% | 5W | Rotary, SPST | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 1.000" (25.40mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
026TB32R103B1B1POT 10K OHM 5W WIREWOUND LINEAR |
266 |
|
数据手册 |
026 | Bulk | Active | 10k | ±20% | 5W | Rotary, SPST | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 1.000" (25.40mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
026TB32R100B1B1POT 10 OHM 5W WIREWOUND LINEAR |
943 |
|
数据手册 |
026 | Bulk | Active | 10 | ±20% | 5W | Rotary, SPST | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 1.000" (25.40mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
T21AC-M0607-103A2020-TAPOT 10K OHM 1/4W CARBON LINEAR |
490 |
|
数据手册 |
T-21 | Bulk | Active | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | ±300ppm/°C | 310° | Carbon | Solder Lug | Round | 2.362" (60.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
T21AH-M0607-505A3030-TAPOT 5M OHM 1/4W CARBON LINEAR |
478 |
|
数据手册 |
T-21 | Bulk | Active | 5M | ±30% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 310° | Carbon | PC Pins | Round | 2.362" (60.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

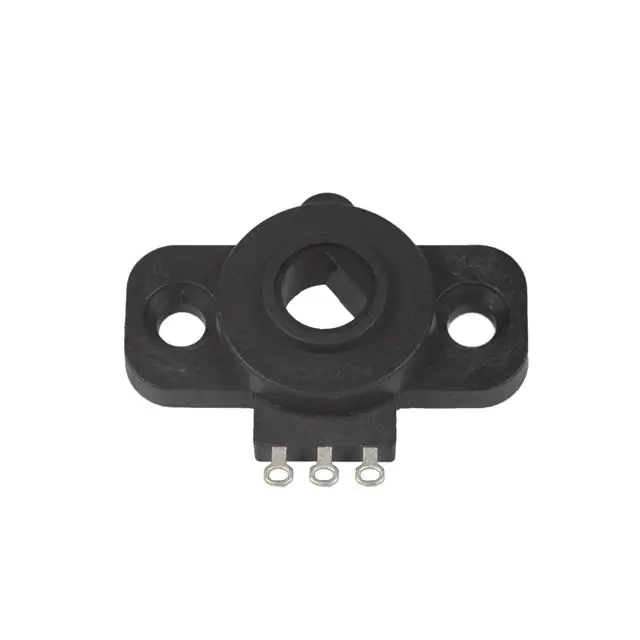

PHS21SB10KPOT 10K OHM 1/2W PLASTIC LINEAR |
2,128 |
|
数据手册 |
PHS21 | Bulk | Active | 10k | ±20% | 0.5W, 1/2W | - | 1.0 | - | Linear | 1 | User Defined | - | 360° | Conductive Plastic | Solder Lug | Flatted | - | 0.319" (8.10mm) | - | Chassis Mount |
|

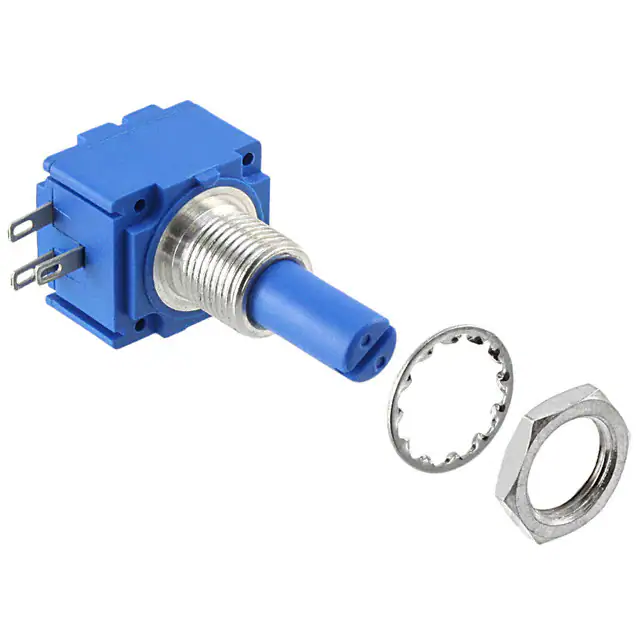

95A1A-B24-A15LPOT 10K OHM 2W CERMET LINEAR |
4,162 |
|
数据手册 |
95 | Bulk | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
51CAD-E24-A20LPOT 100K OHM 1W CERMET LINEAR |
4,838 |
|
数据手册 |
Pro Audio 51 | Bulk | Active | 100k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
27ESA103MMF50NPOT 10K OHM 0.4W CARBON LINEAR |
666 |
|
数据手册 |
23, Citec | Bulk | Active | 10k | ±20% | 0.4W | None | 1.0 | - | Linear | 2 | User Defined | 5% | 300° | Carbon | Solder Lug | Flatted | 1.969" (50.00mm) | 0.250" (6.35mm) | - | Panel Mount |
|
91A1A-B28-A13LPOT 5K OHM 2W CERMET LINEAR |
342 |
|
数据手册 |
91 | Bulk | Active | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
91A1A-B28-A10LPOT 1K OHM 2W CERMET LINEAR |
259 |
|
数据手册 |
91 | Bulk | Active | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
RK097221005CPOT 10K OHM 1/20W LOGARITHMIC |
494 |
|
数据手册 |
RK097 | Tray | Active | 10k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | - | 300° | - | PC Pins | Flatted | 0.984" (25.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|

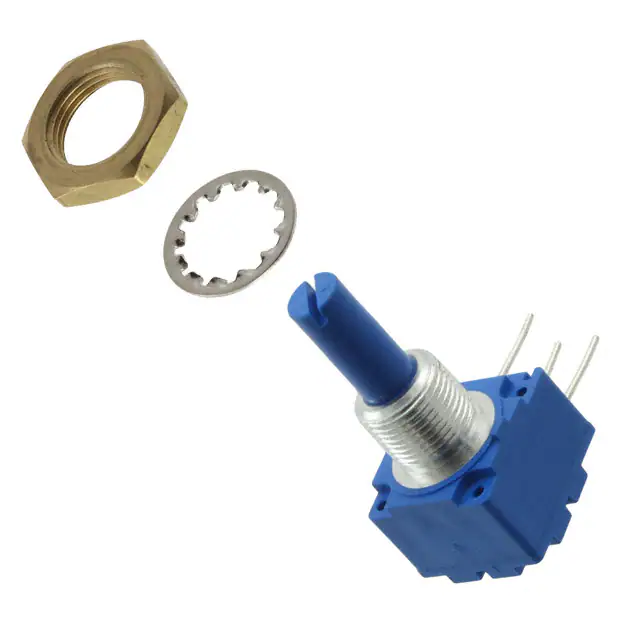

93R1A-R22-A15LPOT 10K OHM 2W CERMET LINEAR |
265 |
|
数据手册 |
93 | Bulk | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.866" (22.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
93R1A-R22-A08LPOT 500 OHM 2W CERMET LINEAR |
296 |
|
数据手册 |
93 | Bulk | Active | 500 | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.866" (22.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
93R1A-R22-A13LPOT 5K OHM 2W CERMET LINEAR |
143 |
|
数据手册 |
93 | Bulk | Active | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.866" (22.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
P232-SFC35BR5KPOT 5K OHM 1/2W PLASTIC LINEAR |
1,738 |
|
数据手册 |
P232 | Tray | Active | 5k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | - | 300° | Conductive Plastic | Solder Lug | Flatted | 1.378" (35.00mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
