直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JWE0624D12DC DC CONVERTER +/-12V 6W XP Power |
2,087 |
|
数据手册 |
JWE06 (6W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 16-DIP | - | - | 62368-1 |
|
JTC0424D12DC DC CONVERTER +/-12V 4W XP Power |
3,193 |
|
数据手册 |
JTC (4W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 167mA | 4 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | - | - | - | - |
|
JCJ1012S12DC DC CONVERTER 12V 10W XP Power |
4,105 |
|
数据手册 |
JCJ (10W) | 11-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 833mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 100°C | 87% | - | - | Through Hole | - | - | - | 62368-1 |
|
JTR1024S12DC DC CONVERTER 12V 10W XP Power |
3,417 |
|
数据手册 |
JTR10 (10W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 833mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 88°C (With Derating) | 87% | - | - | Through Hole | - | - | CB, UL | - |
|
|
JCJ1024S3V3DC DC CONVERTER 3.3V 10W XP Power |
4,518 |
|
数据手册 |
JCJ (10W) | 11-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 3A | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 100°C | 85% | - | - | Through Hole | - | - | - | 62368-1 |
|

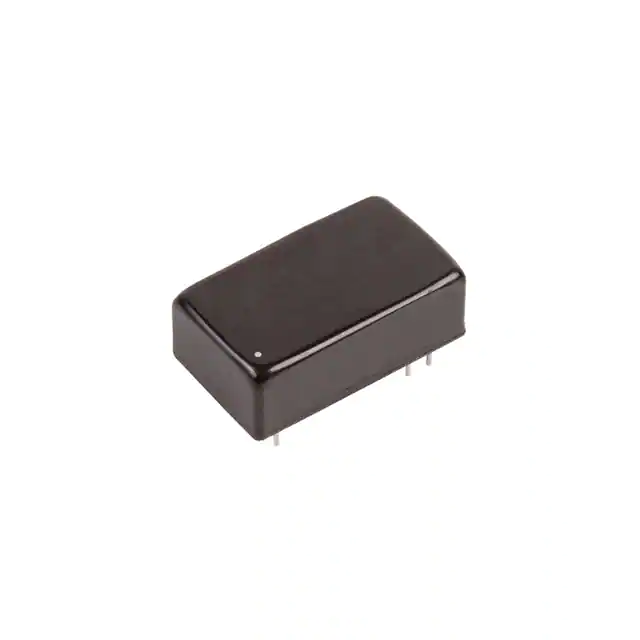

JSE0812S24DC DC CONVERTER 24V 8W XP Power |
2,367 |
|
数据手册 |
JSE08 (8W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 335mA | 8 W | 1.5 kV | ITE (Commercial) | SCP, UVLO | -40°C ~ 105°C | 85% | - | - | Through Hole | - | - | - | 62368-1 |
|
ISU0305D15-TRDC DC CONVERTER +/-15V 3W XP Power |
3,485 |
|
数据手册 |
ISU03 (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 4.5V | 12V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 81% | - | - | Surface Mount | - | - | CE, UKCA, UL | 62368-1 |
|
|
ISU0305D15DC DC CONVERTER +/-15V 3W XP Power |
2,873 |
|
数据手册 |
ISU03 (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 12V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 81% | - | - | Surface Mount | - | - | CE, UKCA, UL | 62368-1 |
|
JMR0312S12DC/DC CONVERTER 12V 3.5W XP Power |
2,051 |
|
数据手册 |
JMR03 (3.5W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 12V | - | - | - | 292mA | 3.5 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 90°C (With Derating) | 83% | - | - | Through Hole | - | Enable, Active High | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR0312S05DC/DC CONVERTER 5V 3.5W XP Power |
3,585 |
|
数据手册 |
JMR03 (3.5W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 700mA | 3.5 W | 5 kV | ITE (Commercial), Medical | Remote On/Off | -40°C ~ 90°C (With Derating) | 78% | - | - | Through Hole | - | Enable, Active High | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
