直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JCH1024D12DC DC CONVERTER +/-12V 10W XP Power |
2,961 |
|
数据手册 |
JCH (10W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 100°C | 84% | - | - | Through Hole | - | - | - | 62368-1 |
|
IEU0305D12DC DC CONVERTER +/-12V 3W XP Power |
4,611 |
|
数据手册 |
IEU03 (3W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 10V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C | 84% | - | - | Through Hole | - | - | - | 62368-1 |
|
|
IEU0312D15DC DC CONVERTER +/-15V 3W XP Power |
3,302 |
|
数据手册 |
IEU03 (3W) | 8-DIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 95°C | 87% | - | - | Through Hole | - | - | - | 62368-1 |
|
ICZ0924S15DC DC CONVERTER 15V 9W XP Power |
4,248 |
|
数据手册 |
ICZ (9W) | 12-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 600mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 12-SIP | - | - | 62368-1 |
|
|
ICZ0924S24DC DC CONVERTER 24V 9W XP Power |
4,324 |
|
数据手册 |
ICZ (9W) | 12-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 375mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 12-SIP | - | - | 62368-1 |
|
|
ICZ0924S12DC DC CONVERTER 12V 9W XP Power |
3,580 |
|
数据手册 |
ICZ (9W) | 12-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 750mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 12-SIP | - | - | 62368-1 |
|
|
ICZ0912S12DC DC CONVERTER 12V 9W XP Power |
3,313 |
|
数据手册 |
ICZ (9W) | 12-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 750mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 12-SIP | - | - | 62368-1 |
|
ISU0205S24-TRDC DC CONVERTER 24V 2W XP Power |
2,099 |
|
数据手册 |
ISU02 (2W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 12V | 24V | - | - | - | 83mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 81% | - | - | Surface Mount | - | - | CE, UKCA, UL | 62368-1 |
|
|
ISU0205S24DC DC CONVERTER 24V 2W XP Power |
4,610 |
|
数据手册 |
ISU02 (2W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 12V | 24V | - | - | - | 83mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 81% | - | - | Surface Mount | - | - | CE, UKCA, UL | 62368-1 |
|

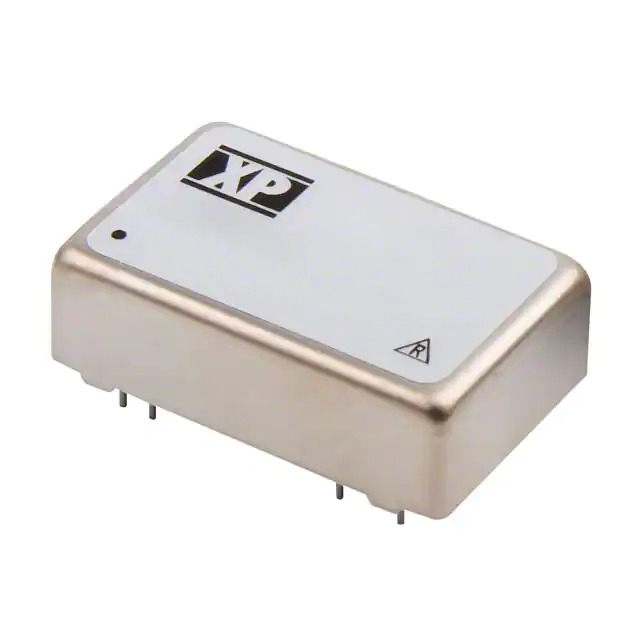

JTC0424S3V3DC DC CONVERTER 3.3V 4W XP Power |
2,926 |
|
数据手册 |
JTC (4W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.2A | 4 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 75% | - | - | Through Hole | - | - | - | - |
