直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ITQ2403SADC DC CONVERTER 3.3V 6W XP Power |
4,637 |
|
数据手册 |
ITQ (6W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.5A | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 79% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
|
ITQ2424SADC DC CONVERTER 24V 6W XP Power |
3,304 |
|
数据手册 |
ITQ (6W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 250mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 87% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
|
ITQ2412SDC DC CONVERTER +/-12V 6W XP Power |
1,240 |
|
数据手册 |
ITQ (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 86% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
.jpg)
|

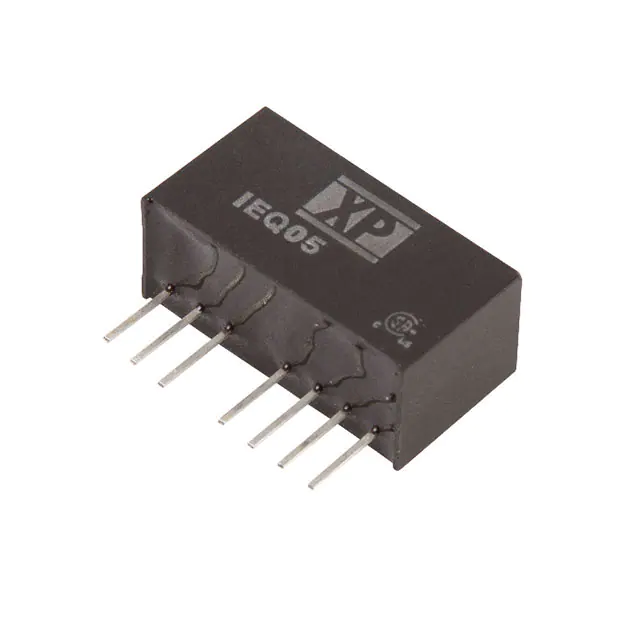

IEQ0512S12DC DC CONVERTER 12V 5W XP Power |
4,414 |
|
数据手册 |
IEQ05 (5W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 12V | - | - | - | 417mA | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 83% | - | - | Through Hole | 8-SIP | Enable, Active Low | - | 62368-1 |
|
|
IEQ0524S24DC DC CONVERTER 24V 5W XP Power |
3,360 |
|
数据手册 |
IEQ05 (5W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 209mA | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 83% | - | - | Through Hole | 8-SIP | Enable, Active Low | - | 62368-1 |
|
JCA0324D02DC DC CONVERTER +/-12V 3W XP Power |
3,387 |
|
数据手册 |
JCA (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 130mA, 130mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 77% | - | - | Through Hole | - | - | - | 62368-1 |
|
ISM0224S05DC DC CONVERTER 5V 2W XP Power |
3,043 |
|
数据手册 |
ISM02 (2W) | 16-SMD Module, 6 Leads | Bulk | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 4 kV | ITE (Commercial), Medical | SCP | -25°C ~ 105°C (With Derating) | 66% | - | - | Surface Mount | - | - | CB, CE, UKCA, UL | 60601-1; 60950-1; 62368-1 |
|
ISM0224S05-TRDC DC CONVERTER 5V 2W XP Power |
2,485 |
|
数据手册 |
ISM02 (2W) | 16-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 4 kV | ITE (Commercial), Medical | SCP | -25°C ~ 105°C (With Derating) | 66% | - | - | Surface Mount | - | - | CB, CE, UKCA, UL | 60601-1; 60950-1; 62368-1 |
|
|
IEQ0524D12DC DC CONVERTER +/-12V 5W XP Power |
1,524 |
|
数据手册 |
IEQ05 (5W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 209mA, 209mA | 5 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 82% | - | - | Through Hole | 8-SIP | Enable, Active Low | - | 62368-1 |
|
JWE0648S05DC DC CONVERTER 5V 6W XP Power |
1,628 |
|
数据手册 |
JWE06 (6W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | 16-DIP | - | - | 62368-1 |
