直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSF500DC DC CONVERTER 36V 1008W XP Power |
3,027 |
|
数据手册 |
DSF (500W) | Half Brick | Bulk | Active | Isolated Module | 1 | 10V | 33V | 36V | - | - | - | 28A | 1008 W | 500 V | ITE (Commercial) | OTP | -40°C ~ 100°C | 98% | - | - | Through Hole | Half Brick | - | - | - |
|
MTC15028S28DC DC CONVERTER 28V 150W XP Power |
4,692 |
|
数据手册 |
MTC (150W) | 12-DIP Module | Box | Active | Isolated Module | 1 | 10V | 40V | 28V | - | - | - | 5.35A | 150 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C | 86% | - | - | Through Hole | - | Enable, Active High | - | - |
|

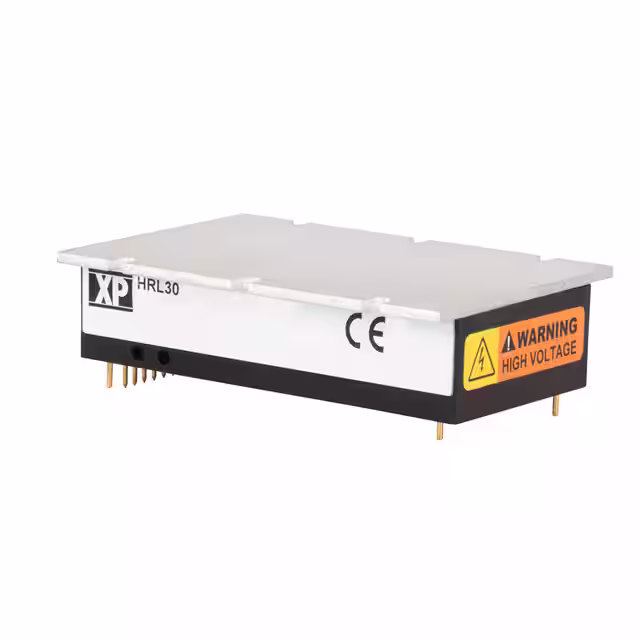

HRL3024S1K0PDC DC CONVERTER 1000V 30W XP Power |
1,992 |
|
数据手册 |
HRL30 (30W) | 14-DIP Module | Tray | Active | High Voltage - Non-Isolated Module | 1 | 22V | 30V | 1000V | - | - | - | 30mA | 30 W | - | ITE (Commercial) | Adjustable Output, Baseplate | -40°C ~ 70°C | 85% | - | - | Through Hole | - | - | CE, UKCA, UL | 62368-1 |
|
IA0503SDC DC CONVERTER +/-3.3V 1W XP Power |
3,354 |
|
数据手册 |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 3.3V | -3.3V | - | - | 151mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 65% | - | - | Through Hole | - | - | - | 62368-1 |
|
IML0224S05DC DC CONVERTER 5V 2W XP Power |
2,046 |
|
数据手册 |
IML02 (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 4 kV | Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - |
|
IE0303SHDC DC CONVERTER 3.3V 1W XP Power |
2,228 |
|
数据手册 |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 300mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71% | - | - | Through Hole | - | - | - | - |
|
IH0509SDC DC CONVERTER +/-9V 2W XP Power |
4,691 |
|
数据手册 |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | - | - |
|
IR0509SDC DC CONVERTER +/-9V 3W XP Power |
3,164 |
|
数据手册 |
IR (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 167mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | - | - | - | - |
|
|
IH2424SHDC DC CONVERTER +/-24V 2W XP Power |
1,453 |
|
数据手册 |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 24V | -24V | - | - | 42mA, 42mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|
IU2409SADC DC CONVERTER 9V 2W XP Power |
4,009 |
|
数据手册 |
IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 9V | - | - | - | 222mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | 62368-1 |
