直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JCA0324S12DC DC CONVERTER 12V 3W XP Power |
135 |
|
数据手册 |
JCA (3W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 260mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 77% | - | - | Through Hole | - | - | - | 62368-1 |
|

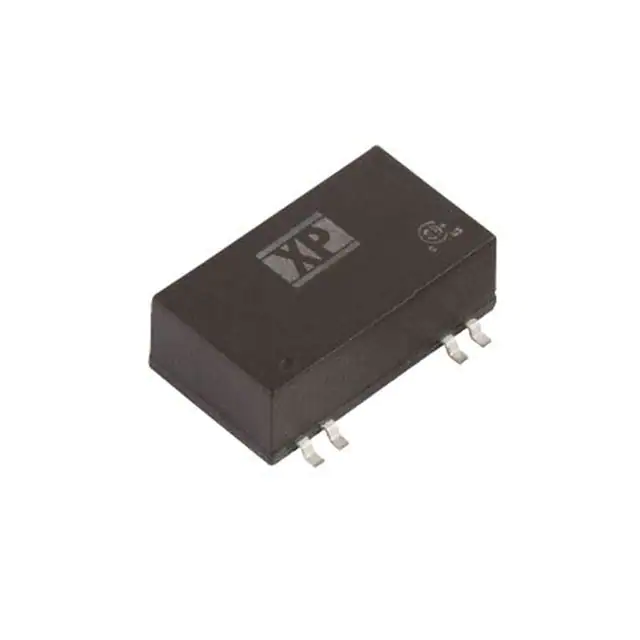

ISM0212D15-TRDC DC CONVERTER +/-15V 2W XP Power |
155 |
|
数据手册 |
ISM02 (2W) | 16-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 4 kV | ITE (Commercial), Medical | SCP | -25°C ~ 105°C (With Derating) | 75% | - | - | Surface Mount | - | - | CB, CE, UKCA, UL | 60601-1; 60950-1; 62368-1 |
|
ISU0348S05-TRDC DC CONVERTER 5V 3W XP Power |
149 |
|
数据手册 |
ISU03 (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 80% | - | - | Surface Mount | - | - | CE, UKCA, UL | 62368-1 |
|

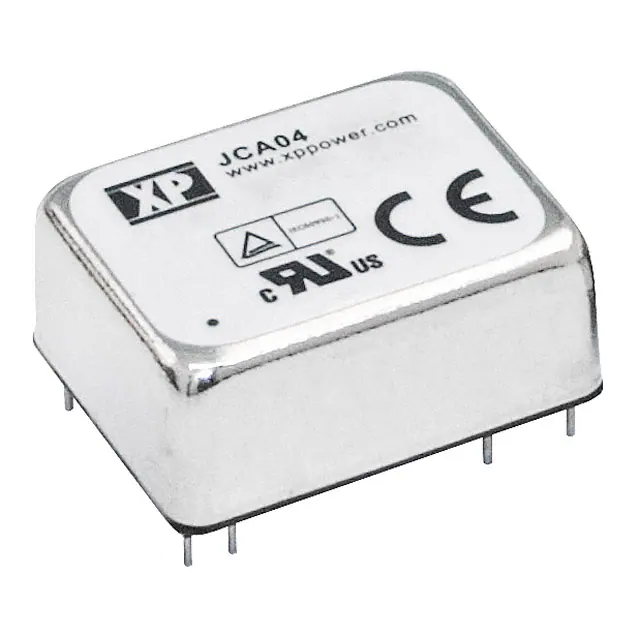

JCA0424S05DC DC CONVERTER 5V 4W XP Power |
190 |
|
数据手册 |
JCA (4W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 800mA | 4 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 80% | - | - | Through Hole | - | - | - | 62368-1 |
|
JTM2024D05DC DC CONVERTER +/-5V 20W XP Power |
1,362 |
|
数据手册 |
JTM (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 2A, 2A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 89% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|
IML0215S3V3DC DC CONVERTER 3.3V 2W XP Power |
267 |
|
数据手册 |
IML02 (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 3.3V | - | - | - | 600mA | 2 W | 4 kV | Medical | SCP | -40°C ~ 85°C | 76% | - | - | Through Hole | - | - | - | - |
|
ITV2412SDC DC CONVERTER +/-12V 1W XP Power |
203 |
|
数据手册 |
ITV (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 41.6mA, 41.6mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | - | - |
|

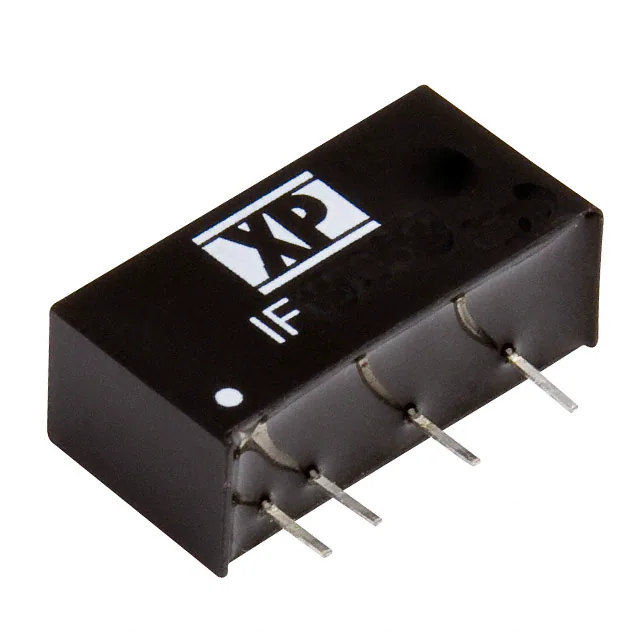

IF2412SDC DC CONVERTER 12V 1W XP Power |
109 |
|
数据手册 |
IF (1W) | 7-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 68% | - | - | Through Hole | - | - | - | - |
|

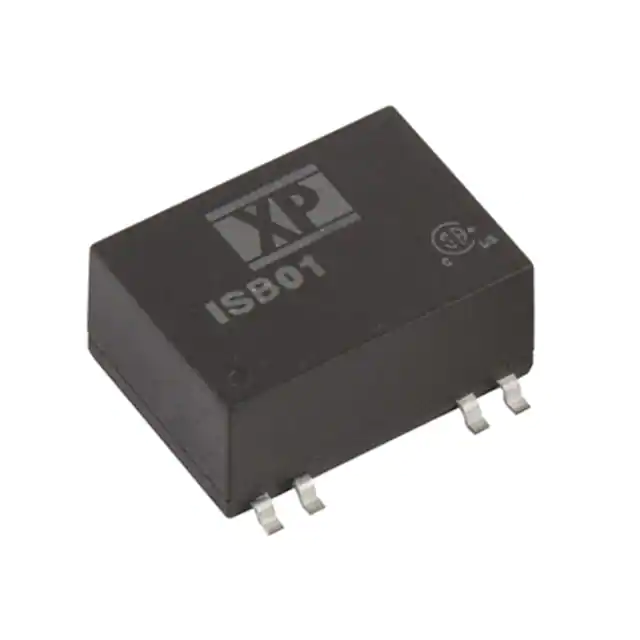

ISB0124S05-TRDC DC CONVERTER 5V 1W XP Power |
507 |
|
数据手册 |
ISB01 (1W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 79% | - | - | Surface Mount | - | Enable, Active Floating | CB, CE, UKCA, UL | 62368-1 |
|
ISB0124S05DC DC CONVERTER 5V 1W XP Power |
307 |
|
数据手册 |
ISB01 (1W) | 14-SMD Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 79% | - | - | Surface Mount | - | Enable, Active Floating | CB, CE, UKCA, UL | 62368-1 |
