光电中断器 - 槽型 - 晶体管输出
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 感应距离 | 感应方法 | 输出配置 | 电流 - 直流正向（If）（最大值） | 电流 - 集电极 (Ic)（最大值） | 电压 - 集电极发射极击穿（最大值） | 响应时间 | 工作温度 | 等级 | 认证 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OPB380L51ZSENSOR OPT SLOT PHOTOTRAN PCB MT |
200 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|
OPB390P51ZSENSOR OPT SLOT PHOTOTRANS MODUL |
197 |
|
数据手册 |
- | Module, Pre-Wired | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|
OPB881T51ZSENSOR OPT SLOT PHOTOTRANS MODUL |
200 |
|
数据手册 |
- | Module, Pre-Wired | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|
OPB315LSENSOR OPT SLOT PHOTOTRANS MODUL |
126 |
|
数据手册 |
- | Slotted Module, 4-Lead Dual Row | Bulk | Active | 0.900" (22.86mm) | Through-Beam | Phototransistor | 50 mA | 1 mA | 30 V | - | -40°C ~ 80°C | - | - | Chassis Mount |
|
|
OPB880T11ZSENSOR OPT SLOT PHOTOTRANS MODUL |
133 |
|
数据手册 |
- | Module, Pre-Wired | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|
|
B4192PTIRM2B000113U19301.9(L)X1.4(W)X0.65(H)MM |
2,103 |
|
数据手册 |
- | 4-SMD, No Lead | Cut Tape (CT) | Active | - | Reflective | Phototransistor | 100 mA | 20 mA | 30 V | 3µs | -40°C ~ 85°C | - | - | Surface Mount |
|
|
H22A6TRANSISTOR OUTPUT SLOTTED SWITCH |
3,215 |
|
数据手册 |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 60 mA | - | 55 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
MOC70P2TRANSISTOR OUTPUT SLOTTED SWITCH |
32,707 |
|
数据手册 |
- | Slotted, PC Pins | Tube | Obsolete | 0.200" (5.08mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 20µs, 80µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
MOC70P1TRANSISTOR OUTPUT SLOTTED SWITCH |
1,210 |
|
数据手册 |
- | Slotted, PC Pins | Tube | Obsolete | 0.200" (5.08mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 20µs, 80µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
OPS691SENSOR OPT SLOT PHOTOTRANS RAD |
4,157 |
|
数据手册 |
- | Radial | Bulk | Active | - | Through-Beam | Phototransistor | 50 mA | - | 30 V | - | -40°C ~ 100°C | - | - | Through Hole |
|
TCPT1600X01SENSOR OPT SLOT PHOTOTRANS MODUL |
849 |
|
数据手册 |
- | Module, No Lead, Slot Type | Tape & Reel (TR) | Discontinued at Digi-Key | 0.118" (3mm) | Through-Beam | Phototransistor | 25 mA | 20 mA | 20 V | 9µs, 16µs | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount |
|

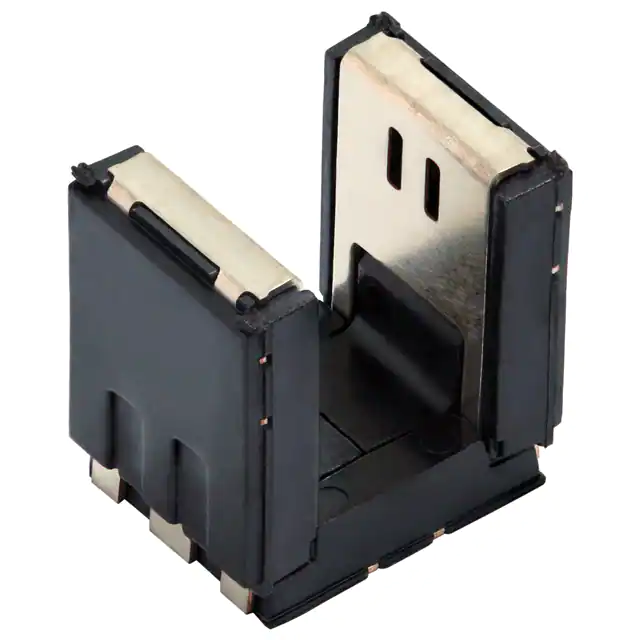

TCUT1600X01SENSOR OPT SLOT PHOTOTRANS MODUL |
5,287 |
|
数据手册 |
- | Module, No Lead, Slot Type | Tape & Reel (TR) | Discontinued at Digi-Key | 0.118" (3mm) | Through-Beam | Phototransistor | 25 mA | 20 mA | 20 V | 9µs, 16µs | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount |
|
QCK5TROPTOELECTRONIC DEVICE |
6,234 |
|
数据手册 |
- | 4-SMD, Gull Wing | Bulk | Obsolete | 0.157" (4mm) | Through-Beam | Phototransistor | 50 mA | - | 30 V | 8µs, 50µs | -40°C ~ 100°C | - | - | Surface Mount |
|
TCUT1630X01SENSOR OPT SLOT PHOTOTRANS MODUL |
997 |
|
数据手册 |
- | Module, No Lead, Slot Type | Tape & Reel (TR) | Discontinued at Digi-Key | 0.118" (3mm) | Through-Beam | Phototransistor | 25 mA | 20 mA | 20 V | 9µs, 16µs | -40°C ~ 105°C (TA) | Automotive | AEC-Q101 | Surface Mount |
|
|
OPB860T55SENSOR OPT SLOT PHOTOTRAN PCB MT |
4,686 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|
|
OPB867L55SENSOR OPT SLOT PHOTOTRAN PCB MT |
1,960 |
|
数据手册 |
- | PCB Mount | Bulk | Obsolete | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|
|
OPB861N55SENSOR OPT SLOT PHOTOTRANS MODUL |
2,743 |
|
数据手册 |
- | Module, Pre-Wired | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|
TCUT1800X01SENSOR OPT SLOT PHOTOTRANS MODUL |
222 |
|
数据手册 |
- | Module, No Lead, Slot Type | Tape & Reel (TR) | Discontinued at Digi-Key | 0.118" (3mm) | Through-Beam | Phototransistor | 25 mA | 20 mA | 20 V | 9µs, 16µs | -40°C ~ 105°C (TA) | Automotive | AEC-Q101 | Surface Mount |
|

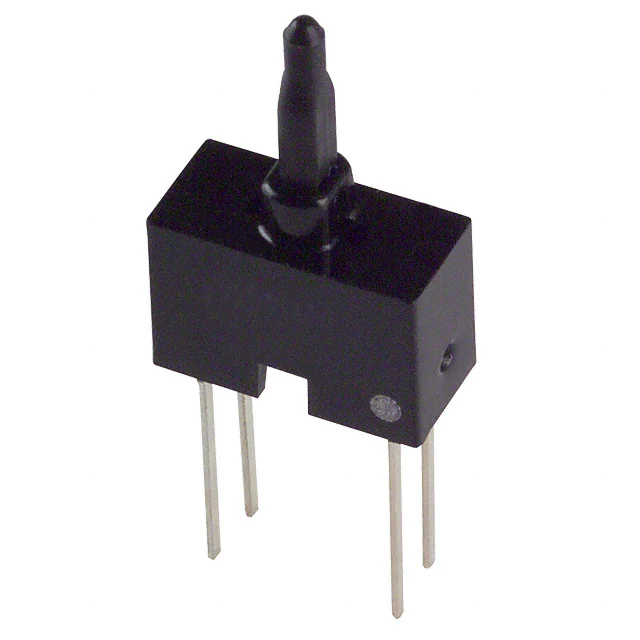

EE-SA105SENSOR OPT SLOT PHOTOTRANS |
1,561 |
|
数据手册 |
- | - | Bulk | Obsolete | - | Plunger | Phototransistor | 50 mA | 20 mA | 30 V | - | -25°C ~ 70°C | - | - | Through Hole |
|

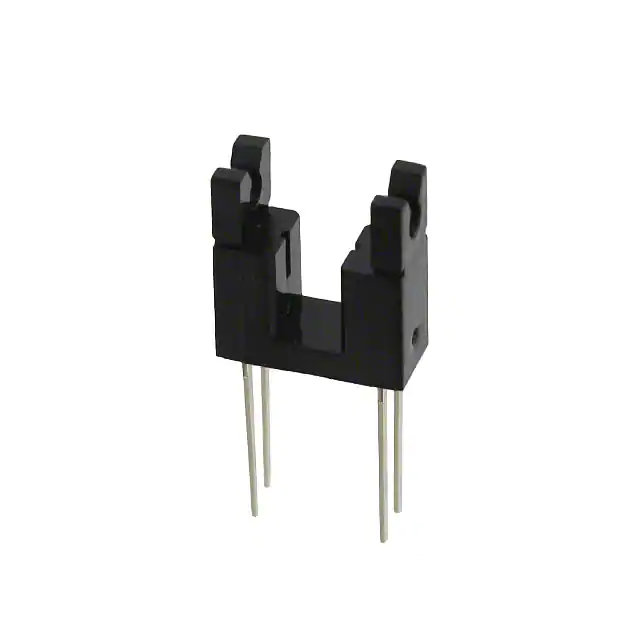

EE-SA104SENSOR OPT SLOT PHOTOTRAN PCB MT |
1,750 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 4µs, 4µs | -25°C ~ 85°C | - | - | Through Hole |
