光电中断器 - 槽型 - 晶体管输出
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 感应距离 | 感应方法 | 输出配置 | 电流 - 直流正向（If）（最大值） | 电流 - 集电极 (Ic)（最大值） | 电压 - 集电极发射极击穿（最大值） | 响应时间 | 工作温度 | 等级 | 认证 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OPB870N11SENSOR OPT SLOT PHOTOTRANS MODUL |
750 |
|
数据手册 |
- | Module, Pre-Wired | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|

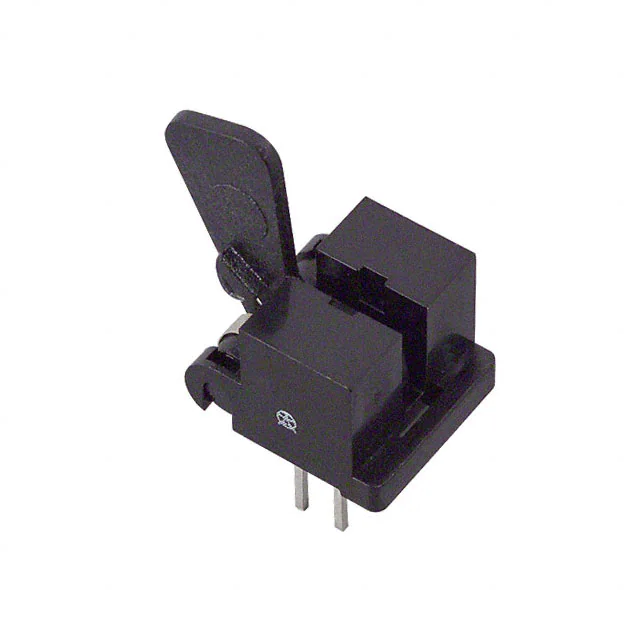

OPB680-20SENSOR OPT SLOT TRANS W/RES PCB |
1,170 |
|
数据手册 |
- | PCB Mount | Bulk | Active | - | Optical Flag | Transistor, Base-Emitter Resistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 100°C | - | - | Through Hole |
|
OPB365N51SENSOR OPT SLOT PHOTOTRANS MODUL |
821 |
|
数据手册 |
- | Module, Pre-Wired | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|

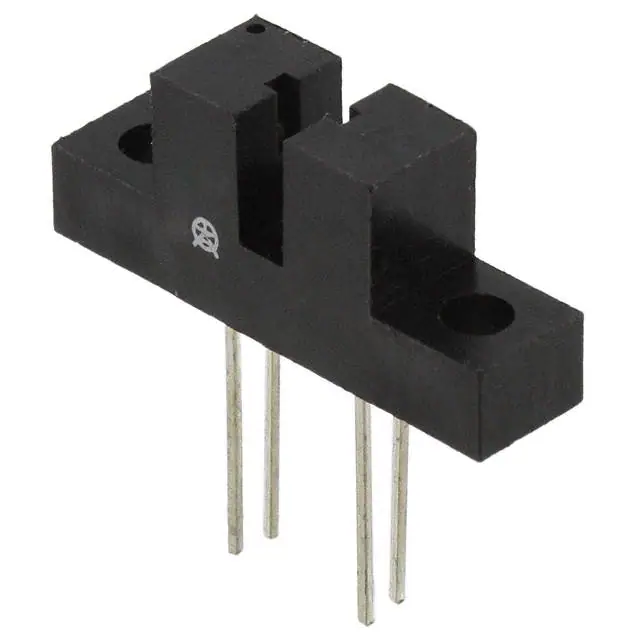

OPB854A3SENSOR OPT SLOT PHOTOTRAN PCB MT |
745 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.100" (2.54mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|
OPB865N51SENSOR OPT SLOT PHOTOTRANS MODUL |
803 |
|
数据手册 |
- | Module, Pre-Wired | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|

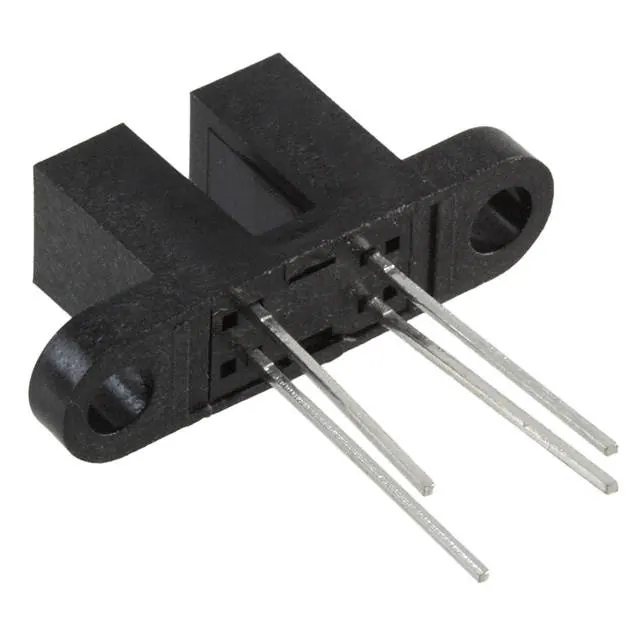

OPB865T51SENSOR OPT SLOT PHOTOTRAN PCB MT |
299 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|
OPB865N11SENSOR OPT SLOT PHOTOTRANS MODUL |
626 |
|
数据手册 |
- | Module, Pre-Wired | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|
OPB853A1SENSOR OPT SLOT DARL PCB MOUNT |
579 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Photodarlington | 40 mA | - | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|
OPB820S10SENSOR OPT SLOT PHOTOTRAN PCB MT |
3,013 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.080" (2.03mm) | Through-Beam | Phototransistor | 50 mA | - | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|

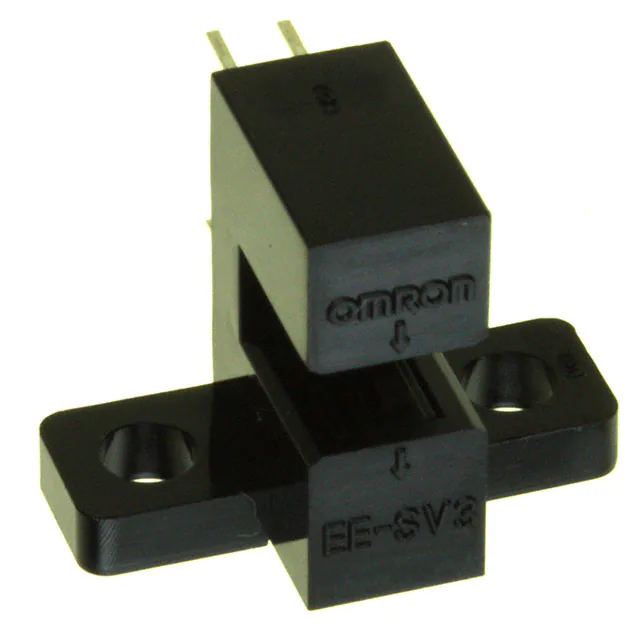

EE-SV3-BSENSOR OPT SLOT PHOTOTRAN PCB MT |
4,269 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.134" (3.4mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 4µs, 4µs | -25°C ~ 85°C | - | - | Through Hole |
|
OPB806SENSOR OPT SLOT PHOTOTRAN PCB MT |
507 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | - | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|

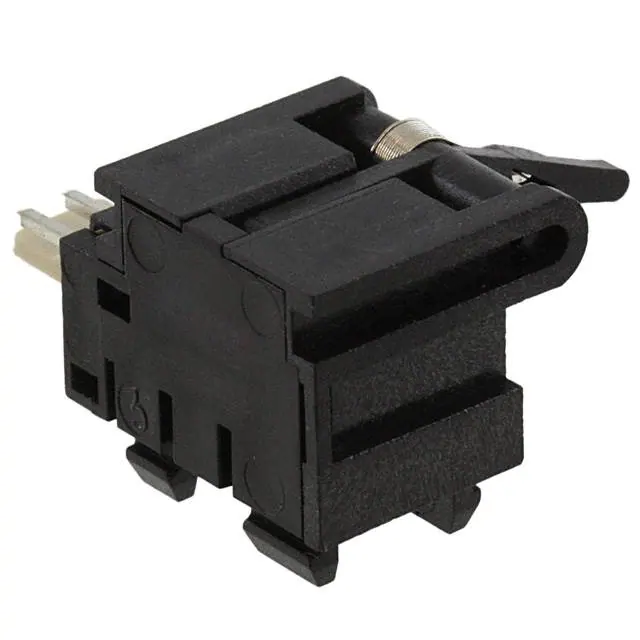

OPB690ZSENSOR OPT SLOT TRAN W/RES MOD |
412 |
|
数据手册 |
- | Module, Connector | Bulk | Active | - | Optical Flag | Transistor, Base-Emitter Resistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 100°C | - | - | Chassis Mount |
|

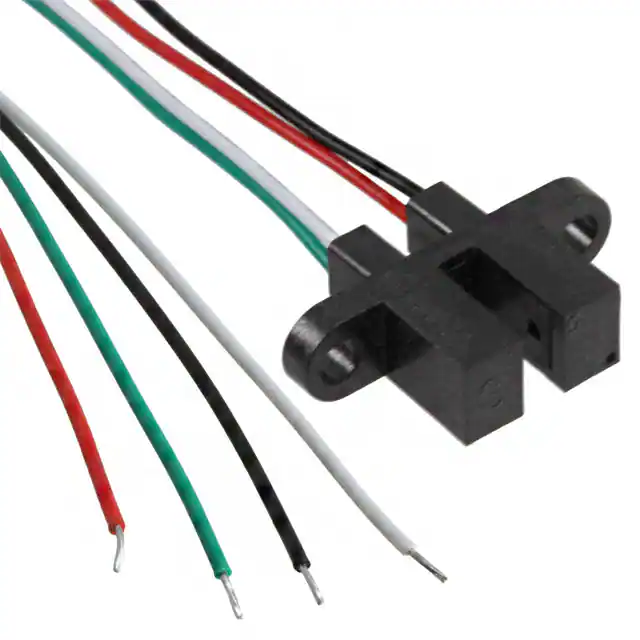

OPB890T55ZSENSOR OPT SLOT PHOTOTRAN PCB MT |
290 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|

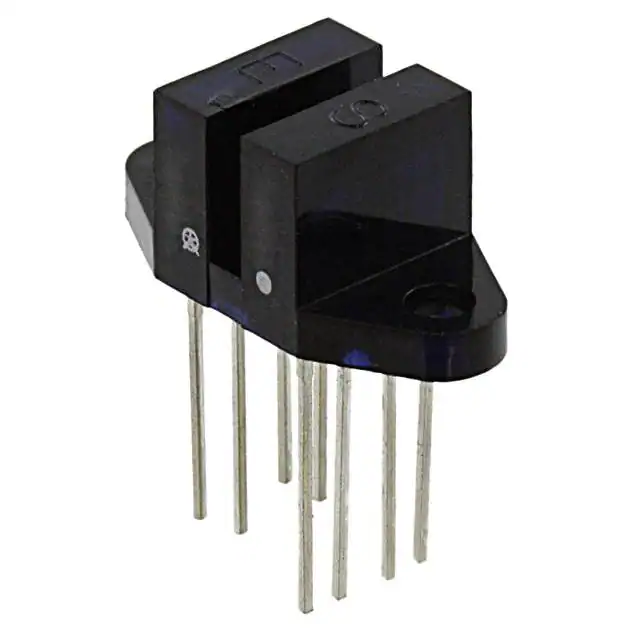

OPB822SSENSOR OPT SLOT 2 NPN PCB MOUNT |
344 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.090" (2.29mm) | Through-Beam | 2 NPN | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|

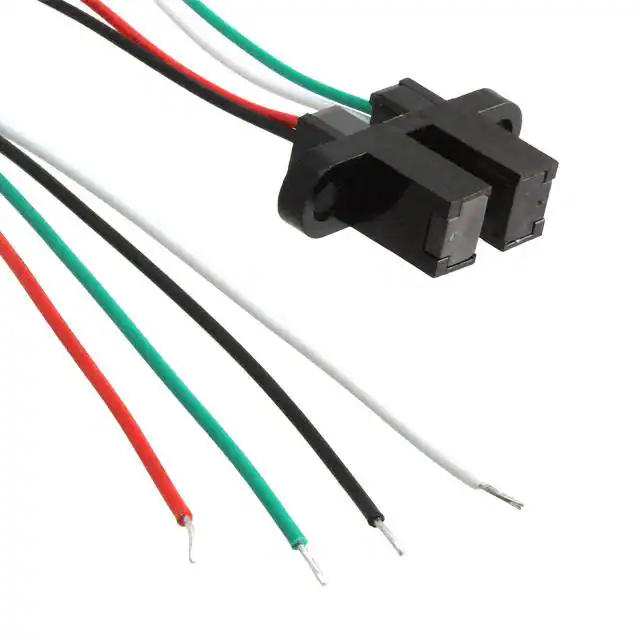

OPB380T55ZSENSOR OPT SLOT PHOTOTRAN PCB MT |
195 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|

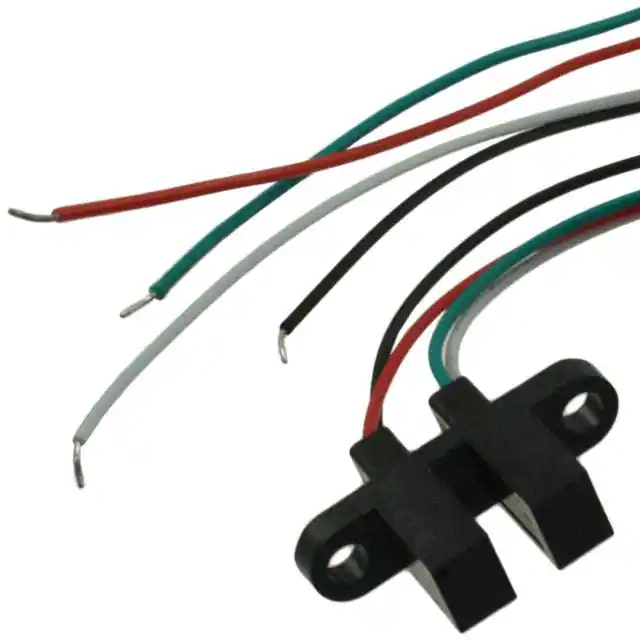

OPB891T51ZSENSOR OPT SLOT PHOTOTRAN PCB MT |
1,362 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|

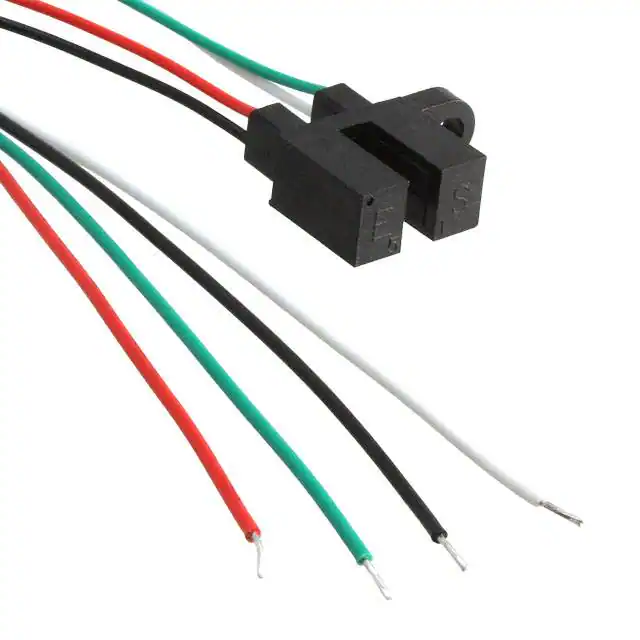

OPB890P51ZSENSOR OPT SLOT PHOTOTRANS MODUL |
395 |
|
数据手册 |
- | Module, Pre-Wired | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|
|
OPB891T55ZSENSOR OPT SLOT PHOTOTRAN PCB MT |
467 |
|
数据手册 |
- | PCB Mount | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Chassis Mount |
|

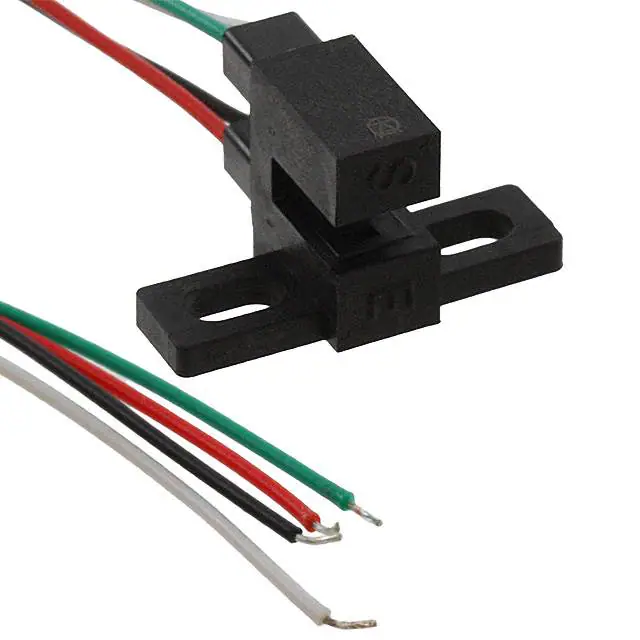

OPB842W55ZSENSOR OPT SLOT PHOTOTRANS MODUL |
586 |
|
数据手册 |
- | Module, Pre-Wired | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 80°C | - | - | Chassis Mount |
|
|
OPB842W51ZSENSOR OPT SLOT PHOTOTRANS MODUL |
3,331 |
|
数据手册 |
- | Module, Pre-Wired | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 80°C | - | - | Chassis Mount |
