多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-01189CABLE 9COND 30AWG BLACK SHLD |
459 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 9 | 30 AWG | 25/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.142" (3.61mm) | Spiral | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - | |
|
65243CY SL005CABLE 3COND 24AWG SLATE SHLD |
1,200 |
|
数据手册 |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.311" (7.90mm) | Braid | 100.0' (30.5m) | Slate | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|
30-01227CABLE 2COND 26AWG BLACK SHLD |
153 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 26 AWG | 19/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.161" (4.09mm) | Braid | 502.0' (153.0m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - | |
|
470055YY GE432CABLE 5COND 21AWG GRAY |
900 |
|
数据手册 |
Pro-Met® | Spool | Active | Multi-Conductor | 5 | 21 AWG | 20/0.0070" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.243" (6.17mm) | - | 984.3' (300.0m) | Gray | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0295" (0.749mm) | Poly-Vinyl Chloride (PVC) | - | |
|
30-01907CABLE 2COND 32AWG BLACK |
612 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 32 AWG | 7/40 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.102" (2.59mm) | - | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - | |
|
65003 SL010CABLE 3COND 20AWG SLATE FEET |
2,997 |
|
数据手册 |
Xtra-Guard® Flex | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.251" (6.38mm) | - | Enter Number of Feet in Order Quantity | Slate | UL Style 2587 | Oil Resistant | 600 V | - | Control | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|
76103WS 0081000CABLE 3COND 26AWG CHRM SHD FEET |
1,041 |
|
数据手册 |
MachFlex™ | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.188" (4.78mm) | Foil, Spiral | Enter Number of Feet in Order Quantity | Chrome | - | Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - | |
|
9418 060U1000CABLE 4COND 18AWG CHRM SHD |
1,000 |
|
数据手册 |
Classics | Box | Active | Multi-Conductor | 4 | 18 AWG | 19/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.245" (6.22mm) | Foil | 1000.0' (304.8m) | Chrome | UL Style 2464 | Drain Wire | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|
30-01613CABLE 8COND 28AWG BLK SHLD |
459 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 8 | 28 AWG | 7/0.0050" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.240" (6.10mm) | Foil, Braid | 502.0' (153.0m) | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0300" (0.762mm) | Poly-Vinyl Chloride (PVC) | - | |
|
19140 010250CABLE 2COND 18AWG BLACK |
19,500 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 2 | 18 AWG | 42/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.243" (6.17mm) | - | 250.0' (76.2m) | Black | - | - | - | - | - | 0.0360" (0.914mm) | Poly-Vinyl Chloride (PVC) | - | |
|
30-00671CABLE 5COND 28AWG BLACK SHLD |
612 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 5 | 28 AWG | 19/0.0031" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.177" (4.50mm) | Braid | 502.0' (153.0m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0335" (0.851mm) | Thermoplastic Elastomer (TPE) | - | |
|
30-01251CABLE 2COND 16AWG BLACK |
306 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | 26/0.0098" | Copper, Bare | Polyethylene (XLPE), Irradiated; Low Smoke Zero Halogen (LSZH) | 0.197" (5.00mm) | - | 502.0' (153.0m) | Black | UL Style 4384 | - | 300 V | 105°C | - | 0.0193" (0.490mm) | - | - | |
|
2463C SL001MULTI-PAIR 8COND 22AWG |
1,000 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.230" (5.84mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polypropylene (PP) | - | |
|

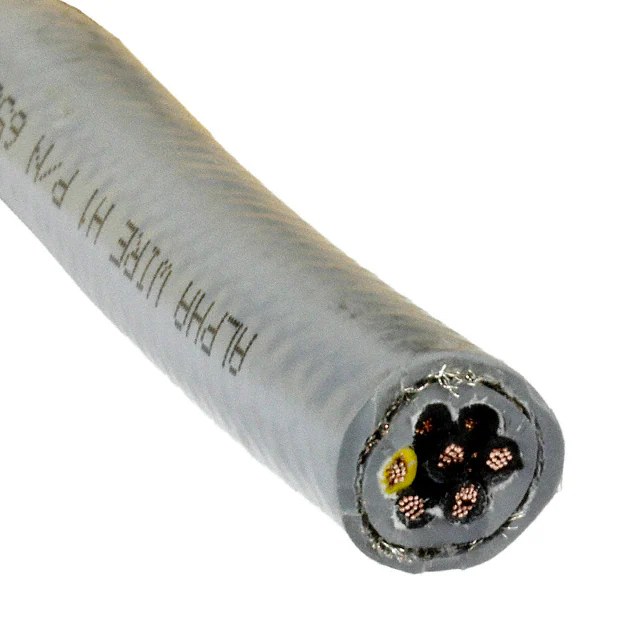

65807CY SL001CABLE 7COND 18AWG SHLD |
1,000 |
|
数据手册 |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 18 AWG | 16/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.439" (11.15mm) | Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|
902005 SL001CABLE 5COND 20AWG SLATE FEET |
919 |
|
数据手册 |
Xtra-Guard® Flex | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 5 | 20 AWG | 10/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.319" (8.10mm) | - | Enter Number of Feet in Order Quantity | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - | |
|
45013 BK005CABLE 3 COND 24AWG BLACK |
400 |
|
数据手册 |
Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.209" (5.31mm) | - | 100.0' (30.5m) | Black | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0420" (1.067mm) | Thermoplastic Elastomer (TPE) | - | |
|
30-01156CABLE 7COND 28AWG BLACK SHLD |
153 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 7 | 28 AWG | 40/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.138" (3.50mm) | Spiral | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - | |
|
65804CY SL002CABLE 4COND 18AWG SLATE SHLD |
1,500 |
|
数据手册 |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.384" (9.75mm) | Braid | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|
2463L SL001MULTI-PAIR 8COND 22AWG |
1,000 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.240" (6.10mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - | |
|
8920034CABLE 3COND 20AWG BLACK FEET |
1,072 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 20 AWG | 28/0.0059" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.264" (6.71mm) | - | Enter Number of Feet in Order Quantity | Black | - | - | 600 V | - | - | - | Poly-Vinyl Chloride (PVC) | - |
