多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19122 009250CABLE 2COND 18AWG WHITE |
250 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 2 | 18 AWG | 42/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | - | - | 250.0' (76.2m) | White | - | - | 300 V | - | - | 0.0320" (0.813mm) | - | - | |
|
7400W 060250CABLE 2COND 20AWG CHROME |
500 |
|
数据手册 |
MachFlex™ | Spool | Active | Multi-Conductor | 2 | 20 AWG | 10/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.211" (5.36mm) | - | 250.0' (76.2m) | Chrome | UL Style 20327 | Oil Resistant, UV Resistant | 300 V | -40°C ~ 90°C | Industrial, Signal, Control | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - | |
|
470027YY GE432CABLE 2COND 19AWG GRAY |
600 |
|
数据手册 |
Pro-Met® | Spool | Active | Multi-Conductor | 2 | 19 AWG | 30/0.0070" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.206" (5.23mm) | - | 984.3' (300.0m) | Gray | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0260" (0.660mm) | Poly-Vinyl Chloride (PVC) | - | |
|
1898/7C SL001CABLE 7COND 18AWG SLATE |
2,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 7 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.278" (7.06mm) | - | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - | |
|
78133 SL001CABLE 3COND 22AWG SHLD |
2,000 |
|
数据手册 |
EcoCable® Mini | Spool | Active | Multi-Conductor | 3 | 22 AWG | 19/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.137" (3.48mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|
2433C SL001CABLE 3COND 16AWG SHLD |
2,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.240" (6.10mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polyethylene (PE) | - | |
|
|
9154 290500CABLE 2CON 20AWG BEIGE SHLD |
1,000 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.198" (5.03mm) | Foil | 500.0' (152.4m) | Beige | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0310" (0.787mm) | Poly-Vinyl Chloride (PVC) | - | |
|
76004WS 008100CABLE 4CON 28AWG CHROM SHLD |
200 |
|
数据手册 |
MachFlex™ | Spool | Active | Multi-Conductor | 4 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.190" (4.83mm) | Foil, Spiral | 100.0' (30.5m) | Chrome | - | Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - | |
|
C8101.41.03CABLE 2COND 18AWG RED SHLD |
9,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | 19/30 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP) | 0.165" (4.19mm) | Foil | 1000.0' (304.8m) | Red | - | Drain Wire | 300 V | -40°C ~ 200°C | Communication, Control | 0.0160" (0.406mm) | Fluorinated Ethylene-Propylene (FEP) | - | |
|
M38910 SL001CABLE 10COND 24AWG SLATE |
1,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 10 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.243" (6.17mm) | - | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
1218C SL002CABLE 8COND 24AWG SLATE SHLD |
1,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 8 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.214" (5.44mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
M13143 SL005MULTI-PAIR 6COND 20AWG SLATE |
500 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.324" (8.23mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2919 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Polyethylene (PE) | - | |
|
2183P 0101000MULTI-PAIR 8COND 23AWG BLACK |
8,000 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 8 (4 Pair) | 23 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.260" (6.60mm) | Foil | 1000.0' (304.8m) | Black | UL Style CMP | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | 4K UHD HDbase-T, PoE | - | Fluorinated Ethylene-Propylene (FEP) | - | |
|
9302 060U500MULTI-PAIR 4CON 22AWG CHROM |
1,000 |
|
数据手册 |
Classics | Box | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | Solid | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.244" (6.20mm) | Foil | 500.0' (152.4m) | Chrome | UL Style 2464 | Drain Wire | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
|
7940A 0101000CABLE CAT6 8COND 23AWG BLK |
1,000 |
|
数据手册 |
DataTuff® | Spool | Active | Multi-Pair, Cat6 | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.250" (6.35mm) | - | 1000.0' (304.8m) | Black | UL Style CMR | Oil Resistant, UV Resistant | 300 V | -40°C ~ 75°C | Industrial, Network | 0.0300" (0.762mm) | Polyolefin (PO) | - | |
|

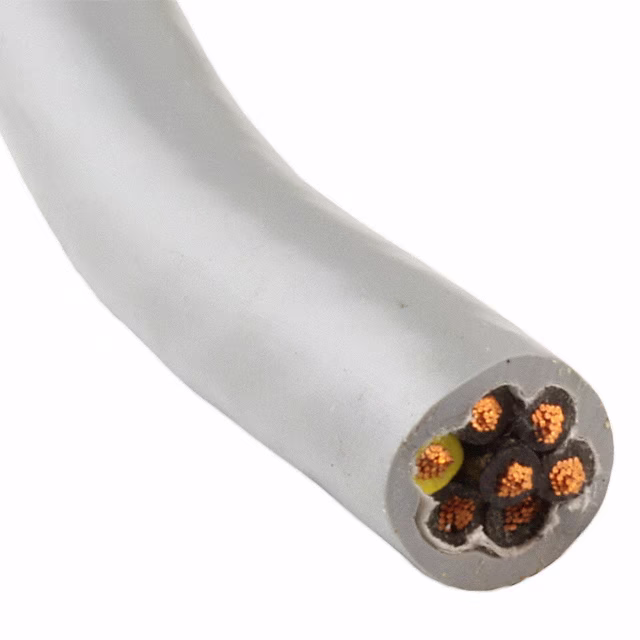

65607 SL001CABLE 7COND 16AWG SLATE |
1,000 |
|
数据手册 |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 7 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.390" (9.91mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|
1896/9C SL002CABLE 9COND 20AWG SLATE |
1,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 9 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.301" (7.65mm) | - | 500.0' (152.4m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0230" (0.584mm) | Poly-Vinyl Chloride (PVC) | - | |
|
8772 060U1000CABLE 3COND 20AWG CHROME SHD |
1,000 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.218" (5.54mm) | Foil | 1000.0' (304.8m) | Chrome | UL Style 2093 | Drain Wire | 300 V | -20°C ~ 60°C | Audio, Control, Instrumentation | 0.0330" (0.838mm) | Polyethylene (PE) | - | |
|
30-00179CABLE 3COND 28AWG BLACK SHLD |
3,978 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 28 AWG | 7/36 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.150" (3.81mm) | Foil, Spiral | 502.0' (153.0m) | Black | - | - | 300 V | -10°C ~ 80°C | - | 0.0327" (0.831mm) | Poly-Vinyl Chloride (PVC) | - | |
|
30-01448CABLE 4COND 32AWG SHLD MPPE |
1,224 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 32 AWG | 7/0.0031" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.134" (3.40mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0291" (0.740mm) | Polyphenylene Ether, Modified (mPPE) | - |
