多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

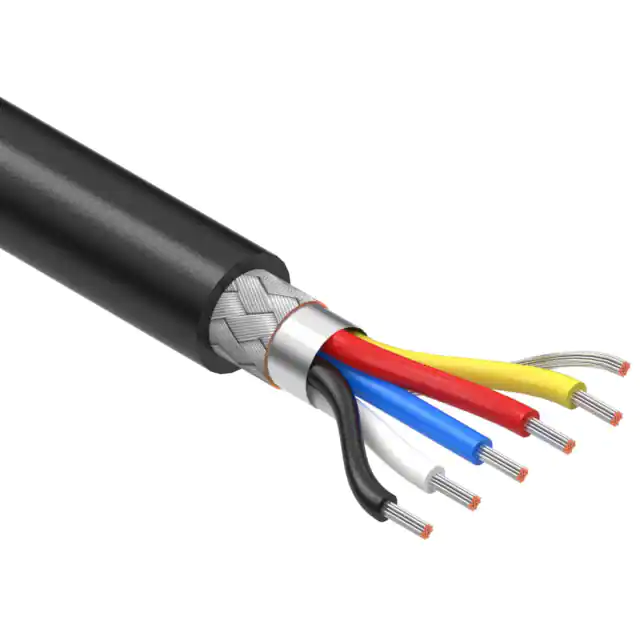

30-01043CABLE 5COND 24AWG BLK SHLD |
1,989 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 5 | 24 AWG | 11/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.220" (5.59mm) | Foil, Braid | 502.0' (153.0m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - | |
|
201404CABLE 4COND 14AWG BLACK FEET |
2,757 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 14 AWG | - | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.372" (9.45mm) | - | Enter Number of Feet in Order Quantity | Black | - | - | - | - | - | - | Poly-Vinyl Chloride (PVC) | - | |
|
86601CY SL005CABLE 2COND 24AWG SLATE SHLD |
300 |
|
数据手册 |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | 10/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.204" (5.18mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility, Drain Wire | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - | |
|

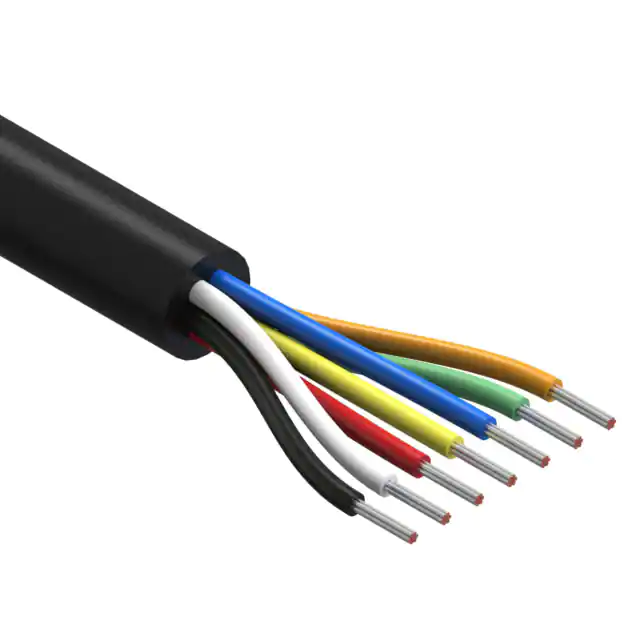

30-01304CABLE 7COND 22AWG BLACK |
459 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 7 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.240" (6.10mm) | - | 502.0' (153.0m) | Black | UL Style 2464 | - | 300 V | -25°C ~ 80°C | - | 0.0394" (1.001mm) | Poly-Vinyl Chloride (PVC) | - | |
|

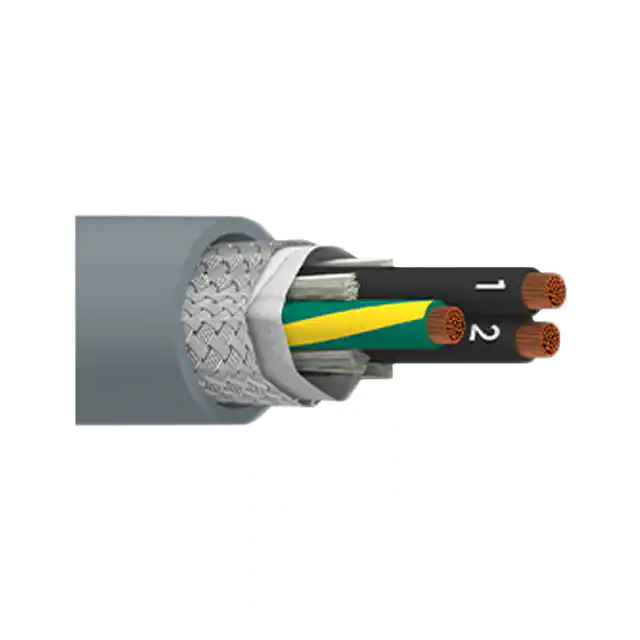

902003CY SL001CABLE 3CON 20AWG SLATE SHLD FEET |
1,042 |
|
数据手册 |
Xtra-Guard® Flex | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 20 AWG | 10/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.297" (7.54mm) | Braid | Enter Number of Feet in Order Quantity | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - | |
|
44A1121-24-0/9-9-MXCABLE 2CON 24AWG WHT SHLD FEET |
3,161 |
|
数据手册 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.118" (3.00mm) | Braid | Enter Number of Feet in Order Quantity | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Polyvinylidene Fluoride (PVDF) | - | |
|
2218030CABLE 3COND 18AWG BLK SHLD FEET |
5,070 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 18 AWG | 32/0.0083" | Copper, Bare | Thermoplastic Polymer | 0.323" (8.20mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Black | - | - | - | - | - | - | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - | |
|

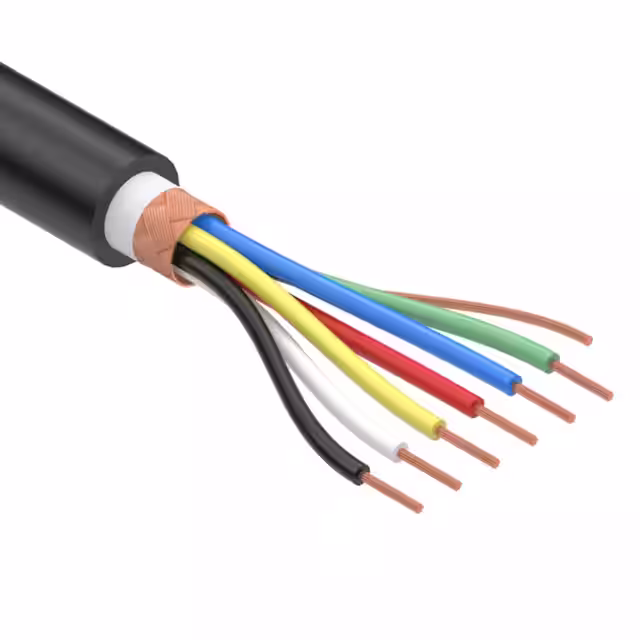

30-00672CABLE 6COND 28AWG BLACK SHLD |
1,071 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 6 | 28 AWG | 19/0.0031" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.185" (4.70mm) | Braid | 502.0' (153.0m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0327" (0.831mm) | Thermoplastic Elastomer (TPE) | - | |
|
302202CABLE 2COND 22AWG GRAY FEET |
3,683 |
|
数据手册 |
Unitronic® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 22 AWG | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.179" (4.55mm) | - | Enter Number of Feet in Order Quantity | Gray | - | - | 300 V | - | - | - | Poly-Vinyl Chloride (PVC) | - | |
|
CF9-05-04TPE 300V 4C/20AWG 300V CTRL FEET |
3,747 |
|
数据手册 |
chainflex® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 20 AWG | - | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.217" (5.51mm) | - | Enter Number of Feet in Order Quantity | Blue | - | Abrasion Resistant, Oil Resistant, Rip Cord, UV Resistant | 300 V | - | Industrial, Control | - | Thermoplastic Elastomer (TPE) | - | |
.jpg)
|
2170299CABLE CAT5E 8CON 26AWG TEAL FEET |
1,775 |
|
数据手册 |
ETHERLINE® | Digi-Spool®, Continuous Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 26 AWG | - | Copper, Bare | Low Smoke Zero Halogen (LSZH) | 0.240" (6.10mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Teal | - | Flame Retardant | 125 V | - | Industrial, Network | - | Polyethylene (PE) | - | |
|
901603 SL001CABLE 3COND 16AWG SLATE FEET |
314 |
|
数据手册 |
Xtra-Guard® Flex | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 16 AWG | 26/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.335" (8.51mm) | - | Enter Number of Feet in Order Quantity | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - | |
|

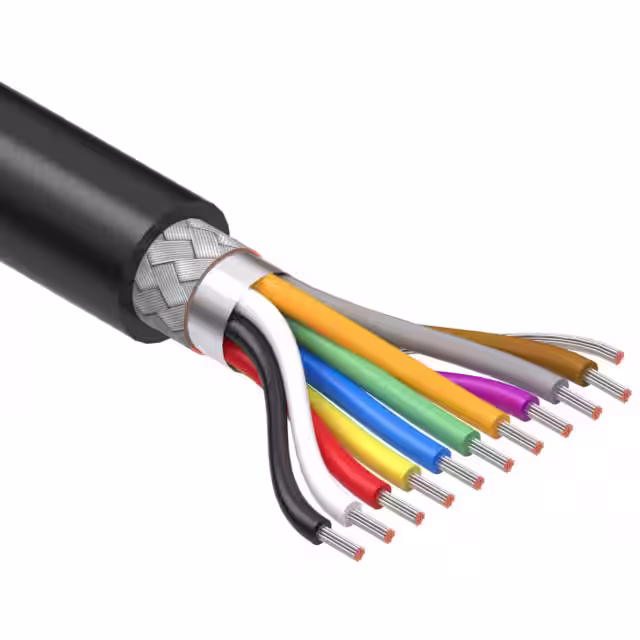

30-01107CABLE 10COND 28AWG BLACK SHLD |
765 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 10 | 28 AWG | 7/0.0047" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.248" (6.30mm) | Foil, Braid | 502.0' (153.0m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - | |
|
30-01929CABLE 5COND 28AWG BLACK |
1,224 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 5 | 28 AWG | 19/40 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.134" (3.40mm) | - | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - | |
|
|
44A1121-24-2/3-9CABLE 2CON 24AWG WHT SHLD FEET |
9,966 |
|
数据手册 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.118" (3.00mm) | Braid | Enter Number of Feet in Order Quantity | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Polyvinylidene Fluoride (PVDF) | - | |
|
2424C SL010CABLE 4CON 18AWG SLATE SHLD FEET |
3,118 |
|
数据手册 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.235" (5.97mm) | Foil | Enter Number of Feet in Order Quantity | Slate | UL Style 2094 | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polyethylene (PE) | - | |
|
30-03384CABLE 4COND 20AWG BLACK |
459 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 20 AWG | 26/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.240" (6.10mm) | - | 502.0' (153.0m) | Black | UL Style 20387 | Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - | |
|
6364 SL005MULTI-PAIR 8COND 24AWG SLATE |
1,300 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.265" (6.73mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
,302006.jpg)
|
301802CABLE 2COND 18AWG GRAY FEET |
2,309 |
|
数据手册 |
Unitronic® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 18 AWG | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.241" (6.12mm) | - | Enter Number of Feet in Order Quantity | Gray | - | Drain Wire, Oil Resistant, UV Resistant | 300 V | - | Industrial, Signal, Control | - | Poly-Vinyl Chloride (PVC) | - | |
|
9445 060100CABLE 5COND 20AWG CHROME |
900 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 5 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.239" (6.07mm) | - | 100.0' (30.5m) | Chrome | - | - | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
