多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-03291CABLE 2COND 24AWG WHITE/GREEN |
918 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | 26/0.0039" | Copper, Tinned | - | - | - | 502.0' (153.0m) | Green, White | UL Style 1640 | - | 30 V | 80°C | Communication, Control | - | Polyethylene (PE) | - | |
|
|
30-02423CABLE 3COND 28AWG BLACK SHLD |
917 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 28 AWG | 19/40 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.126" (3.20mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - | |
|
|
30-03288CABLE 2COND 24AWG WHITE/BLUE |
459 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | 26/0.0039" | Copper, Tinned | - | - | - | 502.0' (153.0m) | Blue, White | UL Style 1640 | - | 30 V | 80°C | Communication, Control | - | Polyethylene (PE) | - | |
|
30-01174CABLE 8COND 30AWG BLK SHLD |
306 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 8 | 30 AWG | 25/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.134" (3.40mm) | Spiral | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - | |
|

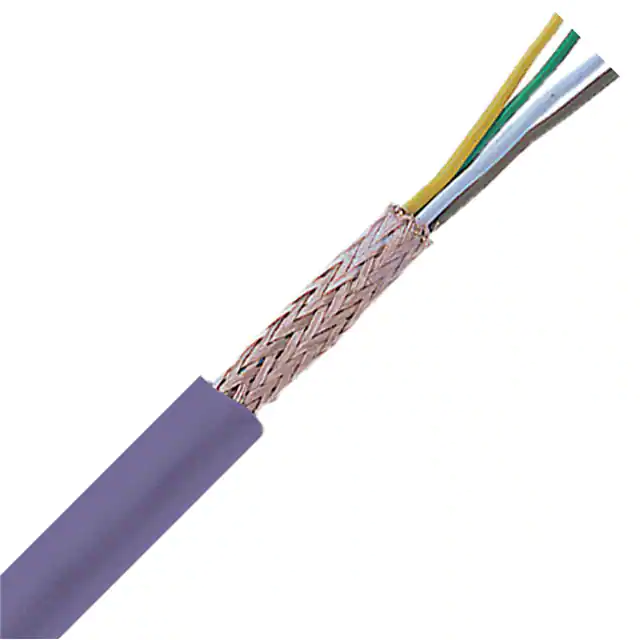

2170204MULTI-PAIR 4COND 24AWG VIO FEET |
985 |
|
数据手册 |
Unitronic® | Digi-Spool®, Continuous Spool | Active | Multi-Pair | 4 (2 Pair) | 24 AWG | - | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.280" (7.11mm) | Braid | Enter Number of Feet in Order Quantity | Violet | - | Abrasion Resistant | 250 V | -40°C ~ 80°C | Industrial | - | Polyethylene (PE) | - | |
|
78174 SL001MULTI-PAIR 8COND 24AWG |
8,000 |
|
数据手册 |
EcoCable® Mini | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 24 AWG | 19/36 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.193" (4.90mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|
|
30-01649CABLE 3COND 20AWG BLACK |
1,377 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 20 AWG | 26/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.220" (5.59mm) | - | 502.0' (153.0m) | Black | - | - | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - | |
|
|
5006C SL324CABLE 6COND 22AWG SLATE FEET |
1,875 |
|
数据手册 |
Xtra-Guard® 1 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.219" (5.56mm) | - | Enter Number of Feet in Order Quantity | Slate | - | Oil Resistant, Rip Cord, UV Resistant | 300 V | -30°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

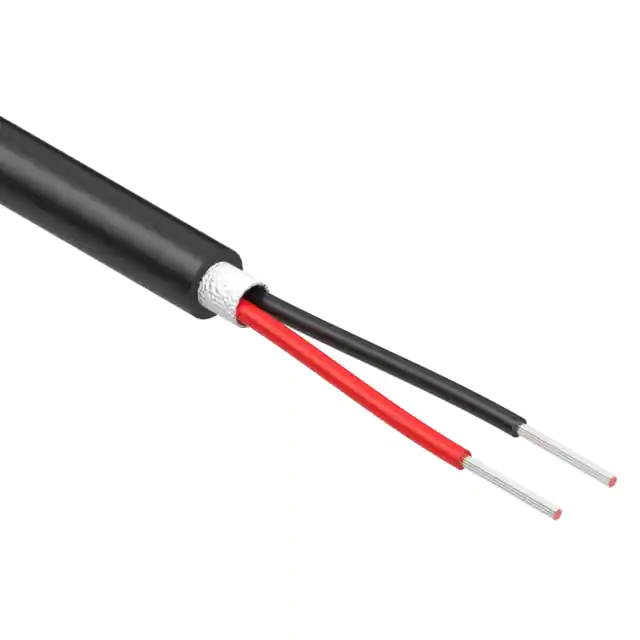

30-01903CABLE 2COND 24AWG BLACK |
765 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 24 AWG | 26/38 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.126" (3.20mm) | - | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - | |
|
2170219CABLE 2COND 22AWG VIO SHLD FEET |
4,067 |
|
数据手册 |
Unitronic® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 (1 Pair) | 22 AWG | - | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.315" (8.00mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Violet | - | - | - | -40°C ~ 80°C | - | - | Polyethylene (PE) | - | |
|

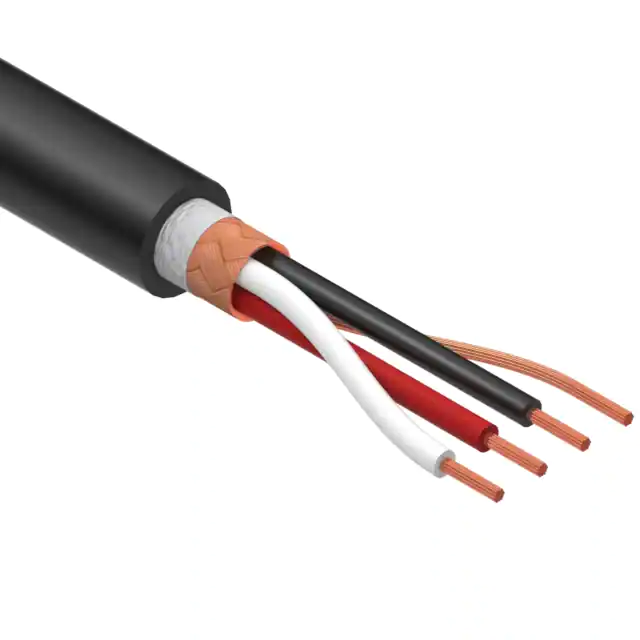

30-00914CABLE 3COND 26AWG BLACK SHLD |
1,683 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 26 AWG | 19/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.169" (4.29mm) | Braid | 502.0' (153.0m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - | |
|
C0768A.41.10CABLE 25COND 22AWG GRAY SHLD |
3,000 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 25 | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.369" (9.37mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

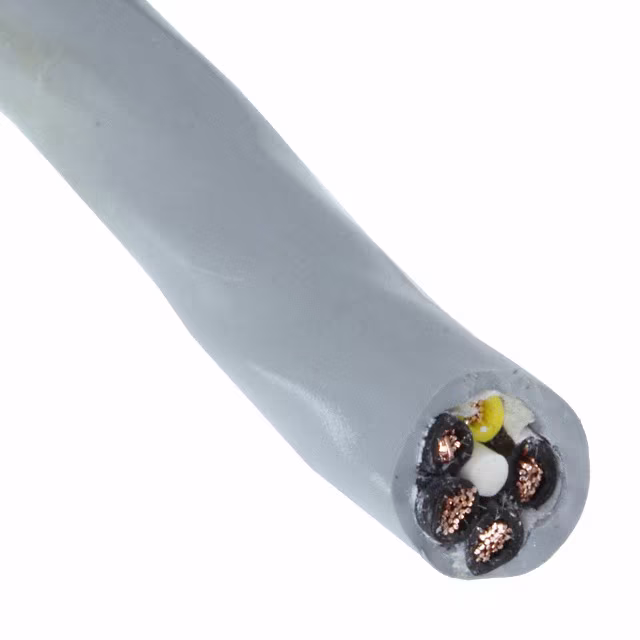

73605W 008100CABLE 5COND 16AWG GRAY |
201 |
|
数据手册 |
MachFlex™ | Spool | Active | Multi-Conductor | 5 | 16 AWG | 26/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.361" (9.17mm) | - | 100.0' (30.5m) | Gray | UL Style 2587 | Oil Resistant | 600 V | - | Industrial, Signal, Control | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|
|
30-03369CABLE 4COND 26AWG BLACK |
612 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 26 AWG | 26/0.0031" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.161" (4.09mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0311" (0.790mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|
30-01045CABLE 5COND 26AWG BLACK SHLD |
153 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 5 | 26 AWG | 7/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.209" (5.31mm) | Foil, Braid | 502.0' (153.0m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - | |
|

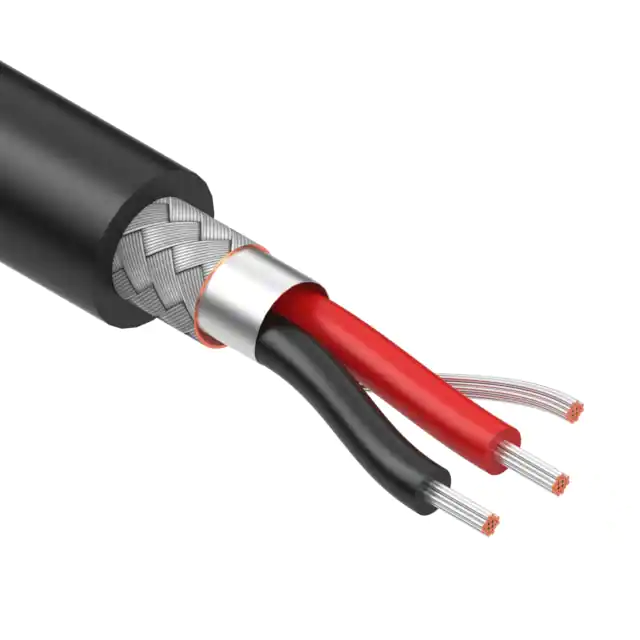

30-01562CABLE 2COND 22AWG BLACK SHLD |
2,448 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.209" (5.31mm) | Foil, Braid | 502.0' (153.0m) | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - | |
|

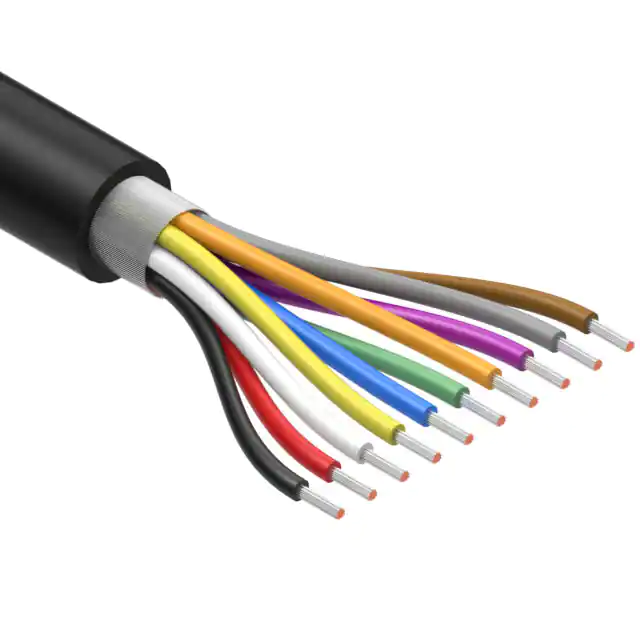

30-01207CABLE 10COND 32AWG BLACK SHLD |
918 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 10 | 32 AWG | 19/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.142" (3.61mm) | Spiral | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - | |
|
M4608 SL005CABLE 10COND 24AWG SHLD |
300 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 10 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.247" (6.27mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

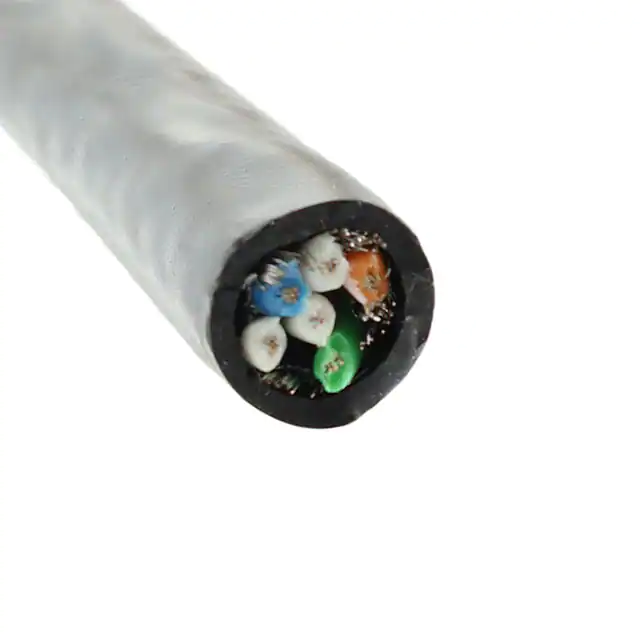

6456 BK002MULTI-PAIR 6COND 22AWG BLACK |
500 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.414" (10.52mm) | Foil, Braid | 500.0' (152.4m) | Black | - | Drain Wire | 300 V | -20°C ~ 60°C | - | 0.0530" (1.346mm) | High Density Polyethylene (HDPE) | - | |
|

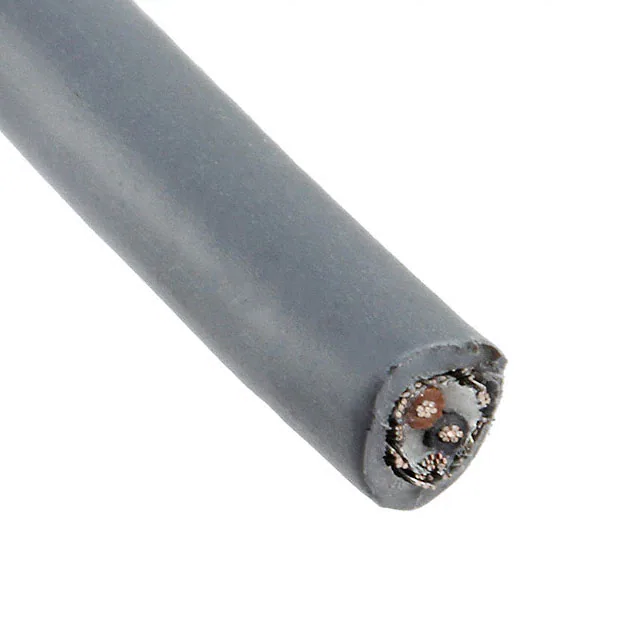

5112C SL001CABLE 2COND 24AWG SHLD |
1,000 |
|
数据手册 |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 2 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.184" (4.67mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
