多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5013C SL013CABLE 3COND 24AWG SLATE FEET |
1,874 |
|
数据手册 |
Xtra-Guard® 1 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.163" (4.14mm) | - | Enter Number of Feet in Order Quantity | Slate | - | Oil Resistant, Rip Cord, UV Resistant | 300 V | -30°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

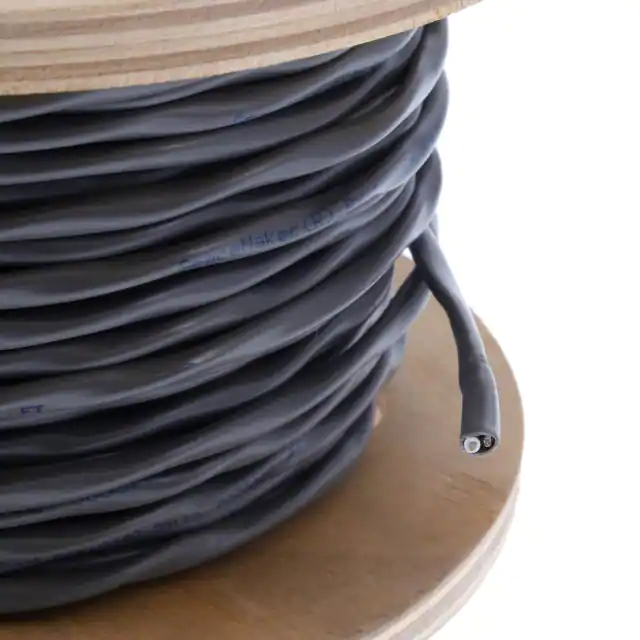

9740MN 008100CABLE 2COND 18AWG GRAY |
800 |
|
数据手册 |
SpaceMaker™ | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.166" (4.22mm) | - | 100.0' (30.5m) | Gray | - | - | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - | |
|
30-00399CABLE 2COND 20AWG WHITE |
4,575 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.157" (3.99mm) | - | 1000.7' (305.0m) | White | UL Style 2468 | - | 300 V | -10°C ~ 80°C | - | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - | |
|
63056TRAYCONTROL CABLE, FLEX, 600V, 4 |
2,640 |
|
数据手册 |
TRAYCONTROL® | Spool | Active | Multi-Conductor | 4 | 16 AWG | - | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.378" (9.60mm) | Foil, Braid | 1640.4' (500.0m) | Black | - | Direct Burial, Flame Retardant, UV Resistant | 1000 V | -40°C ~ 90°C | - | - | Poly-Vinyl Chloride (PVC) | - | |
|
|
30-03155CABLE 2COND 20AWG BLACK |
612 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 20 AWG | 26/0.0063" | - | Polyphenylene Ether, Modified (mPPE) | 0.142" (3.61mm) | - | 502.0' (153.0m) | Black | UL Style 21516 | - | 600 V | -40°C ~ 105°C | - | 0.0150" (0.381mm) | - | - | |
|
|
30-02978CABLE 3COND 24AWG BLK |
459 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 24 AWG | 41/0.0031" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.189" (4.80mm) | - | 502.0' (153.0m) | Black | UL Style 20387 | Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0331" (0.840mm) | Poly-Vinyl Chloride (PVC) | - | |
|
|
9740 060U500CABLE 2COND 18AWG CHROME |
2,000 |
|
数据手册 |
Classics | Box | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.210" (5.33mm) | - | 500.0' (152.4m) | Chrome | UL Style 2464 | - | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

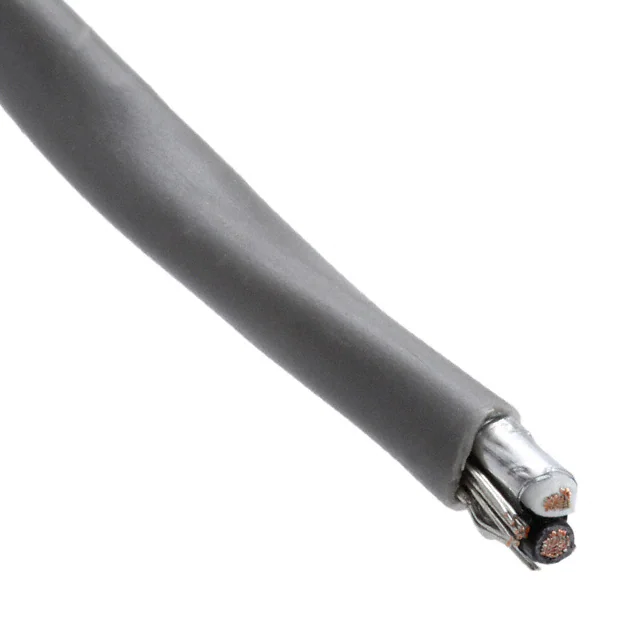

8641 060100CABLE 2COND 24AWG CHROME SHLD |
1,200 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.168" (4.27mm) | Foil | 100.0' (30.5m) | Chrome | - | Drain Wire | - | -20°C ~ 80°C | - | 0.0250" (0.635mm) | Polyethylene (PE) | - | |
|
|
CF890-05-02IGUPUR 2C/20AWG CTRL 600V FEET |
740 |
|
数据手册 |
chainflex® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 20 AWG | - | Copper, Bare | Polyurethane (PU) | 0.197" (5.00mm) | - | Enter Number of Feet in Order Quantity | Black | UL Style 20940 | Flame Retardant, Oil Resistant | 600 V | - | Industrial, Control | - | Poly-Vinyl Chloride (PVC) | - | |
|
6083C SL002MULTI-PAIR 6COND 24AWG SLATE |
1,000 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.235" (5.97mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | High Density Polyethylene (HDPE) | - | |
|
|
8461 060U500CABLE SPKR 2COND 18AWG CHRM |
500 |
|
数据手册 |
Classics | Box | Active | Speaker | 2 (1 Pair Twisted) | 18 AWG | 7/26 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.234" (5.94mm) | - | 500.0' (152.4m) | Chrome | - | - | - | -20°C ~ 80°C | - | 0.0270" (0.686mm) | Poly-Vinyl Chloride (PVC) | - | |
|

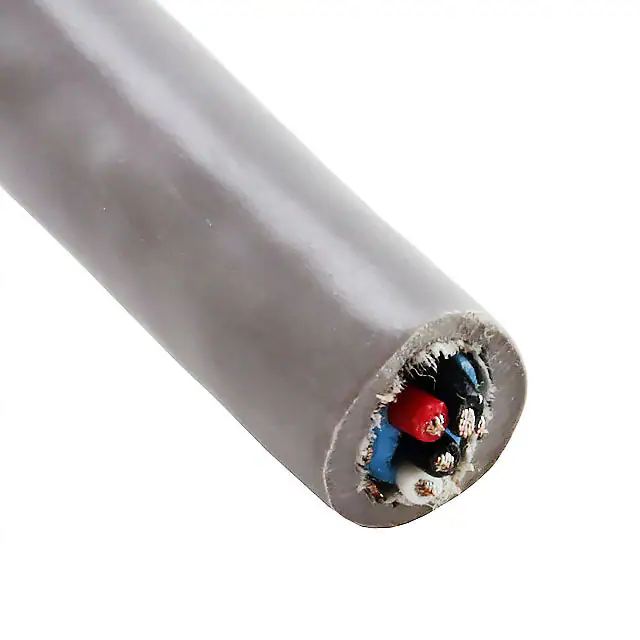

6390 SL001MULTI-PAIR 4COND 28AWG |
1,000 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.211" (5.36mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2960 | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - | |
|
1896/4C SL324CABLE 4COND 20AWG SLATE FEET |
2,580 |
|
数据手册 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.209" (5.31mm) | - | Enter Number of Feet in Order Quantity | Slate | UL Style 2509 | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - | |
|
78132 SL001CABLE 2COND 22AWG SHLD |
1,000 |
|
数据手册 |
EcoCable® Mini | Spool | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.130" (3.30mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|
|
30-02339CBL 2CON 26AWG BLK TPU |
1,683 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 26 AWG | 19/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.146" (3.71mm) | - | 502.0' (153.0m) | Black | UL Style 20280 | - | 300 V | -40°C ~ 80°C | - | 0.0299" (0.759mm) | Thermoplastic Elastomer (TPE) | - | |
|
|
800654HELUKAT PROFINET TYPE B IE FOOT |
1,052 |
|
数据手册 |
HELUKAT® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | - | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.256" (6.50mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Green | UL Style 21694 | - | - | -40°C ~ 80°C | - | - | Polyethylene (PE) | - | |
|

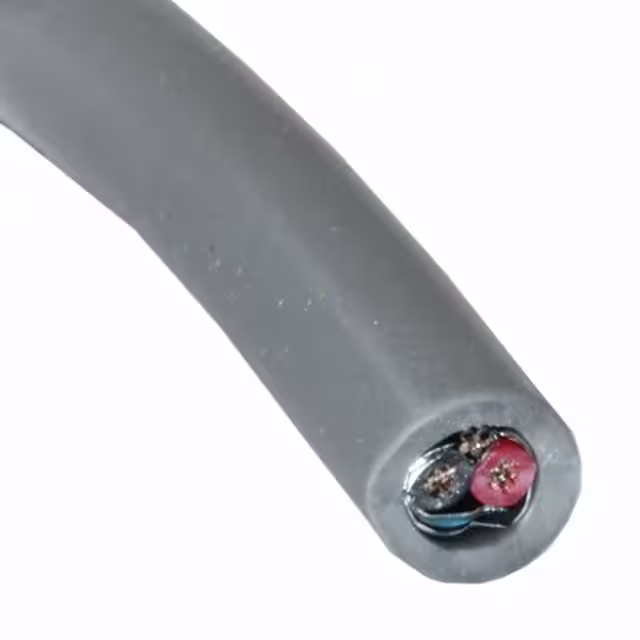

9462 060500CABLE 2CON 22AWG CHROM SHLD |
500 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.186" (4.72mm) | Foil | 500.0' (152.4m) | Chrome | UL Style 2464 | Drain Wire | 300 V | -30°C ~ 80°C | Audio, Control, Instrumentation | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|
58113 SL002CABLE 3COND 22AWG SLATE SHLD |
1,500 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/28 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.133" (3.38mm) | Foil | 500.0' (152.4m) | Slate | - | Drain Wire | 300 V | -5°C ~ 75°C | - | 0.0154" (0.390mm) | Poly-Vinyl Chloride (PVC) | - | |
|
2403C SL013CABLE 3CON 22AWG SLATE SHLD FEET |
717 |
|
数据手册 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.178" (4.52mm) | Foil | Enter Number of Feet in Order Quantity | Slate | UL Style 2093 | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polyethylene (PE) | - | |
|
|
30-01642CABLE 2COND 22AWG BLACK |
306 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.193" (4.90mm) | - | 502.0' (153.0m) | Black | - | - | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
