机器视觉 - 镜头
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 焦距 | 放大倍率 | 焦比 | 兼容的最大传感器尺寸 | 视场 | 工作距离 | 景深 | 分辨率 | 电视失真 | 滤镜尺寸 | 直径 | 长度 | 安装类型 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0703-118-000-25LENS STD F4 0.05X-0.5X M42-MOUNT Excelitas Technologies |
4,055 |
|
数据手册 |
Rodagon-M42 | Box | Active | Standard | 40.0mm | 0.05x ~ 0.5x | F4 | - | 44.0mm | 94mm ~ 1027mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 81.7mm | M42-Mount | - |
|
|
0020-007-000-30LENS W ANG F1.6 0X-0.1X C-MT Excelitas Technologies |
3,489 |
|
数据手册 |
MeVis-CF | Box | Obsolete | Wide Angle | 25.0mm | 0x ~ 0.1x | F1.6 | 1" | 16.0mm | 260mm (Min) | - | 2µm | - | M30 x P0.75 | 34.0mm Dia | 47.6mm | C-Mount | - |
|

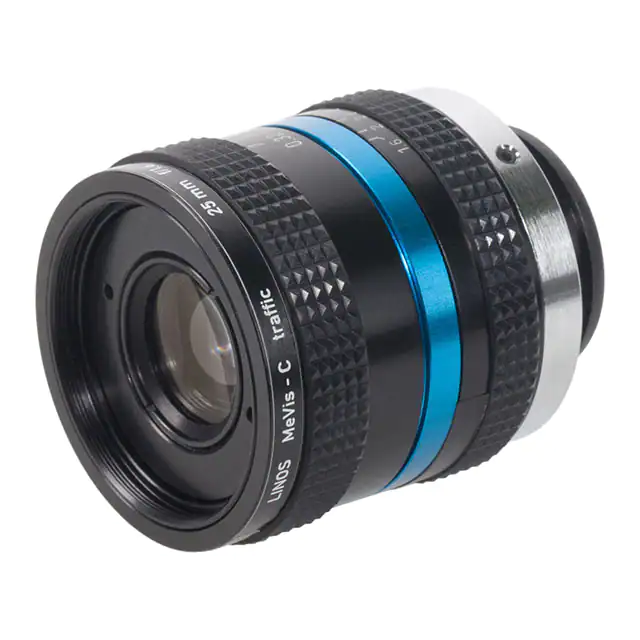

0020-002-000-45LENS W ANG F1.6 0X-0.1X C-MT Excelitas Technologies |
4,417 |
|
数据手册 |
MeVis-C | Box | Obsolete | Wide Angle | 25.0mm | 0x ~ 0.1x | F1.6 | 1" | 16.0mm | 260mm (Min) | - | 2µm | - | M35.5 x P0.5 | 42.0mm Dia | 47.8mm | C-Mount | - |
|
|
0703-095-000-21LENS TELEPHOTO F4 3.3X-3.7X FLEX Excelitas Technologies |
2,658 |
|
数据手册 |
inspec.x L | Box | Active | Telephoto | 105.0mm | 3.3x ~ 3.7x | F4 | - | 82.0mm | 75mm ~ 79mm | - | 5µm | - | M46 x P0.75 | 53.0mm Dia | 94.5mm | Flexible | - |
|
|
0703-101-000-40LENS STD F4.5 0.4X-0.8X FLEXIBLE Excelitas Technologies |
4,590 |
|
数据手册 |
Apo-Rodagon-D | Box | Active | Standard | 75.0mm | 0.4x ~ 0.8x | F4.5 | - | - | 138mm ~ 232mm | - | 7µm | - | M40.5 x P0.5 | 50.0mm Dia | 42.9mm | Flexible | - |
|
|
0020-002-000-40LENS W ANG F1.6 0X-0.1X C-MT Excelitas Technologies |
3,461 |
|
数据手册 |
MeVis-C | Box | Active | Wide Angle | 25.0mm | 0x ~ 0.1x | F1.6 | 1" | 16.0mm | 260mm (Min) | - | 2µm | - | M35.5 x P0.5 | 42.0mm Dia | 47.8mm | C-Mount | - |
|
0703-096-000-40LENS TELPHOT F4 0.06X-0.5X FLEX Excelitas Technologies |
1,730 |
|
数据手册 |
Apo-Rodagon-N | Box | Active | Telephoto | 105.0mm | 0.06x ~ 0.5x | F4 | - | 100.0mm | 282mm ~ 1825mm | - | 7µm | - | M40.5 x P0.5 | 50.0mm Dia | 54.3mm | Flexible | - |
|

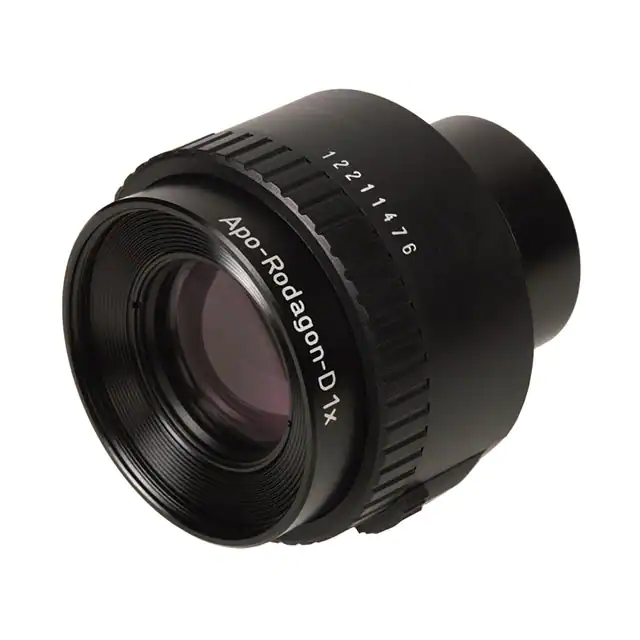

0703-005-000-40LENS STD F4 0.8X-1.2X FLEXIBLE Excelitas Technologies |
2,425 |
|
数据手册 |
Apo-Rodagon-D | Box | Active | Standard | 75.0mm | 0.8x ~ 1.2x | F4 | - | 82.0mm | 100mm ~ 130mm | - | 7µm | - | M40.5 x P0.5 | 50.0mm Dia | 52.9mm | Flexible | - |
|
|
0701-349-000-40LENS STD F2.8 0.05X-0.5X FLEX Excelitas Technologies |
1,803 |
|
数据手册 |
Apo-Rodagon-N | Box | Active | Standard | 50.0mm | 0.05x ~ 0.5x | F2.8 | - | 43.3mm | 122mm ~ 1025mm | - | 7µm | - | M40.5 x P0.5 | 50.0mm Dia | 45.6mm | Flexible | - |
|
0703-090-000-25LENS STD F4 0X-0.5X F-MOUNT Excelitas Technologies |
4,744 |
|
数据手册 |
Rodagon-F | Box | Active | Standard | 40.0mm | 0x ~ 0.5x | F4 | - | 44.0mm | 94mm (Min) | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 45.9mm | F-Mount | - |
