机器视觉 - 镜头
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 焦距 | 放大倍率 | 焦比 | 兼容的最大传感器尺寸 | 视场 | 工作距离 | 景深 | 分辨率 | 电视失真 | 滤镜尺寸 | 直径 | 长度 | 安装类型 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0703-116-000-21LENS TELPHOT F5.6 0.06-0.52X FLX Excelitas Technologies |
2,151 |
|
数据手册 |
inspec.x L | Box | Active | Telephoto | 120.0mm | 0.06x ~ 0.52x | F5.6 | - | 82.0mm | 302mm ~ 2037mm | - | 5µm | 0.4% | M52 x P0.75 | 77.1mm Dia | 72.7mm | Flexible | - |
|

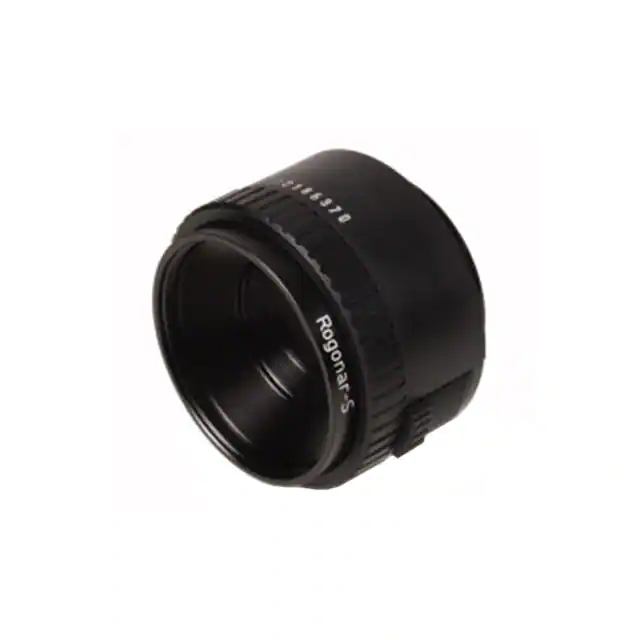

0801-324-000-40LENS STD F4.5 0.1X-0.5X FLEXIBLE Excelitas Technologies |
3,687 |
|
数据手册 |
Rogonar-S | Box | Active | Standard | 60.0mm | 0.1x ~ 0.5x | F4.5 | - | 56.0mm | 271mm ~ 729mm | - | 10µm | - | M40.5 x P0.5 | 50.0mm Dia | 36.6mm | Flexible | - |
|
|
0801-325-000-40LENS STD F4.5 0.1X-0.5X FLEXIBLE Excelitas Technologies |
4,666 |
|
数据手册 |
Rogonar-S | Box | Active | Standard | 75.0mm | 0.1x ~ 0.5x | F4.5 | - | 43.3mm | 201mm ~ 793mm | - | 10µm | - | M40.5 x P0.5 | 50.0mm Dia | 36.7mm | Flexible | - |
|
|
0801-397-000-40LENS STD F2.8 0.075X-0.4X FLEX Excelitas Technologies |
4,980 |
|
数据手册 |
Rogonar-S | Box | Active | Standard | 50.0mm | 0.075x ~ 0.4x | F2.8 | - | 43.3mm | 153mm ~ 707mm | - | 10µm | - | M40.5 x P0.5 | 50.0mm Dia | 37.9mm | Flexible | - |
|
|
0703-119-000-26LENS STD F5.6 0.033X-0.5X M42-MT Excelitas Technologies |
2,725 |
|
数据手册 |
Rodagon-M42 | Box | Active | Standard | 50.0mm | 0.033x ~ 0.5x | F5.6 | - | 46.0mm | 124mm ~ 1545mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 93.0mm | M42-Mount | - |
|
|
0703-119-000-25LENS STD F4 0.033X-0.5X M42-MT Excelitas Technologies |
2,387 |
|
数据手册 |
Rodagon-M42 | Box | Active | Standard | 50.0mm | 0.033x ~ 0.5x | F4 | - | 46.0mm | 124mm ~ 1545mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 93.0mm | M42-Mount | - |
|
|
0703-120-000-25LENS STD F4 0.033X-0.5X M42-MT Excelitas Technologies |
1,647 |
|
数据手册 |
Rodagon-M42 | Box | Active | Standard | 60.0mm | 0.033x ~ 0.5x | F4 | - | 44.0mm | 159mm ~ 1275mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 111.1mm | M42-Mount | - |
|
|
0703-120-000-27LENS STD F8 0.033X-0.5X M42-MT Excelitas Technologies |
2,949 |
|
数据手册 |
Rodagon-M42 | Box | Active | Standard | 60.0mm | 0.033x ~ 0.5x | F8 | - | 44.0mm | 159mm ~ 1275mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 111.1mm | M42-Mount | - |
|
|
0703-120-000-26LENS STD F5.6 0.033X-0.5X M42-MT Excelitas Technologies |
4,806 |
|
数据手册 |
Rodagon-M42 | Box | Active | Standard | 60.0mm | 0.033x ~ 0.5x | F5.6 | - | 44.0mm | 159mm ~ 1275mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 111.1mm | M42-Mount | - |
|
|
0703-118-000-27LENS STD F8 0.05X-0.5X M42-MOUNT Excelitas Technologies |
2,181 |
|
数据手册 |
Rodagon-M42 | Box | Active | Standard | 40.0mm | 0.05x ~ 0.5x | F8 | - | 44.0mm | 94mm ~ 1027mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 81.7mm | M42-Mount | - |
