模拟开关、复用器、解复用器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 电路数量 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | -3db 带宽 | 电荷注入 | 通道电容（CS(off), CD(off)） | 漏电流（IS(off)）（最大） | 串扰 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC74VHC4052DR2IC SWITCH SP4T X 2 100OHM 16SOIC |
4,445 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 10Ohm | 2V ~ 6V | ±2V ~ 6V | - | 95MHz | - | 80pF | 100nA | -60dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
PI5A3157ZAEXIC SWITCH SPDT X 1 13OHM 6TDFN |
2,362 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 13Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.2ns, 3.5ns | 250MHz | 7pC | 2.3pF | 100nA | -54dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TDFN (1.5x1) |
|
DG4157DN-T1-E4IC SWITCH SPDTX1 1.2OHM 6MINIQFN |
1,478 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 1.2Ohm | 120mOhm (Max) | 1.65V ~ 5.5V | - | 37ns, 23ns | 117MHz | 50pC | 20pF | 2nA | -63dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-miniQFN (1x1.2) |
|
FSA1157P6XIC SWITCH SPST-NCX1 900MOHM SC88 |
3,303 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 900mOhm | - | 1.65V ~ 5.5V | - | 20ns, 30ns | 300MHz | 20pC | 20pF | 2nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
NLAST4599DTT1GIC SWITCH SPDT X 1 25OHM 6TSOP |
3,083 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 25Ohm | 2Ohm | 2V ~ 5.5V | - | 14ns, 8ns | 200MHz | 3pC | 10pF, 10pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 6-TSOP |
|
DG441LDQ-E3IC SW SPST-NCX4 30OHM 16TSSOP |
4,508 |
|
数据手册 |
- | Bulk | Obsolete | SPST - NC | 1:1 | 4 | 30Ohm | 100mOhm | 2.7V ~ 12V | ±3V ~ 6V | 60ns, 35ns | 280MHz | 5pC | 5pF, 6pF | 1nA | -95dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG442LDQ-E3IC SW SPST-NOX4 30OHM 16TSSOP |
4,289 |
|
数据手册 |
- | Bulk | Obsolete | SPST - NO | 1:1 | 4 | 30Ohm | 100mOhm | 2.7V ~ 12V | ±3V ~ 6V | 60ns, 35ns | 280MHz | 5pC | 5pF, 6pF | 1nA | -95dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MM74HC4053WMIC SWITCH SPDT X 3 100OHM 16SOIC |
2,921 |
|
数据手册 |
- | Tube | Obsolete | SPDT | 2:1 | 3 | 100Ohm | 15Ohm | 2V ~ 6V | ±2V ~ 6V | 41ns, 32ns | 35MHz | - | 5pF, 30pF | 100nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MM74HC4051WMIC MUX 8:1 100OHM 16SOIC |
4,741 |
|
数据手册 |
- | Tube | Obsolete | - | 8:1 | 1 | 100Ohm | 15Ohm | 2V ~ 6V | ±2V ~ 6V | 41ns, 32ns | 35MHz | - | 5pF, 90pF | 100nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG441LDY-T1IC SWITCH SPST-NCX4 30OHM 16SOIC |
1,941 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 4 | 30Ohm | 100mOhm | 2.7V ~ 12V | ±3V ~ 6V | 60ns, 35ns | 280MHz | 5pC | 5pF, 6pF | 1nA | -95dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
PI3USB4000BZUAEXIC SWITCH SPDT X 1 8OHM 10UQFN |
2,483 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 8Ohm | 500mOhm | 2.7V ~ 6V | ±2.7V ~ 6V | 100µs, 50ns (Typ) | 1GHz | - | 5pF, 9pF | 1µA | -35dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.5x2) |
|
MAX4514CSAIC SWITCH SPST-NOX1 20OHM 8SOIC |
1,592 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 1 | 20Ohm | - | 2V ~ 12V | - | 150ns, 100ns | - | 2pC | 14pF, 14pF | 1nA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX4514ESAIC SWITCH SPST-NOX1 20OHM 8SOIC |
3,512 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 1 | 20Ohm | - | 2V ~ 12V | - | 150ns, 100ns | - | 2pC | 14pF, 14pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX4515ESAIC SWITCH SPST-NCX1 20OHM 8SOIC |
3,786 |
|
数据手册 |
- | Tube | Obsolete | SPST - NC | 1:1 | 1 | 20Ohm | - | 2V ~ 12V | - | 150ns, 100ns | - | 2pC | 14pF, 14pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
NJU4052BDIC SWITCH SP4T X 2 160OHM 16DIP |
3,395 |
|
数据手册 |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 160Ohm | 5Ohm | 3V ~ 18V | - | 500ns, 500ns | - | - | 5pF | 100nA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-DIP |
|
|
NJU4051BDIC MUX 8:1 600OHM 16DIP |
4,616 |
|
数据手册 |
- | Tube | Obsolete | - | 8:1 | 1 | 600Ohm | - | 3V ~ 18V | - | 500ns, 500ns | - | - | 5pF | 100nA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-DIP |
|
NLAS4053DTIC SWITCH SPDT X 3 26OHM 16TSSOP |
3,898 |
|
数据手册 |
- | Tube | Obsolete | SPDT | 2:1 | 3 | 26Ohm | 10Ohm | 3V ~ 5V | ±3V | 23ns, 23ns | 180MHz | 12pC | 10pF, 10pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
DG2737DN-T1-E4IC SWITCH SPDT X 1 8OHM 8MINIQFN |
4,640 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 8Ohm | 100mOhm | 2.3V ~ 4.3V | - | 60ns, 50ns | 720MHz | 10.4pC | 4.4pF, 3.8pF | 10nA | -109dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-miniQFN (1.4x1.4) |
|

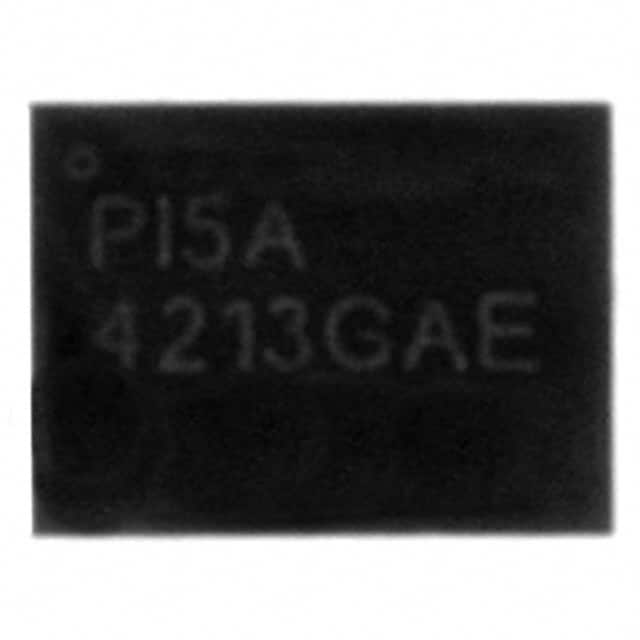

PI5A4213GAEXIC SWITCH SP3T X 2 2OHM 12CSP |
2,506 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SP3T | 3:1 | 2 | 2Ohm | 100mOhm (Max) | 1.65V ~ 5.5V | - | 15ns, 12ns | 30MHz | 35pC | 50pF | 80nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-CSP (2.0x1.5) |
|
MAX4502EXK-TIC SW SPST-NCX1 250OHM SC70-5 |
1,611 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 250Ohm | - | 2V ~ 12V | - | 75ns, 50ns | - | 1pC | 3pF, 3pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
