模拟开关、复用器、解复用器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 电路数量 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | -3db 带宽 | 电荷注入 | 通道电容（CS(off), CD(off)） | 漏电流（IS(off)）（最大） | 串扰 | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

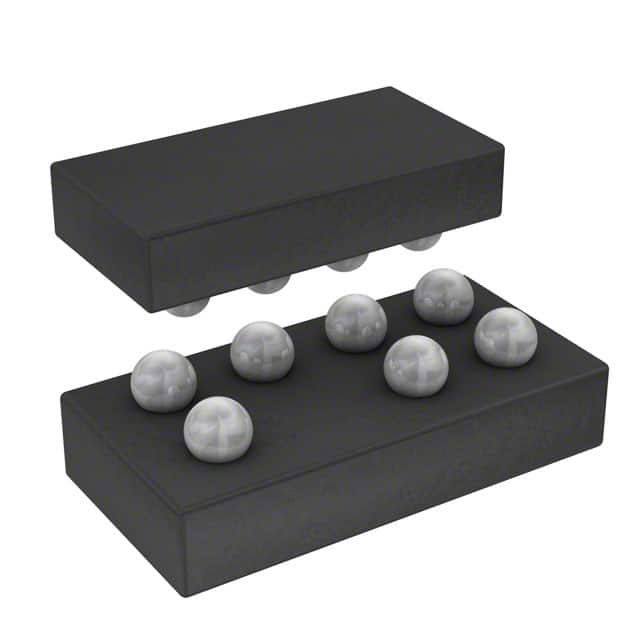

STG4159BJRIC SW SPDTX1 300MOHM 7FLIPCHIP |
1,966 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 300mOhm | 3mOhm | 1.65V ~ 4.8V | - | 38ns, 17ns | 28MHz | 140pC | 30pF | 30nA | -69dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 7-FlipChip |
|
NLAST44599DTR2IC SWITCH DPDT X 2 25OHM 16TSSOP |
3,178 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 25Ohm | - | 2V ~ 5.5V | - | 14ns, 5ns | 175MHz | 3pC | 10pF, 10pF | 1nA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
NLAS44599DTR2IC SWITCH DPDT X 2 25OHM 16TSSOP |
4,990 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 25Ohm | - | 2V ~ 5.5V | - | 14ns, 5ns | 175MHz | 3pC | 10pF, 10pF | 10µA | -90dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX14743EWC+TIC SWITCH SPDT X 2 5.5OHM 12WLP |
2,419 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 5.5Ohm (Typ) | - | 2.7V ~ 5.5V | - | - | 1GHz | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-WLP (1.22x1.62) |
|
NX3L2T66GM,125IC SW SPST-NOX2 750MOHM 8XQFNU |
1,073 |
|
数据手册 |
- | Tape & Reel (TR) | Discontinued at Digi-Key | SPST - NO | 1:1 | 2 | 750mOhm | 20mOhm | 1.4V ~ 4.3V | - | 28ns, 20ns | 60MHz | 6pC | 35pF | 10nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XQFNU (1.6x1.6) |
|
MC14053BFELGIC SWITCH SPDTX3 280OHM 16SOEIAJ |
4,125 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 3 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | 7.5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOEIAJ |
|
74VHC4316MXIC SWITCH SPST-NOX4 70OHM 16SOIC |
4,370 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 70Ohm | 5Ohm | 2V ~ 6V | ±1V ~ 6V | 30ns, 44ns | 100MHz | - | - | 50nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MM74HC4051MXIC MUX 8:1 100OHM 16SOIC |
4,474 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 100Ohm | 15Ohm | 2V ~ 6V | ±2V ~ 6V | 41ns, 32ns | 35MHz | - | 5pF, 90pF | 100nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
STG3220QTRIC SWITCH SPDT X 2 5.4OHM 10QFN |
4,259 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 5.4Ohm | 100mOhm | 1.65V ~ 4.3V | - | 15ns, 13ns | 800MHz | 6.4pC | 2pF | 20nA | -78dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-QFN (1.8x1.4) |
|
|
MC74LVX4053MIC SWITCH SPDTX3 26OHM 16SOEIAJ |
2,875 |
|
数据手册 |
- | Tube | Obsolete | SPDT | 2:1 | 3 | 26Ohm | 10Ohm | 2.5V ~ 6V | ±3V | - | 80MHz | 12pC | 10pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOEIAJ |
|
NJU4052BMIC SWITCH SP4T X 2 160OHM 16DMP |
4,599 |
|
数据手册 |
- | Tube | Active | SP4T | 4:1 | 2 | 160Ohm | 5Ohm | 3V ~ 18V | - | 500ns, 500ns | - | - | 5pF | 100nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-DMP |
|
|
NJU4051BM#IC MUX 8:1 600OHM 16DMP |
1,371 |
|
数据手册 |
- | Tube | Active | - | 8:1 | 1 | 600Ohm | - | 3V ~ 18V | - | 500ns, 500ns | - | - | 5pF | 100nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-DMP |
|
|
PI5A3159ZCEXIC SWITCH SPDT X 1 900MOHM 6TDFN |
4,058 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 900mOhm | 30mOhm | 1.8V ~ 5.5V | - | 35ns, 20ns | - | 40pC | 42pF | 2nA | -57dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TDFN (2.3x2) |
|
MC74HC4051ADIC MUX 8:1 100OHM 16SOIC |
3,175 |
|
数据手册 |
- | Tube | Obsolete | - | 8:1 | 1 | 100Ohm | 10Ohm | 2V ~ 6V | ±2V ~ 6V | - | 80MHz | - | 130pF | 200nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
FSA1156P6XIC SWITCH SPST-NOX1 900MOHM SC88 |
2,705 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 900mOhm | - | 1.65V ~ 5.5V | - | 20ns, 30ns | 300MHz | 20pC | 20pF | 2nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-88 (SC-70-6) |
|
STG4260BJRIC SW SPDTX2 500MOHM 12FLIPCHIP |
3,000 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 10mOhm | 1.65V ~ 4.8V | - | 38ns, 38ns | 50MHz | 140pC | 30pF | 30nA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-FlipChip |
|
MAX4504CUK-TIC SW SPST-NCX1 250OHM SOT23-5 |
1,883 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 250Ohm | - | - | ±1V ~ 6V | 150ns, 100ns | - | 1pC | 3pF, 3pF | 1nA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
DG2720DN-T1-E4IC SWITCH DPDTX2 7OHM 10MINIQFN |
3,418 |
|
数据手册 |
- | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 7Ohm | 350mOhm | 2.6V ~ 4.3V | - | 30ns, 25ns | 620MHz | 0.5pC | 4pF | 100nA | -49dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-miniQFN (1.4x1.8) |
|
DG417LDYIC SWITCH SPST-NCX1 20OHM 8SOIC |
2,442 |
|
数据手册 |
- | Tube | Obsolete | SPST - NC | 1:1 | 1 | 20Ohm | - | 2.7V ~ 12V | ±3V ~ 6V | 43ns, 31ns | - | 1pC | 5pF | 1nA | -71dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
DG418LDYIC SWITCH SPST-NOX1 20OHM 8SOIC |
4,954 |
|
数据手册 |
- | Tube | Obsolete | SPST - NO | 1:1 | 1 | 20Ohm | - | 2.7V ~ 12V | ±3V ~ 6V | 43ns, 31ns | - | 1pC | 5pF | 1nA | -71dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
