扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HF447/30 100'SFCBL RIBN |
4,574 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Splice Free |
|
310J101-50CBL RIBN 50COND 0.05 CLEAR 50' |
3,831 |
|
数据手册 |
- | Bulk | Discontinued at Digi-Key | Flat Cable | 50 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | - | Unshielded | Clear | 0.035" (0.89mm) | 2.500" (63.50mm) | Flexx-Sil™ | 450 V | - | - | -65°C ~ 260°C | UL E324413, CE | - |
.jpg)
|

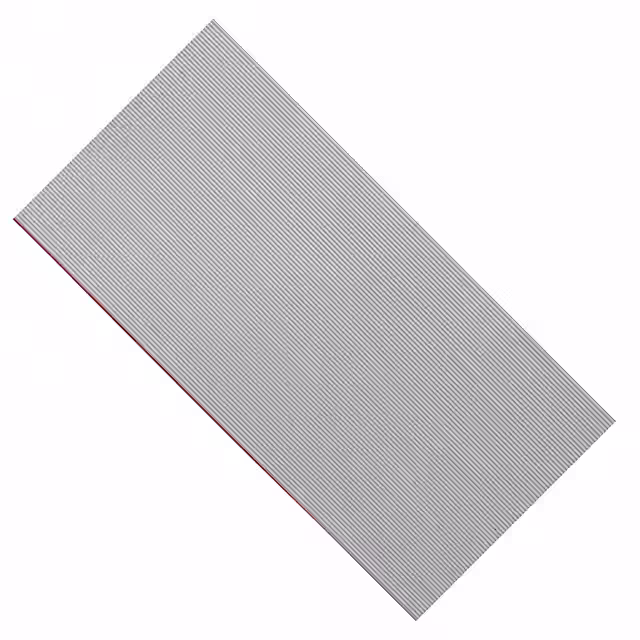

3754/80 300CBL RIBN 80COND 0.025 GRAY 100' |
4,436 |
|
数据手册 |
3754 | Bulk | Active | Flat Cable | 80 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.025" (0.64mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 30 V | - | - | -20°C ~ 105°C | UL Style 20596 | - |
|
302-28-50-GR-0300FCBL RIBN 50COND 0.05 GRAY 300' |
1,684 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 50 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
.jpg)
|
3659/50 100SFCBL RIBN 50COND 0.05 BLACK 50' |
1,045 |
|
数据手册 |
3659 | Bulk | Active | Flat Cable, Round Jacket | 50 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 2.450" (62.23mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
|
300-30-50-GR-0100FCBL RIBN 50COND 0.025 GRAY 100' |
2,115 |
|
数据手册 |
- | Bulk | Active | Flat Cable | 50 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.026" (0.66mm) | 1.250" (31.75mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | 105°C | UL Style 2678 | - |
|
|
7100271688CBL RIBN |
4,524 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HF625/40-100MCBL RIBN 40COND 0.039 GRAY 98.4' |
3,276 |
|
数据手册 |
HF625 | Bulk | Discontinued at Digi-Key | Flat Cable | 40 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.575" (40.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
|
3391/15 100CBL RIBN 15COND 0.156 MULTI 100' |
1,809 |
|
数据手册 |
3391 | Bulk | Obsolete | Flat Cable | 15 | 0.156" (3.96mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.069" (1.75mm) | 2.262" (57.45mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | - | -20°C ~ 80°C | UL Style 20122 | Zippable |
|
3517/14 100SFCBL RIBN 14COND 0.05 GRAY 50' |
2,216 |
|
数据手册 |
3517 | Bulk | Active | Flat Cable, Flat Jacket | 14 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 0.830" (21.08mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
|
301-28-44-GR-0300FCBL RIBN 44COND 0.039 GRAY 300' |
4,655 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 44 | 0.039" (1.00mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.039" (0.99mm) | 1.732" (43.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
2049/68 100SFCBL RIBN 68COND 0.025 WHITE 100' |
3,627 |
|
数据手册 |
2049 | Spool | Obsolete | Flat Cable | 68 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | Solid | Unshielded | White | 0.025" (0.64mm) | 1.700" (43.18mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 105°C | UL Style 20930 | Splice Free |
|
HF625/24-100MCBL RIBN 24COND 0.039 GRAY 164' |
3,172 |
|
数据手册 |
HF625 | Bulk | Active | Flat Cable | 24 | 0.039" (1.00mm) | 164.0' (50.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.945" (24.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
HF100/24TP 100CBL RIBN 24COND TWIST PAIR 50' |
3,979 |
|
数据手册 |
HF100 | Bulk | Active | Flat Twisted Pair | 24 (12 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 1.200" (30.48mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
|
3319/26 300CBL RIBN 26COND 0.05 BLACK 25' |
1,378 |
|
数据手册 |
3319 | Bulk | Active | Flat Cable | 26 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.300" (33.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
HF100/64TPCBL RIBN 64COND TWIST PAIR 25' |
1,956 |
|
数据手册 |
HF100 | Box | Active | Flat Twisted Pair | 64 (32 Pair Twisted) | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 3.200" (81.28mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
|
1000570501CBL RIBN 9COND 0.05 NATURAL 100' |
4,646 |
|
数据手册 |
Temp-Flex 100057 | Bulk | Discontinued at Digi-Key | Flat Cable | 9 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Natural | - | - | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | 200°C | UL Style 20424 | - |
|
|
3758/16 275SFCBL RIBN 16COND 0.05 GRAY 275' |
4,360 |
|
数据手册 |
3758 | Spool | Obsolete | Flat Cable, Round Jacket | 16 | 0.050" (1.27mm) | 275.0' (83.82m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | - | 0.750" (19.05mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free, Zippable |
.jpg)
|
3302/40 300SFCBL RIBN 40COND 0.05 MULTI 100' |
2,865 |
|
数据手册 |
3302 | Bulk | Active | Flat Cable | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free, Zippable |
.jpg)
|
3754/36CBL RIBN 36COND 0.025 GRAY 100' |
4,244 |
|
数据手册 |
3754 | Spool | Discontinued at Digi-Key | Flat Cable | 36 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.025" (0.64mm) | 0.900" (22.86mm) | Poly-Vinyl Chloride (PVC) | 30 V | - | - | -20°C ~ 105°C | UL Style 20596 | - |
