固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82144F2182K000FIXED IND 1.8UH 3.75A 0.05OHM TH EPCOS - TDK Electronics |
3,432 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 3.75 A | 6.4A | Unshielded | 50mOhm Max | 60 @ 2.52MHz | 150MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

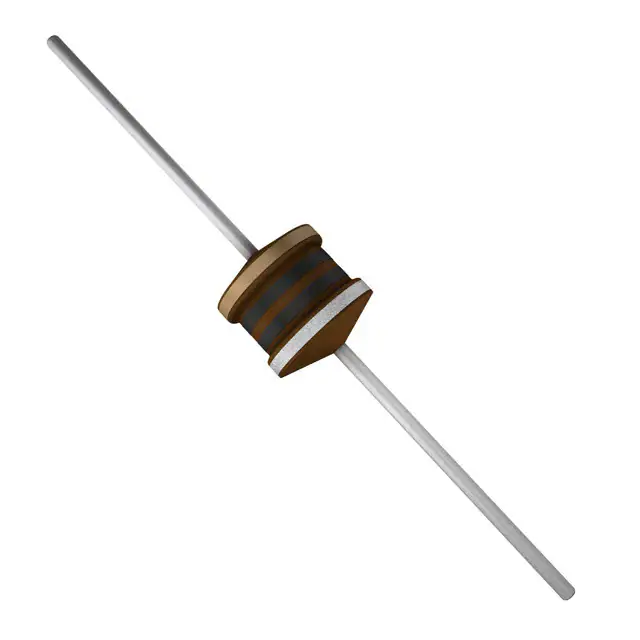

B82144F2103K000FIXED IND 10UH 2.45A 0.12OHM TH EPCOS - TDK Electronics |
2,465 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.45 A | 2.85A | Unshielded | 120mOhm Max | 40 @ 252kHz | 22MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82498F3181J000FIXED IND 180NH 340MA 530MOHM SM EPCOS - TDK Electronics |
1,391 |
|
数据手册 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±5% | 340 mA | - | Unshielded | 530mOhm Max | 45 @ 250MHz | 1.05GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

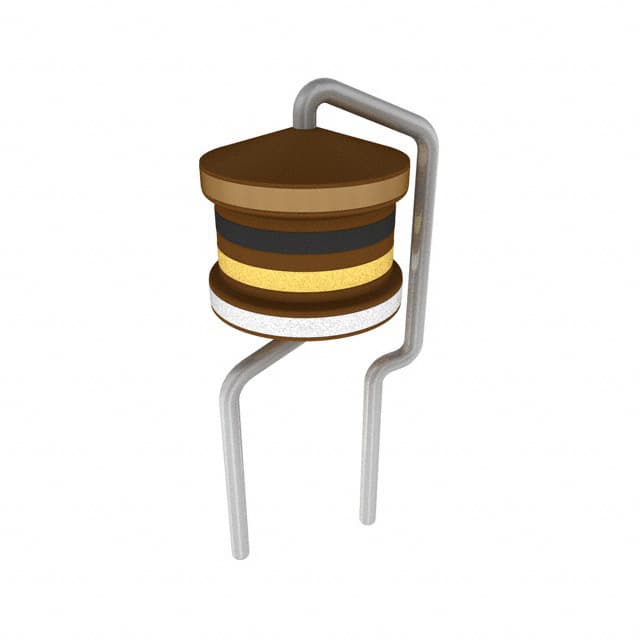

B82144B2102K000FIXED IND 1UH 4.45A 43 MOHM TH EPCOS - TDK Electronics |
2,978 |
|
数据手册 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 4.45 A | 7.7A | Unshielded | 43mOhm Max | 50 @ 2.52MHz | 200MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

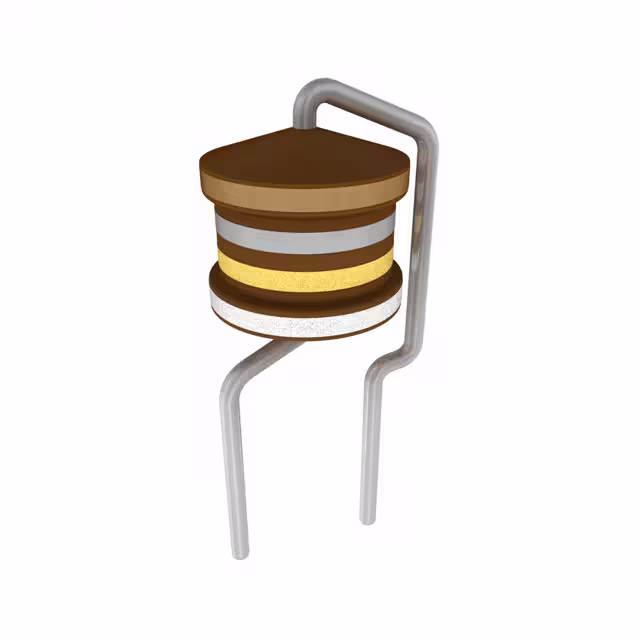

B82144B2182K000FIXED IND 1.8UH 3.75A 50 MOHM TH EPCOS - TDK Electronics |
1,557 |
|
数据手册 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±10% | 3.75 A | 6.4A | Unshielded | 50mOhm Max | 60 @ 2.52MHz | 150MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

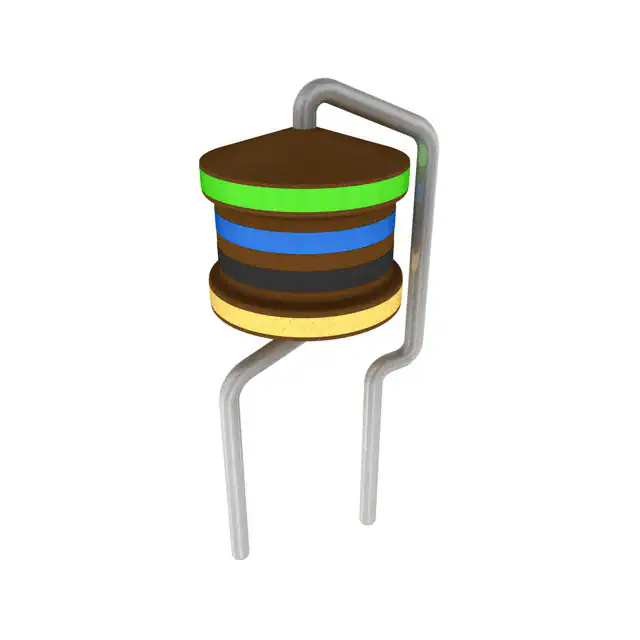

B82144B2563J000FIXED IND 56UH 1.6A 310 MOHM TH EPCOS - TDK Electronics |
5,124 |
|
数据手册 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±5% | 1.6 A | 1.3A | Unshielded | 310mOhm Max | 40 @ 79.6kHz | 6.8MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

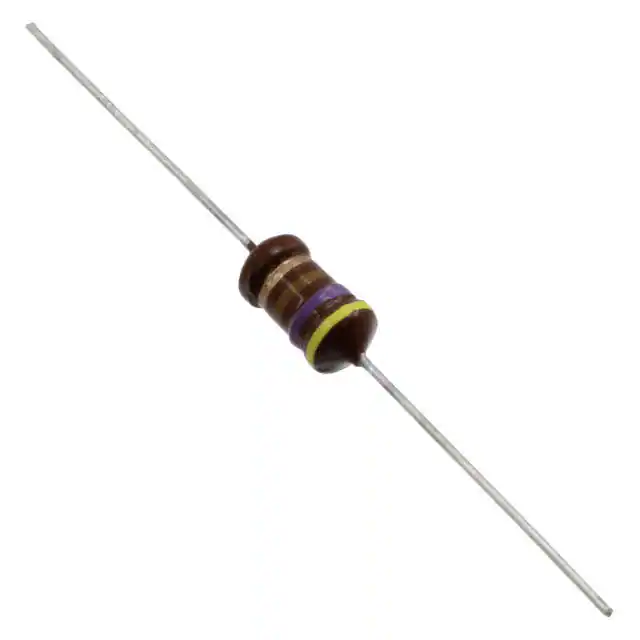

B82145A1474J000FIXED IND 470UH 510MA 1.9 OHM TH EPCOS - TDK Electronics |
3,107 |
|
数据手册 |
HLBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 510 mA | - | Unshielded | 1.9Ohm Max | 30 @ 796kHz | 1.8MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.472" L (6.50mm x 12.00mm) | - |
|

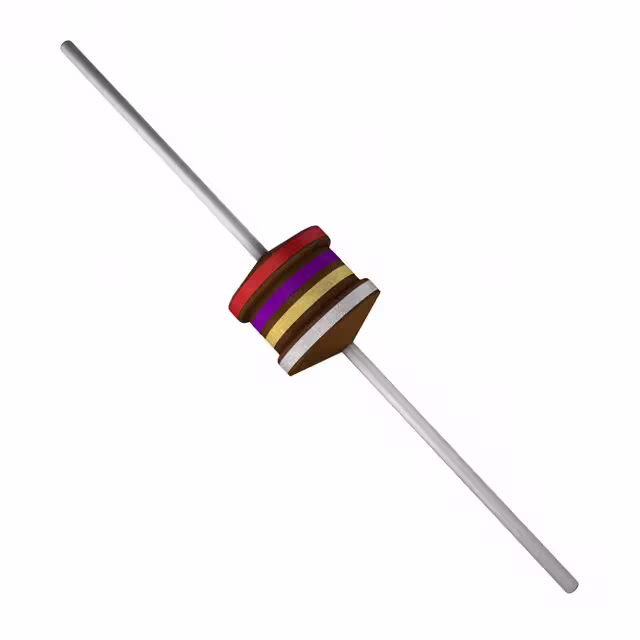

B82144F2272K000FIXED IND 2.7UH 3.55A 0.06OHM TH EPCOS - TDK Electronics |
1,983 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 3.55 A | 5.4A | Unshielded | 60mOhm Max | 60 @ 2.52MHz | 120MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
|
B82498F3331G001FIXED IND 330NH 220MA 1.5OHM SMD EPCOS - TDK Electronics |
6,629 |
|
数据手册 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±2% | 220 mA | - | Unshielded | 1.5Ohm Max | 45 @ 250MHz | 800MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

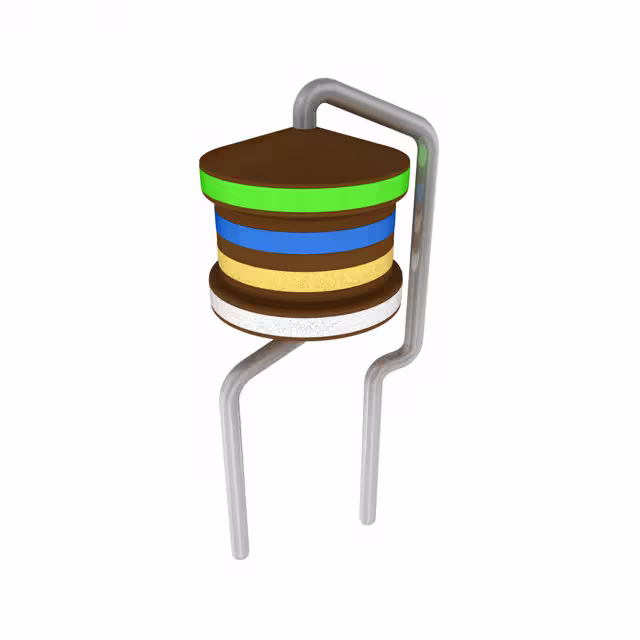

B82144B2562K000FIXED IND 5.6UH 2.95A 90 MOHM TH EPCOS - TDK Electronics |
1,584 |
|
数据手册 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 2.95 A | 3.75A | Unshielded | 90mOhm Max | 50 @ 2.52MHz | 45MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
