固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82144B1225J000FIXED IND 2.2MH 180MA 9.5 OHM TH EPCOS - TDK Electronics |
2,945 |
|
数据手册 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 180 mA | - | Unshielded | 9.5Ohm Max | 60 @ 252kHz | 1.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.571" (14.50mm) |
|
B82144A2155J000FIXED IND 1.5MH 160MA 6 OHM TH EPCOS - TDK Electronics |
2,900 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±5% | 160 mA | - | Unshielded | 6Ohm Max | 60 @ 252kHz | 1MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
B82498F3151J001FIXED IND 150NH 400MA 420MOHM SM EPCOS - TDK Electronics |
5,990 |
|
数据手册 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 400 mA | - | Unshielded | 420mOhm Max | 45 @ 250MHz | 1.15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82144F1104J000FIXED IND 100UH 760MA 0.7OHM TH EPCOS - TDK Electronics |
4,141 |
|
数据手册 |
B82144F1 | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 760 mA | - | Unshielded | 700mOhm Max | 40 @ 796kHz | 5.2MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82144B1105J000FIXED IND 1MH 280MA 4.2 OHM TH EPCOS - TDK Electronics |
2,094 |
|
数据手册 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 280 mA | - | Unshielded | 4.2Ohm Max | 60 @ 252kHz | 2.2MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.571" (14.50mm) |
|

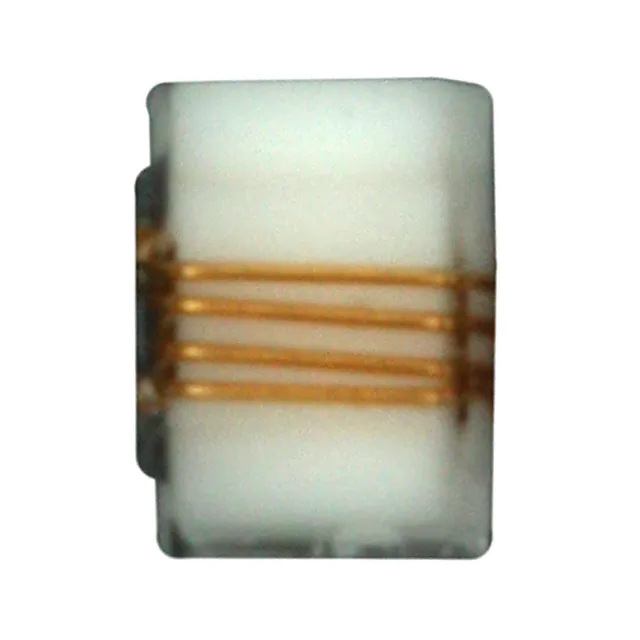

B82498F3180J000FIXED IND 18NH 700MA 80 MOHM SMD EPCOS - TDK Electronics |
30,773 |
|
数据手册 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±5% | 700 mA | - | Unshielded | 80mOhm Max | 60 @ 500MHz | 3.3GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82496C3221G000FIXED IND 220NH 110MA 7 OHM SMD EPCOS - TDK Electronics |
7,036 |
|
数据手册 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±2% | 110 mA | - | Unshielded | 7Ohm Max | 4 @ 25.2MHz | 1.3GHz | AEC-Q200 | -55°C ~ 150°C | 25.2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
B82498F3569K001FIXED IND 5.6NH 900MA 40MOHM SMD EPCOS - TDK Electronics |
5,108 |
|
数据手册 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±10% | 900 mA | - | Unshielded | 40mOhm Max | 50 @ 1GHz | 7GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82144F2183K000FIXED IND 18UH 2.2A 0.155OHM TH EPCOS - TDK Electronics |
2,971 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 2.2 A | 2.25A | Unshielded | 155mOhm Max | 50 @ 252kHz | 12MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

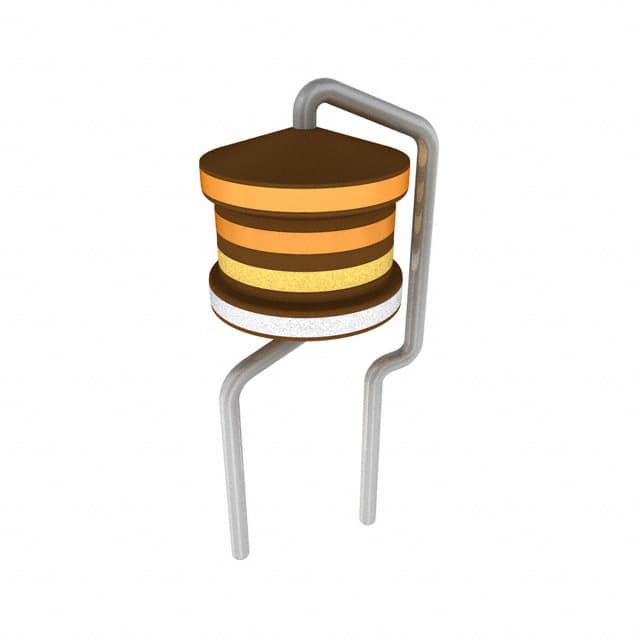

B82144B2332K000FIXED IND 3.3UH 3.5A 65 MOHM TH EPCOS - TDK Electronics |
2,956 |
|
数据手册 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 3.5 A | 5A | Unshielded | 65mOhm Max | 60 @ 2.52MHz | 100MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
