上传BOM单
固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRA73-6R8-RFIXED IND 6.8UH 2.62A 41MOHM SMD Eaton - Electronics Division |
5,448 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 2.62 A | 2.96A | Shielded | 41mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
MPIA4020V2-100-RFIXED IND 10UH 1.7A 281 MOHM SMD Eaton - Electronics Division |
3,067 |
|
数据手册 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 10 µH | ±20% | 1.7 A | 2.2A | Shielded | 281mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
.jpg)
|

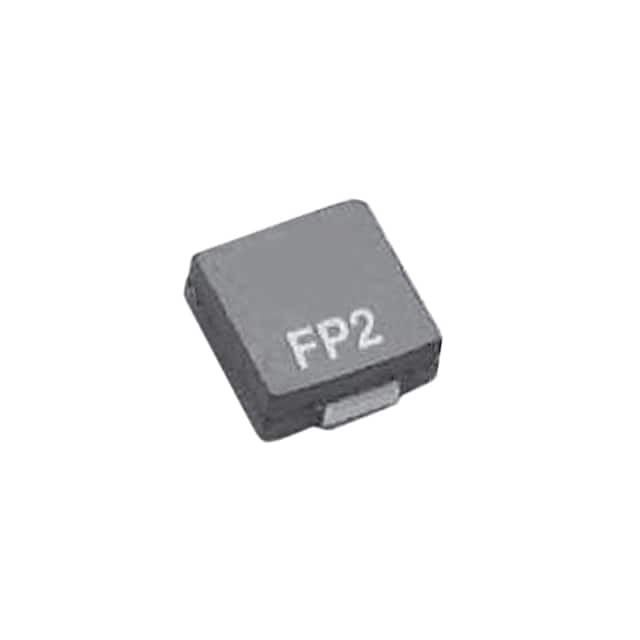

FP2-S047-RFIXED IND 47NH 39A 0.24 MOHM SMD Eaton - Electronics Division |
1,738 |
|
数据手册 |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 nH | ±15% | 39 A | 42A | Unshielded | 0.24mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.118" (3.00mm) |
|
HCM1A1305V2-330-RFIXED IND 33UH 4.5A 58 MOHM SMD Eaton - Electronics Division |
710 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 4.5 A | 5.2A | Shielded | 58mOhm Max | - | 3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
FP1208R1-R21-RFIXED IND 210NH 50A 0.29MOHM SMD Eaton - Electronics Division |
162 |
|
数据手册 |
FLAT-PAC, FP1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 210 nH | ±10% | 50 A | 65A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.315" W (12.10mm x 8.00mm) | 0.315" (8.00mm) |
|
|
MPIA4020V2-4R7-RFIXED IND 4.7UH 2.7A 118MOHM SMD Eaton - Electronics Division |
2,910 |
|
数据手册 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 2.7 A | 3.2A | Shielded | 118mOhm Max | - | 24MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
MPIA2512V2-R47-RFIXED IND 470NH 4.9A 23MOHM SMD Eaton - Electronics Division |
1,245 |
|
数据手册 |
MPIA25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±20% | 4.9 A | 6.7A | Shielded | 23mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
SD25-151-RFIXED IND 150UH 553MA 872.3 MOHM Eaton - Electronics Division |
9,166 |
|
数据手册 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 553 mA | 328mA | Shielded | 872.3mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
HCM1A1307V2-330-RFIXED IND 33UH 5A 45 MOHM SMD Eaton - Electronics Division |
190 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 5 A | 7.5A | Shielded | 45mOhm Max | - | 3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
FP0807R1-R22-RFIXED IND 220NH 49A 0.5 MOHM SMD Eaton - Electronics Division |
875 |
|
数据手册 |
FLAT-PAC, FP0807 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 49 A | 35A | Unshielded | 0.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.276" (7.00mm) |
