固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A0503-R68-RFIXED IND 680NH 8A 9.1 MOHM SMD Eaton - Electronics Division |
4,405 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±20% | 8 A | 12A | Shielded | 9.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
FP0906R1-R28-RFIXED IND 280NH 51A 0.29MOHM SMD Eaton - Electronics Division |
3,631 |
|
数据手册 |
FP0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 280 nH | ±10% | 51 A | 29A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.315" (8.00mm) |
|
FP0705R2-R15-RFIXED IND 150NH 38A 0.32MOHM SMD Eaton - Electronics Division |
3,250 |
|
数据手册 |
FLAT-PAC, FP0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 38 A | 30A | Unshielded | 0.32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.95mm) |
|
RL1011-100-RFIXED IND 10.3UH 3.62A 29MOHM TH Eaton - Electronics Division |
4,356 |
|
数据手册 |
RL1011 | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 10.3 µH | ±10% | 3.62 A | 4.67A | Unshielded | 29mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.413" (10.50mm) |
|

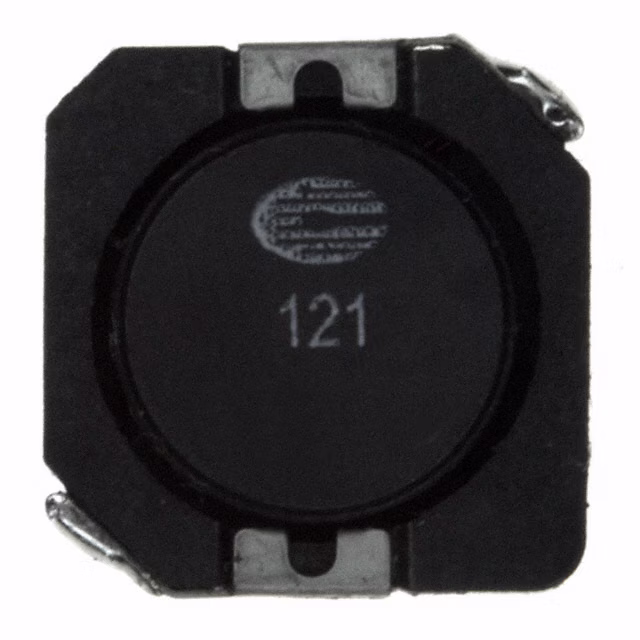

DR1030-121-RFIXED IND 120UH 800MA 602MOHM SM Eaton - Electronics Division |
7,000 |
|
数据手册 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±30% | 800 mA | 950mA | Shielded | 602mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|

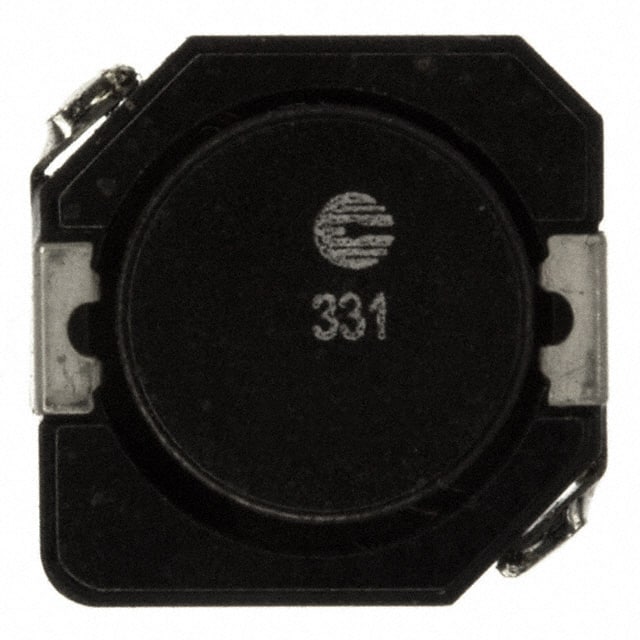

DR1040-331-RFIXED IND 330UH 520MA 1.09OHM SM Eaton - Electronics Division |
1,527 |
|
数据手册 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±30% | 520 mA | 700mA | Shielded | 1.09Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
HCM0503-100-RFIXED IND 10UH 2.8A 132 MOHM SMD Eaton - Electronics Division |
1,080 |
|
数据手册 |
HCM0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 2.8 A | 2.3A | Shielded | 132mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|

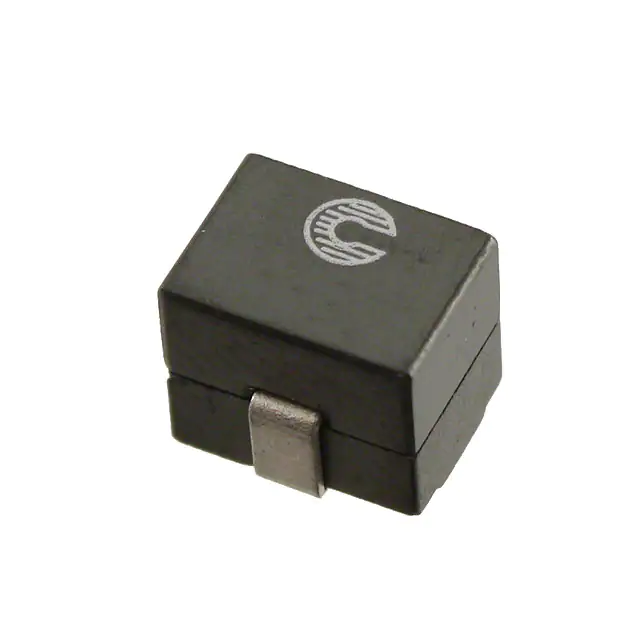

FP0708R1-R20-RFIXED IND 200NH 44A 0.35MOHM SMD Eaton - Electronics Division |
4,316 |
|
数据手册 |
FLAT-PAC, FP0708 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 200 nH | ±10% | 44 A | 36A | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.276" W (8.50mm x 7.00mm) | 0.283" (7.20mm) |
|
FP0807R1-R20-RFIXED IND 200NH 49A 0.5 MOHM SMD Eaton - Electronics Division |
2,649 |
|
数据手册 |
FLAT-PAC, FP0807 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±10% | 49 A | 38A | Unshielded | 0.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.276" (7.00mm) |
|

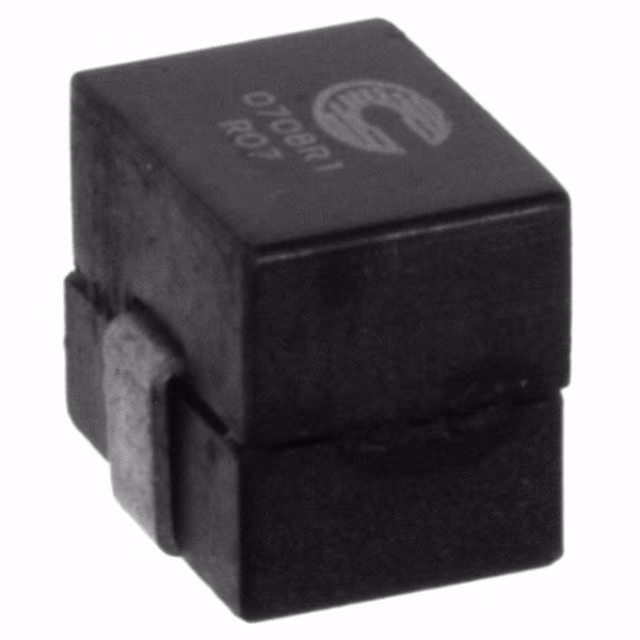

FP0708R1-R07-RFIXED IND 72NH 44A 0.35 MOHM SMD Eaton - Electronics Division |
3,297 |
|
数据手册 |
FLAT-PAC, FP0708 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 72 nH | ±10% | 44 A | 90A | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.335" L x 0.276" W (8.50mm x 7.00mm) | 0.283" (7.20mm) |
