固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPIA4020V2-R56-RFIXED IND 560NH 8A 15 MOHM SMD Eaton - Electronics Division |
4,415 |
|
数据手册 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±20% | 8 A | 10A | Shielded | 15mOhm Max | - | 87MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
|
MPIA4020V2-150-RFIXED IND 15UH 1.5A 384 MOHM SMD Eaton - Electronics Division |
1,722 |
|
数据手册 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 15 µH | ±20% | 1.5 A | 1.8A | Shielded | 384mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
MPIA2510V2-R33-RIND 0.33UH 6.6A 2.5X2.0X1.0 SM Eaton - Electronics Division |
2,367 |
|
数据手册 |
MPIA25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 330 nH | ±20% | 4.8 A | 6.6A | Shielded | 20mOhm Max | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|
DR124-121-RFIXED IND 120UH 1.3A 373.4 MOHM Eaton - Electronics Division |
4,239 |
|
数据手册 |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 1.3 A | 1.65A | Shielded | 373.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
DC14G-00-RFIXED IND 150NH Eaton - Electronics Division |
1,835 |
|
数据手册 |
- | - | Tray | Active | - | - | 150 nH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RL1218-101-RFIXED IND 100UH 2.31A 102MOHM TH Eaton - Electronics Division |
3,192 |
|
数据手册 |
RL1218 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.31 A | 3.16A | Unshielded | 102mOhm Max | - | 3MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.480" Dia (12.20mm) | 0.709" (18.00mm) |
|

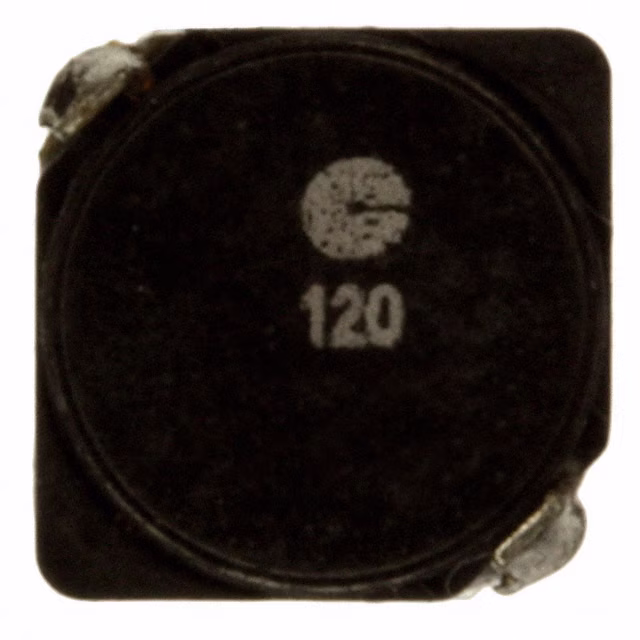

SD6030-120-RFIXED IND 11.3UH 1.99A 76MOHM SM Eaton - Electronics Division |
2,242 |
|
数据手册 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 11.3 µH | ±30% | 1.99 A | 1.2A | Shielded | 76mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SD6030-221-RFIXED IND 210.9UH 500MA 1.2 OHM Eaton - Electronics Division |
4,635 |
|
数据手册 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 210.9 µH | ±30% | 500 mA | 300mA | Shielded | 1.2Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
HCMA0503-220-RFIXED IND 22UH 1.9A 270 MOHM SMD Eaton - Electronics Division |
3,451 |
|
数据手册 |
HCMA0503 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 1.9 A | 1.9A | Shielded | 270mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
HCM1A0703-R56-RFIXED IND 560NH 10.3A 5.2MOHM SM Eaton - Electronics Division |
2,352 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 560 nH | ±20% | 10.3 A | 14A | Shielded | 5.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
