固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1305-4R7-RFIXED IND 4.7UH 9.3A 12.7MOHM SM Eaton - Electronics Division |
168 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 9.3 A | 15A | Shielded | 12.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
HC9-3R3-RFIXED IND 3.3UH 14.3A 4.87 MOHM Eaton - Electronics Division |
948 |
|
数据手册 |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±15% | 14.3 A | 22A | Unshielded | 4.87mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | 0.295" (7.50mm) |
|
HCM1305-100-RFIXED IND 10UH 9A 21.9 MOHM SMD Eaton - Electronics Division |
800 |
|
数据手册 |
HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 9 A | 16A | Shielded | 21.9mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|

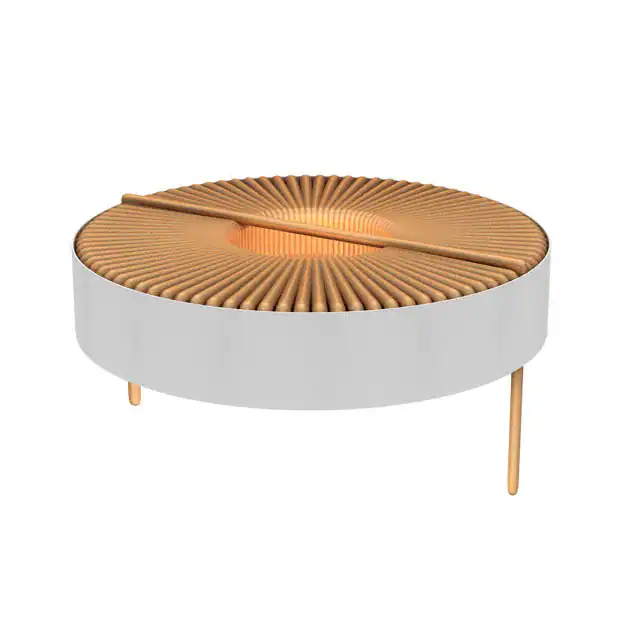

CTX10-2-52LP-RFIXED IND 10UH 4.7A 18.3 MOHM TH Eaton - Electronics Division |
264 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 4.7 A | 4.5A | Unshielded | 18.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.500" Dia (12.70mm) | 0.307" (7.80mm) |
|

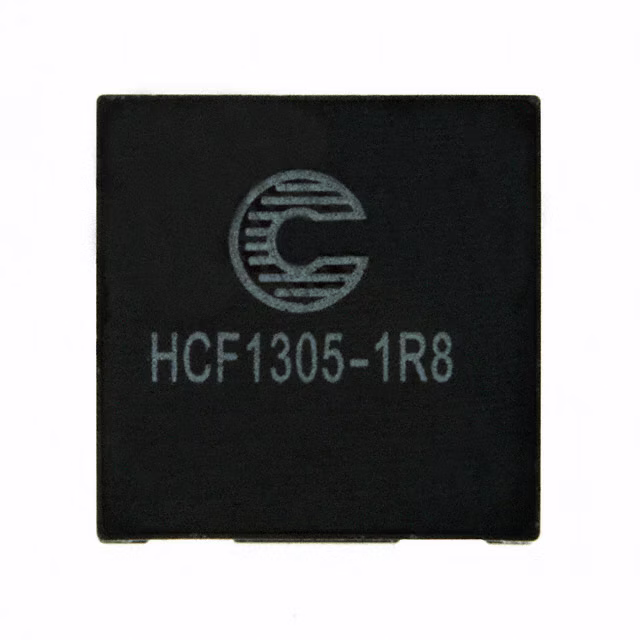

HCF1305-1R8-RFIXED IND 1.8UH 16.3A 3.1MOHM SM Eaton - Electronics Division |
587 |
|
数据手册 |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 16.3 A | 18A | Unshielded | 3.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
CTX50-2-52M-RFIXED IND 50UH 4.9A 32.6 MOHM TH Eaton - Electronics Division |
2,254 |
|
数据手册 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 4.9 A | 4.9A | Unshielded | 32.6mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | 0.925" (23.50mm) |
|
HCM1A1307-R22-RFIXED IND 220NH 48A 0.70MOHM SMD Eaton - Electronics Division |
316 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 220 nH | ±20% | 48 A | 100A | Shielded | 0.70mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HCM1A1305-R33-RFIXED IND 330NH 35A 0.92MOHM SMD Eaton - Electronics Division |
4,105 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 330 nH | ±20% | 35 A | 44A | Shielded | 0.92mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-5R6-RFIXED IND 5.6UH 8.8A 13.8MOHM SM Eaton - Electronics Division |
3,606 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 5.6 µH | ±20% | 8.8 A | 15A | Shielded | 13.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1307-560-RFIXED IND 56UH 4.6A 65 MOHM SMD Eaton - Electronics Division |
724 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 56 µH | ±20% | 4.6 A | 4.6A | Shielded | 65mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
