固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRAP127-100-RFIXED IND 10UH 6.02A 21 MOHM SMD Eaton - Electronics Division |
828 |
|
数据手册 |
DRAP127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 6.02 A | 11.2A | Shielded | 21mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.319" (8.10mm) |
|
|
DRAP127-6R8-RFIXED IND 6.8UH 6.52A 18MOHM SMD Eaton - Electronics Division |
1,190 |
|
数据手册 |
DRAP127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±20% | 6.52 A | 13.3A | Shielded | 18mOhm Max | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.319" (8.10mm) |
|
SD25-3R3-RFIXED IND 3.3UH 2.64A 38.4 MOHM Eaton - Electronics Division |
2,510 |
|
数据手册 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 2.64 A | 2.21A | Shielded | 38.4mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
SD3114-101-RFIXED IND 100UH 213MA 3.3OHM SMD Eaton - Electronics Division |
4,100 |
|
数据手册 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 213 mA | 252mA | Shielded | 3.3Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|
|
SD3114-820-RFIXED IND 82UH 227MA 2.91OHM SMD Eaton - Electronics Division |
4,100 |
|
数据手册 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 227 mA | 280mA | Shielded | 2.91Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|
UP3B-2R2-RFIXED IND 2.2UH 9.2A 7.4MOHM SMD Eaton - Electronics Division |
734 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 9.2 A | 10.2A | Unshielded | 7.4mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|
DRA125-100-RFIXED IND 10UH 5.57A 17 MOHM SMD Eaton - Electronics Division |
1,200 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 5.57 A | 7.22A | Shielded | 17mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
EXL1V1010-6R8-RINDUCTOR MOLDED 6.8UH 18.5A Eaton - Electronics Division |
544 |
|
数据手册 |
EXL1V1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 18.5 A | 18.5A | Shielded | 8.9mOhm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|

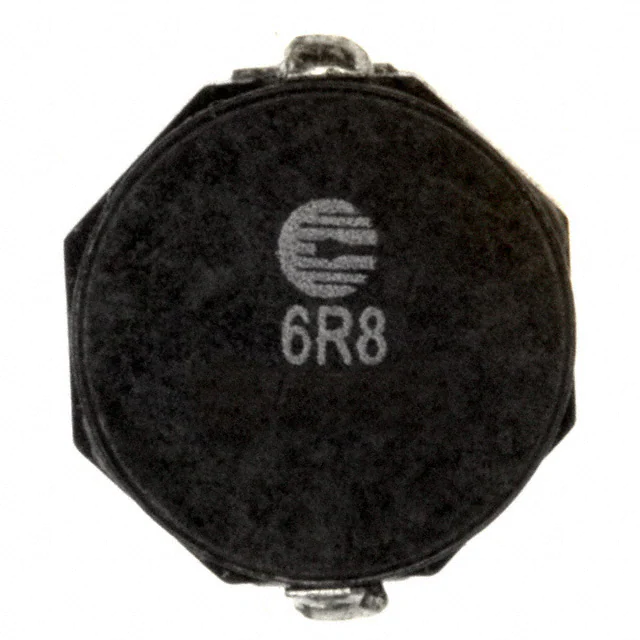

SD8350-6R8-RFIXED IND 6.8UH 3.9A 25 MOHM SMD Eaton - Electronics Division |
111 |
|
数据手册 |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.9 A | 4.4A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.177" (4.50mm) |
|
UP4B-1R0-RFIXED IND 1UH 17.3A 2.3 MOHM SMD Eaton - Electronics Division |
248 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 17.3 A | 37.3A | Unshielded | 2.3mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
