固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMMP3116F-4R7MSMD Shielded Power Inductor |
2,996 |
|
数据手册 |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 15 A | - | Shielded | 32mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.350" L x 0.327" W (8.90mm x 8.30mm) | 0.157" (4.00mm) |
|
|
CTMMP4016F-4R7MSMD Shielded Power Inductor |
3,715 |
|
数据手册 |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 14 A | - | Shielded | 16mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | 0.157" (4.00mm) |
|
|
CTMMP4016F-3R3MSMD Shielded Power Inductor |
4,589 |
|
数据手册 |
- | - | Bulk | Active | - | - | 3.3 µH | ±20% | 16 A | - | Shielded | 11.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | 0.157" (4.00mm) |
|
|
CTMMP4016F-1R0MSMD Shielded Power Inductor |
2,802 |
|
数据手册 |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 28 A | - | Shielded | 4mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | 0.157" (4.00mm) |
|
|
CTMMP4016F-5R6MSMD Shielded Power Inductor |
3,242 |
|
数据手册 |
- | - | Bulk | Active | - | - | 5.6 µH | ±20% | 12 A | - | Shielded | 23.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | 0.157" (4.00mm) |
|
|
CTMMP4016F-1R5MSMD Shielded Power Inductor |
2,803 |
|
数据手册 |
- | - | Bulk | Active | - | - | 1.5 µH | ±20% | 20 A | - | Shielded | 6.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | 0.157" (4.00mm) |
|
|
CTMMP4016F-2R2MSMD Shielded Power Inductor |
3,290 |
|
数据手册 |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 19 A | - | Shielded | 8.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | 0.157" (4.00mm) |
|
|
CTMMP4016F-8R2MSMD Shielded Power Inductor |
3,476 |
|
数据手册 |
- | - | Bulk | Active | - | - | 8.2 µH | ±20% | 10 A | - | Shielded | 31mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.453" L x 0.402" W (11.50mm x 10.20mm) | 0.157" (4.00mm) |
|
CT494HYF-102KRADIAL LEADED FIXED INDUCTOR |
1,018 |
|
数据手册 |
ct494hyf | - | Bulk | Active | Wirewound | - | 1 mH | ±10% | - | - | - | 1.176Ohm | - | - | - | -30°C ~ 105°C | - | - | Through Hole | - | - | - |
|
CTSPMA3010F-2R2MPOWR INDUCTOR SMD SHIELDED 2.2UH |
3,043 |
|
数据手册 |
CTSPMA3010F | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 2 A | 2.3A | Shielded | 118mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.134" W (3.40mm x 3.40mm) | 0.039" (1.00mm) |
|
CTH6VF-221K220UH MINI AXL P-LINE INDUCTOR |
3,703 |
|
数据手册 |
CTH6F | Axial | Bulk | Active | Wirewound | - | 220 µH | ±10% | 320 mA | 200mA | Unshielded | 1.9Ohm Max | - | 2.3MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.138" Dia x 0.394" L (3.50mm x 10.00mm) | - |
|
CTGS43F-8R2M8.2UH SMD UNSHLD POWER INDUCTOR |
2,892 |
|
数据手册 |
CTGS43F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | - | 1.26A | Unshielded | 132mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
CTGS43F-3R9M3.9UH SMD UNSHLD POWER INDUCTOR |
4,346 |
|
数据手册 |
CTGS43F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±20% | - | 1.98A | Unshielded | 76mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
CTGS43F-1R0M1.0UH SMD UNSHLD POWER INDUCTOR |
3,601 |
|
数据手册 |
CTGS43F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | - | 3.8A | Unshielded | 33mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
CTGS75F-330K33UH SMD UNSHLD POWER INDUCTOR |
4,595 |
|
数据手册 |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±10% | - | 1.2A | Unshielded | 130mOhm Max | - | - | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CTGS75F-3R3M3.3UH SMD UNSHLD POWER INDUCTOR |
2,279 |
|
数据手册 |
CTGS75F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | - | 3.7A | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|

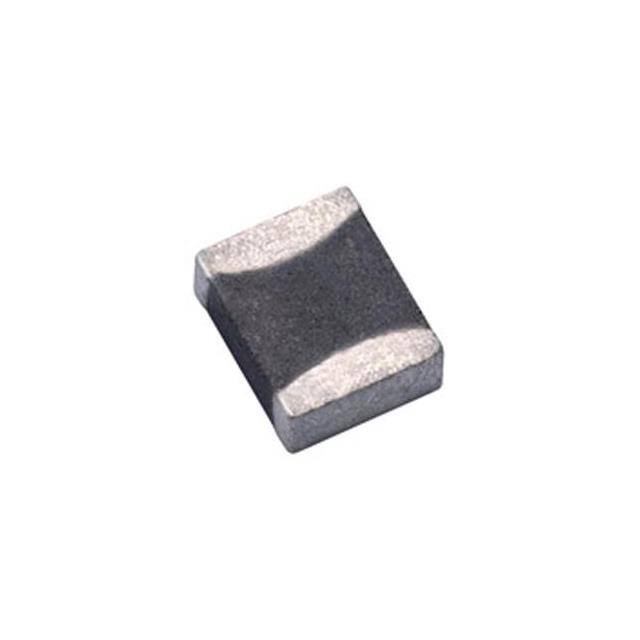

CTMPC121004PF-1R0M1.0UH SMD SHLDED POWER INDUCTOR |
4,438 |
|
数据手册 |
CTMPC121004PF | 1210 (3225 Metric) | Bulk | Obsolete | - | - | 1 µH | ±20% | 3 A | 4A | Shielded | 56mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
CTMPC121004PF-1R5M1.5UH SMD SHLDED POWER INDUCTOR |
4,332 |
|
数据手册 |
CTMPC121004PF | 1210 (3225 Metric) | Bulk | Obsolete | - | - | 1.5 µH | ±20% | 2.6 A | 3.4A | Shielded | 75mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
|
CTMPC121004PF-R47M0.47UH SMD SHLDED POWER INDUCTOR |
3,347 |
|
数据手册 |
CTMPC121004PF | 1210 (3225 Metric) | Bulk | Obsolete | - | - | 470 nH | ±20% | 3.6 A | 5.8A | Shielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.039" (1.00mm) |
|
CTSPI3D18F-1R2MSMD SHIELDED POWER INDUCTOR |
1,182 |
|
数据手册 |
CTSPI3D18F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 2.2 A | 2.4A | Shielded | 44mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.071" (1.80mm) |
