固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

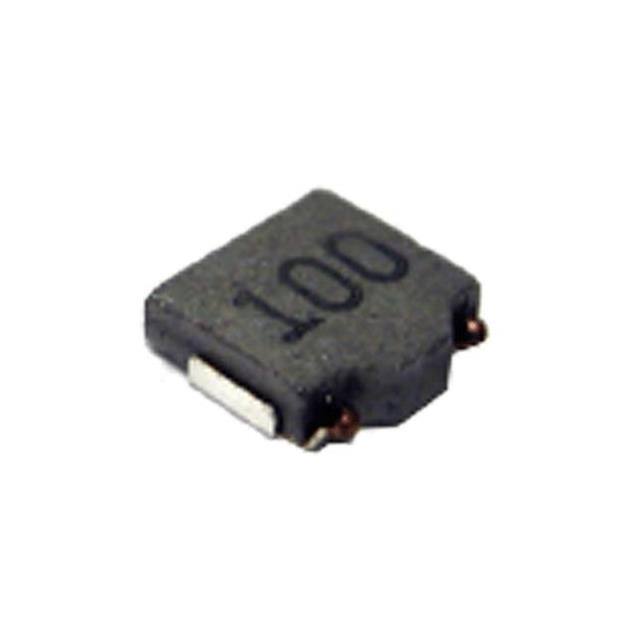

CTSPMA4010F-100MPOWER INDUCTOR SMD SHIELDED 10UH |
3,358 |
|
数据手册 |
CTSPMA4010F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.1 A | 1.4A | Shielded | 350mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.039" (1.00mm) |
|
CTC1F-102JAXL LEADED CONF COATED INDUCTOR |
3,876 |
|
数据手册 |
ctc1f | - | Tape & Reel (TR) | Active | - | - | 1 mH | ±5% | - | - | - | 72Ohm | - | 3.4MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CTC1F-R82KAXL LEADED CONF COATED INDUCTOR |
2,254 |
|
数据手册 |
ctc1f | - | Tape & Reel (TR) | Active | - | - | 820 nH | ±10% | - | - | - | 850mOhm | - | 250MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
CTDO1813PF-561HC0.5UH SMD POWER INDUCTOR |
2,148 |
|
数据手册 |
CTDO1813HCF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 560 nH | ±20% | 6 A | 7.7A | Unshielded | 10mOhm Max | - | 200MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
CTDO1813PF-331HC0.3UH SMD POWER INDUCTOR |
4,483 |
|
数据手册 |
CTDO1813HCF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | 7 A | 10A | Unshielded | 4mOhm Max | - | 600MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
CTDO1813PF-682HC6.8UH SMD POWER INDUCTOR |
2,973 |
|
数据手册 |
CTDO1813HCF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 1.8 A | 2.2A | Unshielded | 90mOhm Max | - | 45MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
CTDO1813PF-332HC3.3UH SMD POWER INDUCTOR |
4,414 |
|
数据手册 |
CTDO1813HCF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 2.7 A | 3A | Unshielded | 43mOhm Max | - | 80MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
CTDO1813PF-162HC1.6UH SMD POWER INDUCTOR |
4,151 |
|
数据手册 |
CTDO1813HCF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.6 µH | ±20% | 4.2 A | 4.5A | Unshielded | 25mOhm Max | - | 100MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
CTDO1813PF-683HC68UH SMD POWER INDUCTOR |
2,515 |
|
数据手册 |
CTDO1813HCF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 560 mA | 670mA | Unshielded | 730mOhm Max | - | 7MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
CTSR0604F-220M22UH SMD SHLDED POWER INDUCTOR |
1,939 |
|
数据手册 |
CTSR0604F | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 900 mA | - | Shielded | 190mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.193" (4.90mm) |
|
|
CTSR0604F-100M10UH SMD SHLDED POWER INDUCTOR |
2,890 |
|
数据手册 |
CTSR0604F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.3 A | - | Shielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.193" (4.90mm) |
|
|
CTSR0604F-4R7M4.7UH SMD SHLDED POWER INDUCTOR |
1,637 |
|
数据手册 |
CTSR0604F | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2 A | - | Shielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.193" (4.90mm) |
|
|
CTSR0604F-150M15UH SMD SHLDED POWER INDUCTOR |
3,557 |
|
数据手册 |
CTSR0604F | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 1.1 A | - | Shielded | 130mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.193" (4.90mm) |
|
|
CTSR0604F-102K1000UH SMD SHLDED POWR INDUCTOR |
3,643 |
|
数据手册 |
CTSR0604F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±10% | 120 mA | - | Shielded | 6.1Ohm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.193" (4.90mm) |
|
|
CTSR0604F-471K470UH SMD SHLDED POWER INDUCTOR |
2,541 |
|
数据手册 |
CTSR0604F | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 µH | ±10% | 180 mA | - | Shielded | 3.3Ohm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.193" (4.90mm) |
|
|
CTDO1813PF-153HC15UH SMD POWER INDUCTOR |
3,497 |
|
数据手册 |
CTDO1813HCF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 1.2 A | 1.5A | Unshielded | 170mOhm Max | - | 30MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
CTCDRH129F-220M22UH SMD SHIELDED POWER INDUCTOR |
3,513 |
|
数据手册 |
CTCDRH129F | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 5 A | 5A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.394" (10.00mm) |
|
|
CTCDRH129F-181M180UH SMD SHIELDED PWER INDUCTOR |
4,264 |
|
数据手册 |
CTCDRH129F | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±20% | 1.6 A | 1.6A | Shielded | 270mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.394" (10.00mm) |
|
|
CTCDRH129F-6R8N6.8UH SMD SHIELDED PWER INDUCTOR |
2,951 |
|
数据手册 |
CTCDRH129F | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±30% | 9 A | 10A | Shielded | 13.2mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.394" (10.00mm) |
|
|
CTCDRH129F-5R0N5.0UH SMD SHIELDED PWER INDUCTOR |
4,309 |
|
数据手册 |
CTCDRH129F | Nonstandard | Tape & Reel (TR) | Active | - | - | 5 µH | ±30% | 10 A | 11A | Shielded | 10.5mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.394" (10.00mm) |
