固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

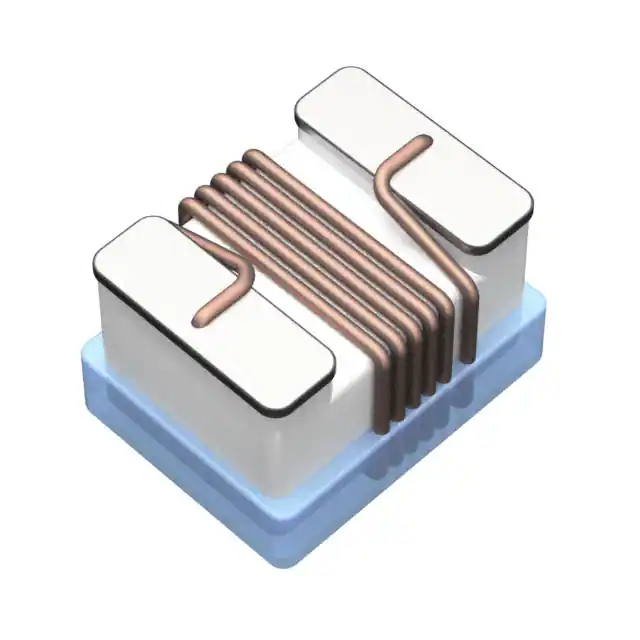

0805CS-561EJTSFIXED IND 560NH 230MA 1.9OHM SMD Delta Electronics/Components |
3,628 |
|
数据手册 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 560 nH | ±5% | 230 mA | - | Unshielded | 1.9Ohm | 23 @ 50MHz | 235MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-181EJTSFIXED IND 180NH 400MA 640MOHM SM Delta Electronics/Components |
3,454 |
|
数据手册 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 180 nH | ±5% | 400 mA | - | Unshielded | 640mOhm | 50 @ 250MHz | 870MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-560EJTSFIXED IND 56NH 500MA 340MOHM SMD Delta Electronics/Components |
3,415 |
|
数据手册 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 500 mA | - | Unshielded | 340mOhm | 60 @ 500MHz | 1.55GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-910EJTSFIXED IND 91NH 400MA 480MOHM SMD Delta Electronics/Components |
3,311 |
|
数据手册 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 91 nH | ±5% | 400 mA | - | Unshielded | 480mOhm | 65 @ 500MHz | 1.2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-121EJTSFIXED IND 120NH 400MA 510MOHM SM Delta Electronics/Components |
2,745 |
|
数据手册 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 400 mA | - | Unshielded | 510mOhm | 50 @ 250MHz | 1.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-100EJTSFIXED IND 10NH 600MA 100MOHM SMD Delta Electronics/Components |
2,000 |
|
数据手册 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 600 mA | - | Unshielded | 100mOhm | 60 @ 500MHz | 4.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-121EKTSFIXED IND 120NH 400MA 510MOHM SM Delta Electronics/Components |
2,000 |
|
数据手册 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 120 nH | ±10% | 400 mA | - | Unshielded | 510mOhm | 50 @ 250MHz | 1.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
0402HP-220EGTSFIXED IND 22NH 800MA 160MOHM SMD Delta Electronics/Components |
1,355 |
|
数据手册 |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 22 nH | ±2% | 800 mA | - | Unshielded | 160mOhm | - | 3.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0805CS-560EGTSFIXED IND 56NH 500MA 340MOHM SMD Delta Electronics/Components |
1,235 |
|
数据手册 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 56 nH | ±2% | 500 mA | - | Unshielded | 340mOhm | 60 @ 500MHz | 1.55GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 | 0.090" L x 0.071" W (2.29mm x 1.80mm) | 0.061" (1.55mm) |
|
|
0805CS-682EKFSFIXED IND 6.8UH 200MA 2.7OHM SMD Delta Electronics/Components |
3,661 |
|
数据手册 |
0805CS | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 200 mA | - | Unshielded | 2.7Ohm | 15 @ 7.96MHz | 36MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.71mm) | 0.057" (1.45mm) |
