固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0402HC-6N0ECTSFIXED IND 6NH 760MA 56 MOHM SMD Delta Electronics/Components |
3,571 |
|
数据手册 |
0402HC | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6 nH | ±0.2nH | 760 mA | - | Unshielded | 56mOhm | 30 @ 250MHz | 7.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) |
|
0402HP-470EKTSFIXED IND 47NH 420MA 580MOHM SMD Delta Electronics/Components |
3,550 |
|
数据手册 |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±10% | 420 mA | - | Unshielded | 580mOhm | - | 2.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
0402HS-2N0EKTSFIXED IND 2NH 1.04A 70 MOHM SMD Delta Electronics/Components |
3,497 |
|
数据手册 |
0402HS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2 nH | ±10% | 1.04 A | - | Unshielded | 70mOhm | 16 @ 250MHz | 11.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402HS-3N3EKTSFIXED IND 3.3NH 840MA 66MOHM SMD Delta Electronics/Components |
3,306 |
|
数据手册 |
0402HS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.3 nH | ±10% | 840 mA | - | Unshielded | 66mOhm | 19 @ 250MHz | 7GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
|
0402HS-5N6EJTSFIXED IND 5.6NH 760MA 83MOHM SMD Delta Electronics/Components |
1,911 |
|
数据手册 |
0402HS | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 760 mA | - | Unshielded | 83mOhm | 20 @ 250MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.050" L x 0.030" W (1.27mm x 0.76mm) | 0.024" (0.60mm) |
|
1210HS-563EKFSFIXED IND 56UH 85MA 4.9 OHM SMD Delta Electronics/Components |
3,425 |
|
数据手册 |
1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 85 mA | - | Unshielded | 4.9Ohm | 25 @ 2.52MHz | 13MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.094" (2.40mm) |
|
|
1210HS-473EKFSFIXED IND 47UH 100MA 4.3 OHM SMD Delta Electronics/Components |
3,955 |
|
数据手册 |
1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 100 mA | - | Unshielded | 4.3Ohm | 25 @ 2.52MHz | 15MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.094" (2.40mm) |
|
|
1210HS-393EJFSFIXED IND 39UH 110MA 3.9 OHM SMD Delta Electronics/Components |
3,615 |
|
数据手册 |
1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±5% | 110 mA | - | Unshielded | 3.9Ohm | 25 @ 2.52MHz | 16MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.094" (2.40mm) |
|
|
HCB0750-700L2FIXED IND 70NH 41A 0.25MOHM SMD Delta Electronics/Components |
2,916 |
|
数据手册 |
HCB0750 | Nonstandard | Tape & Reel (TR) | Active | - | - | 70 nH | ±20% | 41 A | 75A | Unshielded | 0.25mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.197" (5.00mm) |
|

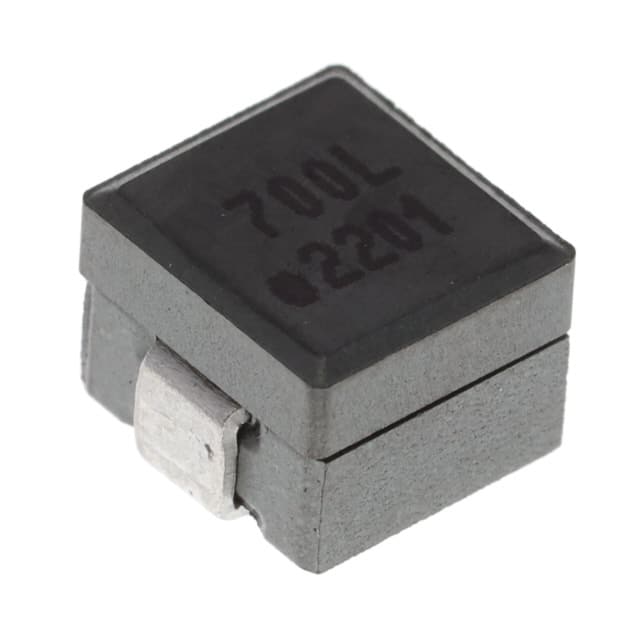

HCB0750-700LFIXED IND 70NH 48A 0.19MOHM SMD Delta Electronics/Components |
2,453 |
|
数据手册 |
HCB0750 | Nonstandard | Tape & Reel (TR) | Active | - | - | 70 nH | ±20% | 48 A | 75A | Unshielded | 0.19mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.276" W (7.20mm x 7.00mm) | 0.205" (5.20mm) |
