固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMMP2707F-R68MSMD Shielded Power Inductor Central Technologies |
4,943 |
|
数据手册 |
- | - | Bulk | Active | - | - | 0.68 µH | ±20% | 15 A | - | Shielded | 13.9mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.071" (1.80mm) |
|
|
CTMMP2707F-1R0MSMD Shielded Power Inductor Central Technologies |
1,972 |
|
数据手册 |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 11.5 A | - | Shielded | 18.5mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.071" (1.80mm) |
|
CTCDRH6D28F-7R3N7.3UH SMD SHIELDED POWR INDUCTOR Central Technologies |
4,784 |
|
数据手册 |
CTCDRH6D28F | Nonstandard | Tape & Reel (TR) | Active | - | - | 7.3 µH | ±30% | - | 2.1A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 80°C | 10 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
|
CTMMP2208F-4R7MSMD Shielded Power Inductor Central Technologies |
1,400 |
|
数据手册 |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 5 A | - | Shielded | 90mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.071" (1.80mm) |
|
|
CTMMP2208F-1R0MSMD Shielded Power Inductor Central Technologies |
3,168 |
|
数据手册 |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 7 A | - | Shielded | 30mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.071" (1.80mm) |
|
|
CTMMP2208F-1R5MSMD Shielded Power Inductor Central Technologies |
2,644 |
|
数据手册 |
- | - | Bulk | Active | - | - | 1.5 µH | ±20% | 6.5 A | - | Shielded | 35mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.071" (1.80mm) |
|

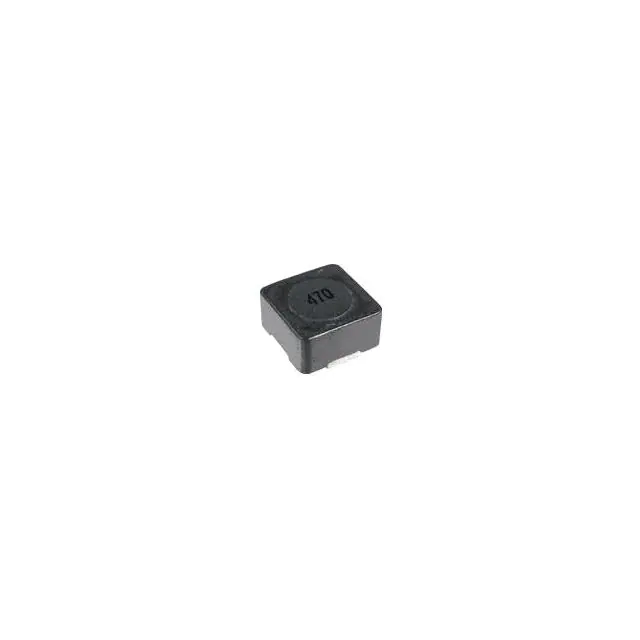

CTCDRH74BF-470M47UH SMD SHIELDED POWER INDUCTOR Central Technologies |
2,497 |
|
数据手册 |
CTCDRH74BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 880 mA | - | Shielded | 260mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.177" (4.50mm) |
|
|
CTMMP5015F-R82MSMD Shielded Power Inductor Central Technologies |
3,774 |
|
数据手册 |
- | - | Bulk | Active | - | - | 0.82 µH | ±20% | 44 A | - | Shielded | 3mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.551" L x 0.508" W (14.00mm x 12.90mm) | 0.150" (3.80mm) |
|
CTCDRH124F-470M47UH SMD SHIELDED POWR INDUCTOR Central Technologies |
1,786 |
|
数据手册 |
CTCDRH124F | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.9 A | - | Shielded | 150mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
CTSDB0705F-181M180UH SMD SHLDED POWER INDUCTOR Central Technologies |
1,225 |
|
数据手册 |
CTSDB0705F | Nonstandard | Tape & Reel (TR) | Active | - | - | 180 µH | ±20% | 380 mA | - | Shielded | 700mOhm Max | - | - | - | -40°C ~ 75°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.236" (6.00mm) |
