固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

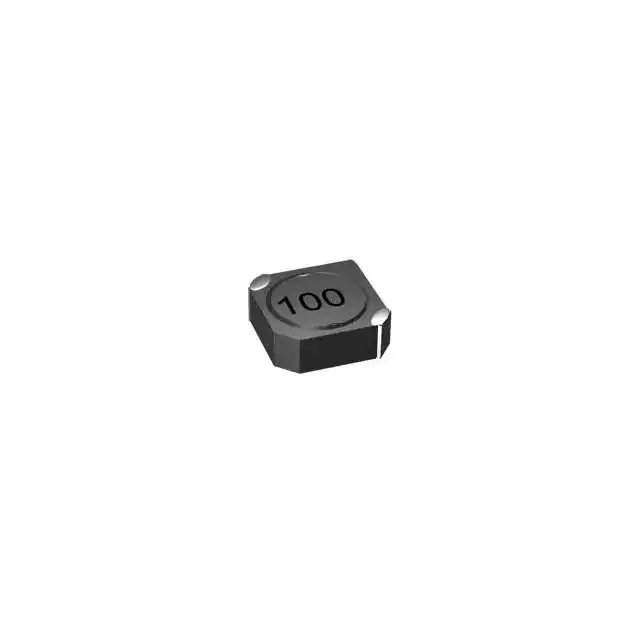

CTCDRH2D14F-5R6N5.6UH SMD SHIELDED POWR INDUCTOR Central Technologies |
1,000 |
|
数据手册 |
CTCDRH2D14F | Nonstandard | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±30% | 980 mA | 950mA | Shielded | 256mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.039" (1.00mm) |
|
CTMC1812SF-561JSMD FERRITE CORE WW INDUCTOR Central Technologies |
510 |
|
数据手册 |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±5% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 796kHz | 3MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-1R0KSMD FERRITE CORE WW INDUCTOR Central Technologies |
500 |
|
数据手册 |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.96MHz | 250MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTCDRH2D14F-1R5N1.5UH SMD SHIELDED POWR INDUCTOR Central Technologies |
1,855 |
|
数据手册 |
CTCDRH2D14F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±30% | 1.8 A | 1.8A | Shielded | 63mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.039" (1.00mm) |
|
CTLQ1812NF-470K47UH 220MA SMD WW INDUCTOR Central Technologies |
500 |
|
数据手册 |
CTLQ1812NF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±10% | 220 mA | - | Unshielded | 1.5Ohm Max | 35 @ 1MHz | 10MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
CTLQ1812NF-102K1MH 50MA SMD WW INDUCTOR Central Technologies |
490 |
|
数据手册 |
CTLQ1812NF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±10% | 50 mA | - | Unshielded | 25Ohm Max | 40 @ 252kHz | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
CTLQ1812NF-5R6K5.6UH 500MA SMD WW INDUCTOR Central Technologies |
4,278 |
|
数据手册 |
CTLQ1812NF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±10% | 500 mA | - | Unshielded | 470mOhm Max | 30 @ 1MHz | 33MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
CTDSS1005F-105K1000UH SMD SHIELDED PWR INDUCTOR Central Technologies |
600 |
|
数据手册 |
CTDSS1005F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±10% | 200 mA | - | Shielded | 3.2Ohm Max | 65 @ 252kHz | 2MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.201" (5.10mm) |
|
CTDO3308PF-684680UH SMD POWER INDUCTOR Central Technologies |
1,000 |
|
数据手册 |
CTDO3308PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 280 mA | 330mA | Unshielded | 4.4Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
CTDO3340PF-334330UH SMD POWER INDUCTOR Central Technologies |
900 |
|
数据手册 |
CTDO3340PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 600 mA | 1.2A | Unshielded | 700mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.450" (11.43mm) |
