固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

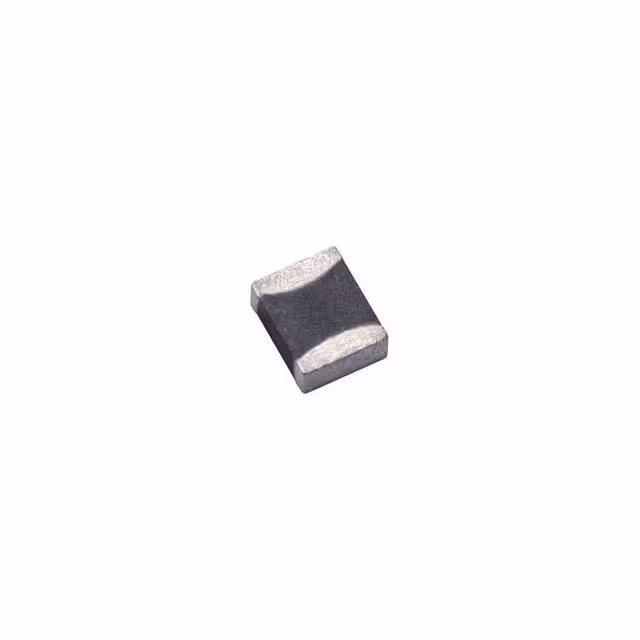

CTMPC080605F-1R0M1.0UH SMD SHLDED POWER INDUCTOR Central Technologies |
4,082 |
|
数据手册 |
CTMPC080605F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 2.3 A | 3.1A | Shielded | 82mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
CTMPC080605F-R47M0.47UH SMD SHLDED POWER INDUCTOR Central Technologies |
4,259 |
|
数据手册 |
CTMPC080605F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 3.2 A | 3.8A | Shielded | 52mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
CTMPC080605F-1R5M1.5UH SMD SHLDED POWER INDUCTOR Central Technologies |
4,049 |
|
数据手册 |
CTMPC080605F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 2.2 A | 2.6A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
CTMPC080605F-R24M0.24UH SMD SHLDED POWER INDUCTOR Central Technologies |
4,700 |
|
数据手册 |
CTMPC080605F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 4.2 A | 5.5A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|

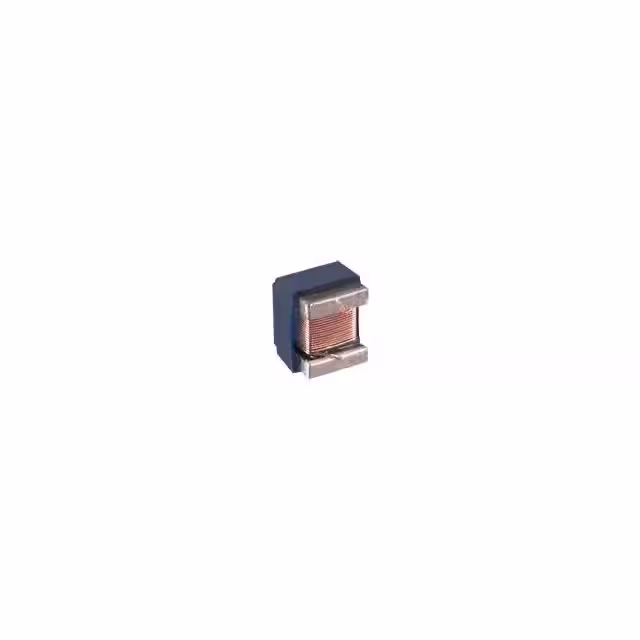

CT1008LDLSF-3R3JSMD FER CORE WIRE-WOUND INDUCTOR Central Technologies |
2,468 |
|
数据手册 |
ct1008ldlsf | - | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±5% | - | - | - | 210mOhm | - | 54MHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT1008LDLSF-2R2JSMD FER CORE WIRE-WOUND INDUCTOR Central Technologies |
3,193 |
|
数据手册 |
ct1008ldlsf | - | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±5% | - | - | - | 155mOhm | - | 75MHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT1008LDLSF-100JSMD FER CORE WIRE-WOUND INDUCTOR Central Technologies |
3,562 |
|
数据手册 |
ct1008ldlsf | - | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±5% | - | - | - | 480mOhm | - | 20MHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT1008LDLSF-6R8JSMD FER CORE WIRE-WOUND INDUCTOR Central Technologies |
3,230 |
|
数据手册 |
ct1008ldlsf | - | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±5% | - | - | - | 315mOhm | - | 28MHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
|
CT1008LDLSF-4R7JSMD FER CORE WIRE-WOUND INDUCTOR Central Technologies |
4,466 |
|
数据手册 |
ct1008ldlsf | - | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±5% | - | - | - | 435mOhm | - | 48MHz | - | -25°C ~ 105°C | - | - | Surface Mount | - | - | - |
|
CT0603CTF-2N5JSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
3,639 |
|
数据手册 |
ct0603ctf | - | Tape & Reel (TR) | Active | Wirewound | - | 2.5 nH | ±5% | - | - | - | 60mOhm | - | 11GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
