固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT0603CSF-5N1GSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
290 |
|
数据手册 |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 5.1 nH | ±2% | - | - | - | 140mOhm | - | 5.7GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-R18GSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
290 |
|
数据手册 |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 180 nH | ±2% | - | - | - | 1.25Ohm | - | 990MHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|
|
CT0603CSF-R11GSMD CER CORE WIRE-WOUND INDUCTOR Central Technologies |
290 |
|
数据手册 |
ct0603csf | - | Tape & Reel (TR) | Active | Wirewound | - | 110 nH | ±2% | - | - | - | 610mOhm | - | 1.35GHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | - | - |
|

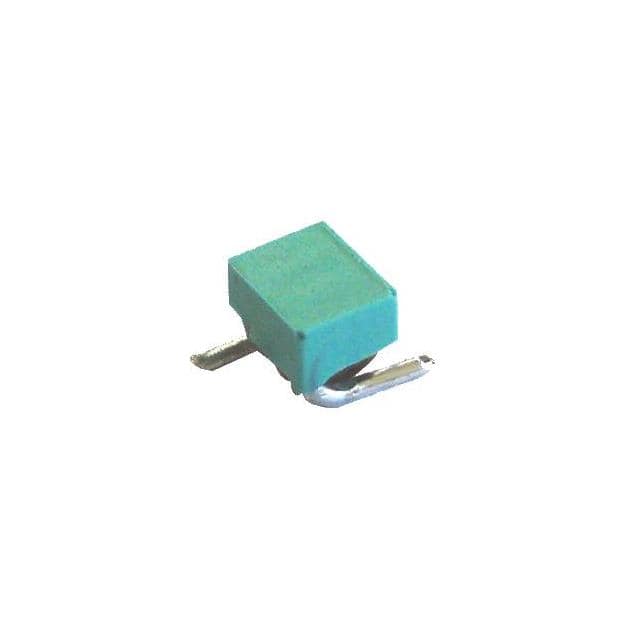

CTBF09TGSMD AIR CORE INDUCTOR Central Technologies |
200 |
|
数据手册 |
ctbf | - | Tape & Reel (TR) | Active | Wirewound | - | 35.5 nH | ±2% | - | - | - | 6.8mOhm | - | 1.5GHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
CT1812SMSF-R12JSMD AIR CORE INDUCTOR Central Technologies |
900 |
|
数据手册 |
ct1812smsf | - | Tape & Reel (TR) | Active | Wirewound | - | 120 nH | ±5% | - | - | - | 10.7mOhm | - | 1.1MHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
CTLQ1210CF-101K100UH 100MA SMD WW INDUCTOR Central Technologies |
1,000 |
|
数据手册 |
CTLQ1210CF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±10% | 100 mA | - | Unshielded | 5Ohm Max | - | 10MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
|
CTLQ1210CF-4R7M4.7UH 450MA SMD WW INDUCTOR Central Technologies |
507 |
|
数据手册 |
CTLQ1210CF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 450 mA | - | Unshielded | 280mOhm Max | - | 43MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
CTGS32F-4R7M4.7UH SMD UNSHLD POWER INDUCTOR Central Technologies |
1,000 |
|
数据手册 |
CTGS32F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1.2 A | 1.35A | Unshielded | 150mOhm Max | 18 @ 7.96MHz | 45MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
|
CTGS32F-180M18UH SMD UNSHLD POWER INDUCTOR Central Technologies |
130 |
|
数据手册 |
CTGS32F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 18 µH | ±20% | 580 mA | 750mA | Unshielded | 460mOhm Max | 18 @ 2.52MHz | 28MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.110" W (3.00mm x 2.80mm) | 0.110" (2.80mm) |
|
CTMPH100805F-1R0M1UH SMD MOLDED SHLD INDUCTOR Central Technologies |
4,084 |
|
数据手册 |
CTMPH100805F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 3.6 A | 4.4A | Shielded | 42mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
