固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7440660022FIXED IND 2.2UH 6.7A 10.5MOHM SM Würth Elektronik |
1,024 |
|
数据手册 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 6.7 A | 6.8A | Shielded | 10.5mOhm Max | - | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|

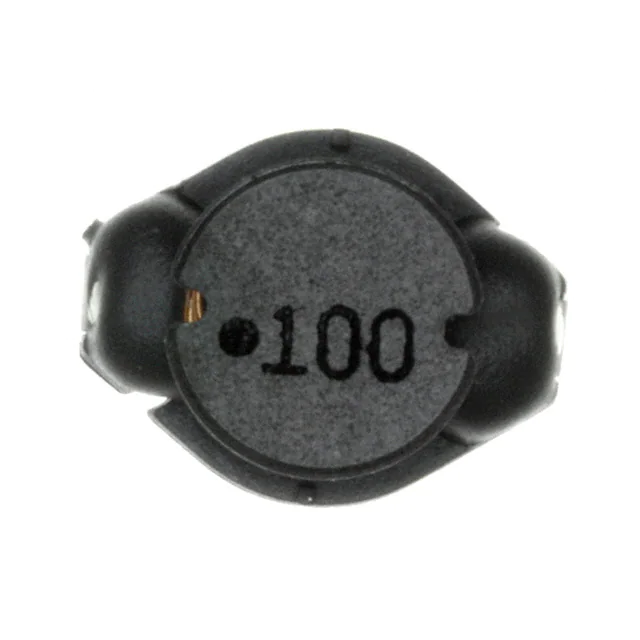

7445610FIXED IND 10UH 3.3A 45 MOHM SMD Würth Elektronik |
386 |
|
数据手册 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.3 A | 5A | Unshielded | 45mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
74438356022HTFIXED IND 2.2UH 4.5A 32.2MOHM SM Würth Elektronik |
3,847 |
|
数据手册 |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 4.5 A | 5.6A | Shielded | 32.2mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
74438356047HTFIXED IND 4.7UH 3A 74.8MOHM SMD Würth Elektronik |
2,580 |
|
数据手册 |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 3 A | 3.7A | Shielded | 74.8mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
74438356056HTFIXED IND 5.6UH 2.9A 80.5MOHM SM Würth Elektronik |
2,533 |
|
数据手册 |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 5.6 µH | ±20% | 2.9 A | 3.5A | Shielded | 80.5mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
744383560047HTFIXED IND 470NH 8.5A 8.1MOHM SMD Würth Elektronik |
1,317 |
|
数据手册 |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | - | - | 470 nH | ±30% | 8.5 A | 10A | Shielded | 8.1mOhm Max | - | 83MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
7447023WE-FI LEADED TOROIDAL LINE CHOKE Würth Elektronik |
835 |
|
数据手册 |
WE-FI | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Iron Powder | 60 µH | ±20% | 4.1 A | - | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.630" Dia (16.00mm) | 0.390" (9.90mm) |
|
|
7447018WE-FI LEADED TOROIDAL LINE CHOKE Würth Elektronik |
786 |
|
数据手册 |
WE-FI | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 2.5 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.650" Dia (16.50mm) | 0.421" (10.70mm) |
1.5mm.jpg)
|
78438335470FIXED IND 47UH 390MA 2.3 OHM SMD Würth Elektronik |
6,467 |
|
数据手册 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 47 µH | ±30% | 390 mA | 1.18A | Shielded | 2.3Ohm Max | - | 8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
78438335220FIXED IND 22UH 600MA 1.04OHM SMD Würth Elektronik |
535 |
|
数据手册 |
WE-MAIA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 22 µH | ±30% | 600 mA | 1.6A | Shielded | 1.04Ohm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
