固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1mm.jpg)
|
78438323033FIXED IND 3.3UH 1.25A 264MOHM SM Würth Elektronik |
5,835 |
|
数据手册 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 3.3 µH | ±30% | 1.25 A | 2.1A | Shielded | 264mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
78438323100FIXED IND 10UH 600MA 843MOHM SMD Würth Elektronik |
5,062 |
|
数据手册 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 10 µH | ±30% | 600 mA | 1.35A | Shielded | 843mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

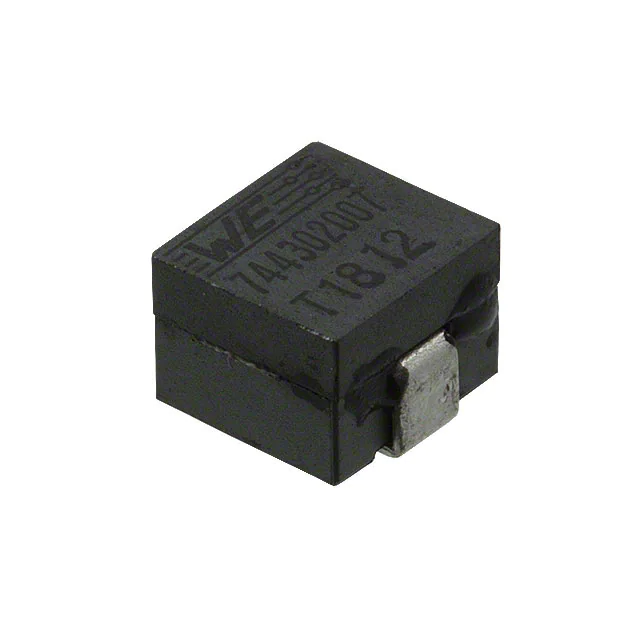

744302007FIXED IND 72NH 30A 0.000235OHM Würth Elektronik |
1,895 |
|
数据手册 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 72 nH | ±20% | 30 A | 64A | Shielded | 0.235mOhm | - | 150MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7050 | 0.281" L x 0.276" W (7.15mm x 7.00mm) | 0.197" (5.00mm) |
|
74438367022FIXED IND 2.2UH 7.5A 16.1MOHM SM Würth Elektronik |
1,205 |
|
数据手册 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 7.5 A | 7.5A | Shielded | 16.1mOhm Max | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
|
74438367047FIXED IND 4.7UH 5.5A 34.5MOHM SM Würth Elektronik |
1,040 |
|
数据手册 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 5.5 A | 5.4A | Shielded | 34.5mOhm Max | - | 18.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
|
74438367010FIXED IND 1UH 9A 11.5 MOHM SMD Würth Elektronik |
850 |
|
数据手册 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 9 A | 9.6A | Shielded | 11.5mOhm Max | - | 44.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
|
74438367033FIXED IND 3.3UH 6.2A 23MOHM SMD Würth Elektronik |
603 |
|
数据手册 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 6.2 A | 7.3A | Shielded | 23mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
|
74438367082FIXED IND 8.2UH 4.4A 57.5MOHM SM Würth Elektronik |
392 |
|
数据手册 |
WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | - | - | 8.2 µH | ±20% | 4.4 A | 5A | Shielded | 57.5mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.122" (3.10mm) |
|
744066101FIXED IND 100UH 1.2A 300MOHM SMD Würth Elektronik |
11,332 |
|
数据手册 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.2 A | 1.2A | Shielded | 300mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
|
|
744066150FIXED IND 15UH 3.2A 50 MOHM SMD Würth Elektronik |
5,573 |
|
数据手册 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 3.2 A | 3.25A | Shielded | 50mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.161" (4.10mm) |
