固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744902015FIXED IND 1.5NH 800MA 200MOHM SM Würth Elektronik |
2,770 |
|
数据手册 |
WE-TCI | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1.5 nH | ±0.1nH | 800 mA | - | Unshielded | 200mOhm Max | 15 @ 300MHz | 10GHz | - | -40°C ~ 125°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
744902127FIXED IND 27NH 250MA 2 OHM SMD Würth Elektronik |
4,202 |
|
数据手册 |
WE-TCI | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 27 nH | ±2% | 250 mA | - | Unshielded | 2Ohm Max | 15 @ 300MHz | 2GHz | - | -40°C ~ 125°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
74479776222FIXED IND 2.2UH 1.2A 110MOHM SMD Würth Elektronik |
3,704 |
|
数据手册 |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 1.2 A | 400mA | Shielded | 110mOhm | 10 @ 1MHz | 75MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

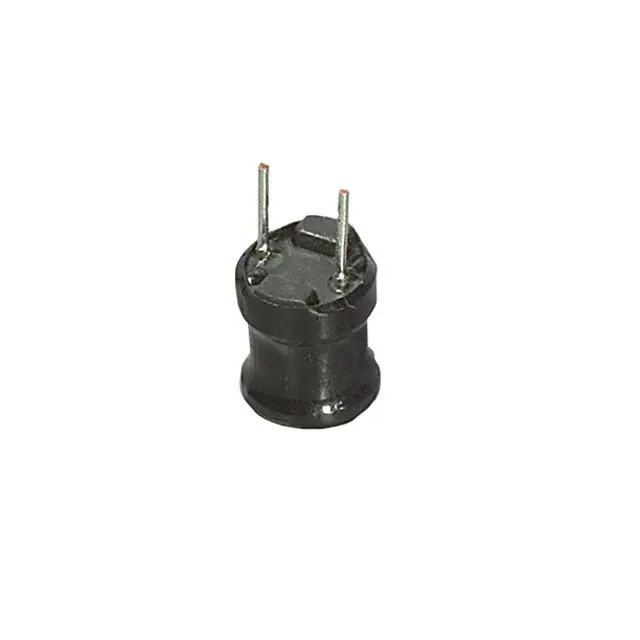

7447452154FIXED IND 150MH 30MA 270 OHM TH Würth Elektronik |
1,487 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 150 mH | ±5% | 30 mA | 40mA | Unshielded | 270Ohm Max | - | 80kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|

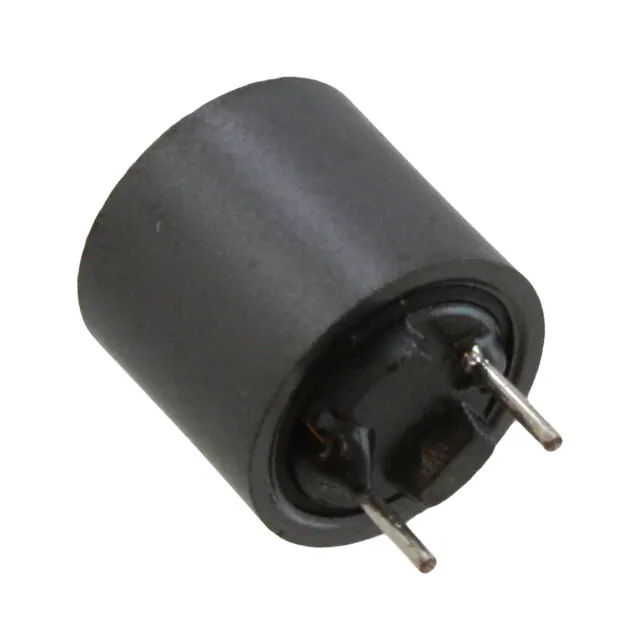

7447471104FIXED IND 100MH 50MA 140 OHM TH Würth Elektronik |
2,929 |
|
数据手册 |
WE-TIS | Radial, Vertical Cylinder | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 50 mA | 50mA | Shielded | 140Ohm Max | - | 90kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
7447471473FIXED IND 47MH 70MA 90 OHM TH Würth Elektronik |
2,823 |
|
数据手册 |
WE-TIS | Radial, Vertical Cylinder | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 47 mH | ±10% | 70 mA | 70mA | Shielded | 90Ohm Max | - | 150kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
744030100FIXED IND 10UH 280MA 760MOHM SMD Würth Elektronik |
2,187 |
|
数据手册 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 280 mA | 350mA | Shielded | 760mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.041" (1.05mm) |
|
|
744030220FIXED IND 22UH 220MA 1.45OHM SMD Würth Elektronik |
2,086 |
|
数据手册 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 220 mA | 250mA | Shielded | 1.45Ohm Max | - | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.041" (1.05mm) |
|
|
74479876147FIXED IND 470NH 2.1A 40 MOHM SMD Würth Elektronik |
4,095 |
|
数据手册 |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 2.1 A | 2A | Unshielded | 40mOhm | 13 @ 1MHz | 120MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74479876210FIXED IND 1UH 1.5A 70 MOHM SMD Würth Elektronik |
3,162 |
|
数据手册 |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 1.5 A | 1.5A | Unshielded | 70mOhm | 20 @ 1MHz | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
