固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
701014330FIXED IND 3.3UH 35A 1.1 MOHM SMD Würth Elektronik |
3,273 |
|
数据手册 |
WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±15% | 35 A | 40A | Shielded | 1.1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
|
701014470FIXED IND 4.7UH 35A 1.1 MOHM SMD Würth Elektronik |
3,760 |
|
数据手册 |
WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±15% | 35 A | 30A | Shielded | 1.1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
|
701014680FIXED IND 6.8UH 35A 1.1 MOHM SMD Würth Elektronik |
3,984 |
|
数据手册 |
WE-FLAT-I | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±15% | 35 A | 20A | Shielded | 1.1mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
7444211415150FIXED IND 15UH 5.8A 14.6MOHM TH Würth Elektronik |
4,099 |
|
数据手册 |
WE-HIDA | Nonstandard | Tray | Active | - | - | 15 µH | ±20% | 5.8 A | 9.5A | Unshielded | 14.6mOhm | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.610" L x 0.551" W (15.50mm x 14.00mm) | 0.630" (16.00mm) |
|

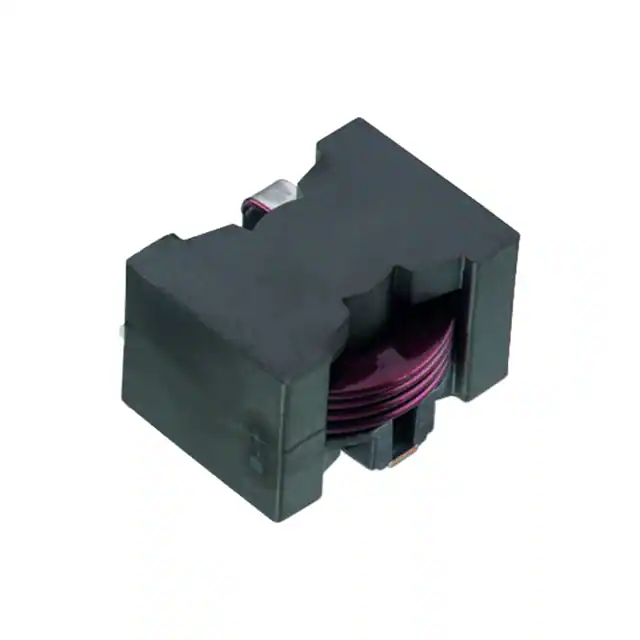

78436432100FIXED IND 10UH 38A 1.1 MOHM SMD Würth Elektronik |
1,589 |
|
数据手册 |
WE-HCFA | Nonstandard | Tray | Obsolete | Wirewound | - | 10 µH | ±15% | 38 A | 14A | Shielded | 1.1mOhm Max | - | 18MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 1.083" L x 1.083" W (27.50mm x 27.50mm) | 0.669" (17.00mm) |
|
S14100036FIXED IND 56UH 17A 8.5 MOHM TH Würth Elektronik |
3,889 |
|
数据手册 |
WE-LCB | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 56 µH | ±20% | 17 A | - | Unshielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 0.906" W (36.00mm x 23.00mm) | 1.378" (35.00mm) |
|

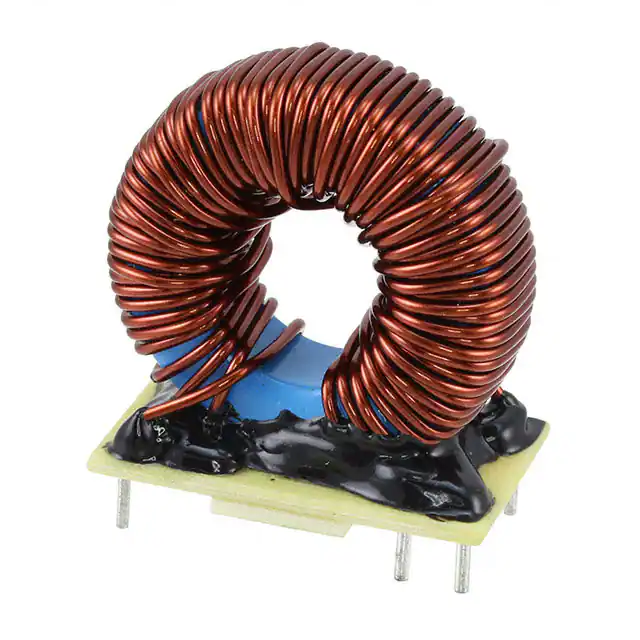

S14100035FIXED IND 307UH 7A 65 MOHM TH Würth Elektronik |
3,037 |
|
数据手册 |
WE-LCB | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 307 µH | ±20% | 7 A | - | Unshielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.772" L x 0.906" W (45.00mm x 23.00mm) | 1.654" (42.00mm) |
|
744028100FIXED IND 10UH 600MA 670MOHM SMD Würth Elektronik |
1,877 |
|
数据手册 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 600 mA | 450mA | Shielded | 670mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.047" (1.20mm) |
|
|
744028150FIXED IND 15UH 450MA 830MOHM SMD Würth Elektronik |
3,437 |
|
数据手册 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 450 mA | 350mA | Shielded | 830mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.047" (1.20mm) |
|
|
744028220FIXED IND 22UH 350MA 1.48OHM SMD Würth Elektronik |
1,626 |
|
数据手册 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 350 mA | 270mA | Shielded | 1.48Ohm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.047" (1.20mm) |
