固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404041101FIXED IND 100UH 430MA 1.697 OHM Würth Elektronik |
445 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 430 mA | 300mA | Shielded | 1.697Ohm | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
1.2mm.jpg)
|
74438334010FIXED IND 1UH 2.75A 50.5MOHM SMD Würth Elektronik |
272 |
|
数据手册 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 2.75 A | 6.6A | Shielded | 50.5mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74404024470WE-LQS SMT SEMI-SHIELDED POWER I Würth Elektronik |
3,622 |
|
数据手册 |
WE-LQS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 0.33 A | 350mA | Shielded | 1.65Ohm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74404032101WE-LQS SMT SEMI-SHIELDED POWER I Würth Elektronik |
1,709 |
|
数据手册 |
WE-LQS | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 0.3 A | 260mA | Shielded | 1.9Ohm | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
744912147FIXED IND 47NH 3A 5.6 MOHM SMD Würth Elektronik |
2,002 |
|
数据手册 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±5% | 3 A | - | Unshielded | 5.6mOhm Max | 100 @ 150MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
744912210FIXED IND 100NH 1.7A 12.3MOHM SM Würth Elektronik |
1,203 |
|
数据手册 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 100 nH | ±5% | 1.7 A | - | Unshielded | 12.3mOhm Max | 100 @ 150MHz | 1.2GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
744912133FIXED IND 33NH 3A 4.8 MOHM SMD Würth Elektronik |
860 |
|
数据手册 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 33 nH | ±5% | 3 A | - | Unshielded | 4.8mOhm Max | 100 @ 150MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
744912139FIXED IND 39NH 3A 4.4 MOHM SMD Würth Elektronik |
610 |
|
数据手册 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 39 nH | ±5% | 3 A | - | Unshielded | 4.4mOhm Max | 100 @ 150MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|

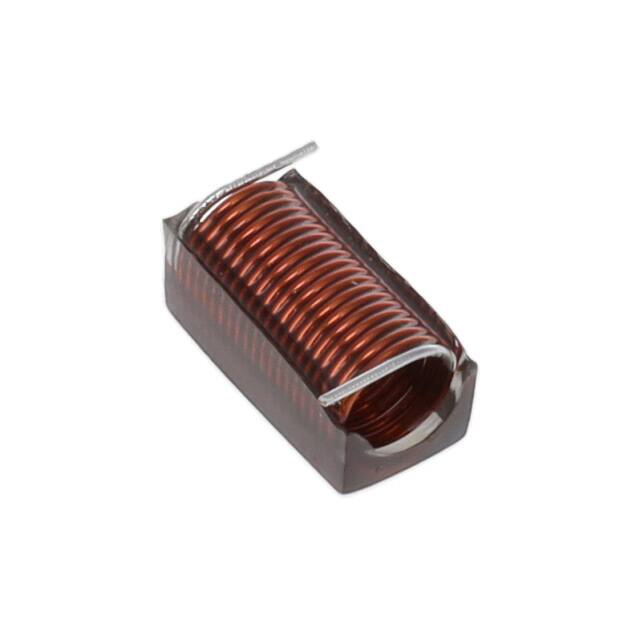

744918254FIXED IND 538NH 2A 90 MOHM SMD Würth Elektronik |
601 |
|
数据手册 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 538 nH | ±5% | 2 A | - | Unshielded | 90mOhm Max | 100 @ 50MHz | 490MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
|
|
744912156FIXED IND 56NH 3A 6.2 MOHM SMD Würth Elektronik |
454 |
|
数据手册 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 56 nH | ±5% | 3 A | - | Unshielded | 6.2mOhm Max | 100 @ 150MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
