固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404054150FIXED IND 15UH 2A 86 MOHM SMD Würth Elektronik |
6,440 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2 A | 2.2A | Shielded | 86mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
74404063150FIXED IND 15UH 1.45A 125MOHM SMD Würth Elektronik |
6,252 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.45 A | 1.9A | Shielded | 125mOhm | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
1.2mm.jpg)
|

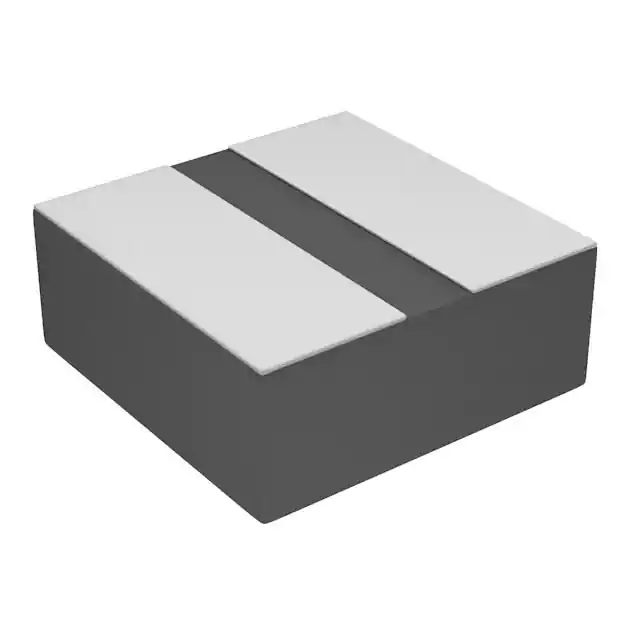

74438334022FIXED IND 2.2UH 1.8A 115MOHM SMD Würth Elektronik |
6,224 |
|
数据手册 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 1.8 A | 5A | Shielded | 115mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74404042331FIXED IND 330UH 200MA 5.3OHM SMD Würth Elektronik |
5,735 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 µH | ±20% | 200 mA | 300mA | Shielded | 5.3Ohm | - | 4.2MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
74404054068FIXED IND 6.8UH 2.5A 43 MOHM SMD Würth Elektronik |
5,109 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.5 A | 3.2A | Shielded | 43mOhm | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
74404063470FIXED IND 47UH 1.06A 315MOHM SMD Würth Elektronik |
4,798 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.06 A | 1.3A | Shielded | 315mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6028 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
744383340068FIXED IND 680NH 3.5A 43.2MOHM SM Würth Elektronik |
4,372 |
|
数据手册 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 680 nH | ±30% | 3.5 A | 7.7A | Shielded | 43.2mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74404064101FIXED IND 100UH 800MA 433MOHM SM Würth Elektronik |
4,260 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1.2A | Shielded | 433mOhm | - | 6.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
1mm.jpg)
|
74438323022FIXED IND 2.2UH 1.3A 176MOHM SMD Würth Elektronik |
4,172 |
|
数据手册 |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 1.3 A | 2.5A | Shielded | 176mOhm Max | - | 60MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
74404054330FIXED IND 33UH 1.2A 188 MOHM SMD Würth Elektronik |
4,168 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.2 A | 1.4A | Shielded | 188mOhm | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
