固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404054222FIXED IND 2.2MH 140MA 12.9OHM SM Würth Elektronik |
1,519 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±20% | 140 mA | 180mA | Shielded | 12.9Ohm | - | 1.3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
74404054331FIXED IND 330UH 400MA 2.1OHM SMD Würth Elektronik |
1,011 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 400 mA | 470mA | Shielded | 2.1Ohm | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
74404054100FIXED IND 10UH 2.1A 64 MOHM SMD Würth Elektronik |
30,977 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | 2.5A | Shielded | 64mOhm | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
1mm.jpg)
|
74438323047FIXED IND 4.7UH 940MA 388MOHM SM Würth Elektronik |
16,543 |
|
数据手册 |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 940 mA | 1.75A | Shielded | 388mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
1.2mm.jpg)
|
744383340047FIXED IND 470NH 4A 26.4 MOHM SMD Würth Elektronik |
11,484 |
|
数据手册 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±30% | 4 A | 9.4A | Shielded | 26.4mOhm Max | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74404042680FIXED IND 68UH 540MA 840MOHM SMD Würth Elektronik |
11,026 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 540 mA | 630mA | Shielded | 840mOhm | - | 9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

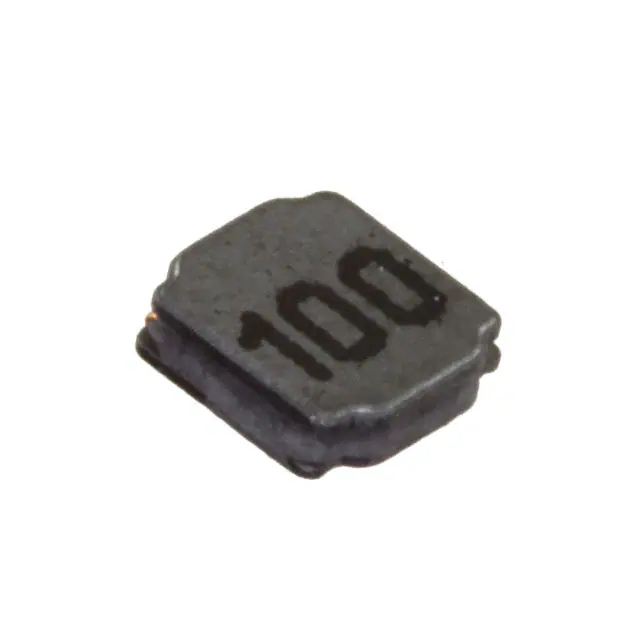

74404041100FIXED IND 10UH 1.32A 168MOHM SMD Würth Elektronik |
9,830 |
|
数据手册 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.32 A | 1A | Shielded | 168mOhm | - | 38MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
1.5mm.jpg)
|
74438335010FIXED IND 1UH 2.7A 47 MOHM SMD Würth Elektronik |
9,747 |
|
数据手册 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 2.7 A | 4.5A | Shielded | 47mOhm Max | - | 72MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
74438323068FIXED IND 6.8UH 850MA 648MOHM SM Würth Elektronik |
9,266 |
|
数据手册 |
WE-MAPI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 850 mA | 1.55A | Shielded | 648mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
74438335022FIXED IND 2.2UH 1.8A 108MOHM SMD Würth Elektronik |
6,776 |
|
数据手册 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 1.8 A | 3.5A | Shielded | 108mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
