固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74405042015FIXED IND 1.5UH 3.2A 36 MOHM SMD Würth Elektronik |
779 |
|
数据手册 |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.2 A | 8.7A | Shielded | 36mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.157" L x 0.146" W (4.00mm x 3.70mm) | 0.079" (2.00mm) |
|

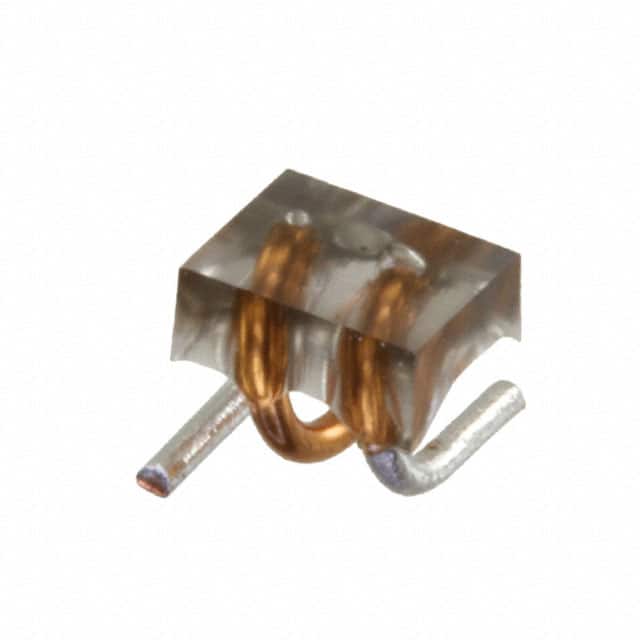

744913050FIXED IND 5NH 4A 1.8 MOHM SMD Würth Elektronik |
426 |
|
数据手册 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 5 nH | ±5% | 4 A | - | Unshielded | 1.8mOhm Max | 140 @ 150MHz | 6.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
744911071FIXED IND 7.15NH 1.6A 10MOHM SMD Würth Elektronik |
267 |
|
数据手册 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 7.15 nH | ±5% | 1.6 A | - | Unshielded | 10mOhm Max | 100 @ 800MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1340 | 0.159" L x 0.056" W (4.04mm x 1.42mm) | 0.060" (1.52mm) |
|

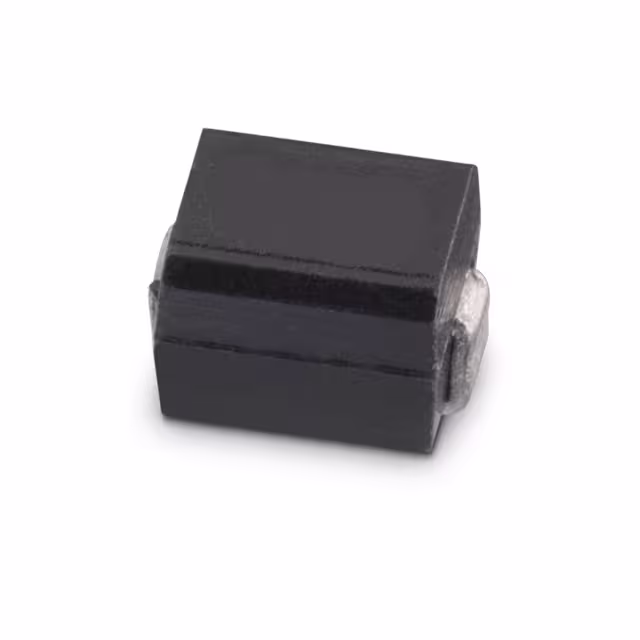

744764118FIXED IND 18UH 120MA 3.3 OHM SMD Würth Elektronik |
1,613 |
|
数据手册 |
WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 120 mA | - | Unshielded | 3.3Ohm Max | 30 @ 2.52MHz | 23MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
7447462010FIXED IND 1UH 8.5A 15 MOHM TH Würth Elektronik |
662 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 8.5 A | 8A | Unshielded | 15mOhm Max | - | 140MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|
|
7447462068FIXED IND 6.8UH 3.3A 34 MOHM TH Würth Elektronik |
355 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.3 A | 3A | Unshielded | 34mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|
|
7447462680FIXED IND 68UH 800MA 400 MOHM TH Würth Elektronik |
354 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 800 mA | 1A | Unshielded | 400mOhm Max | - | 7.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|
|
7447462681FIXED IND 680UH 250MA 3.7 OHM TH Würth Elektronik |
302 |
|
数据手册 |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 250 mA | 300mA | Unshielded | 3.7Ohm Max | - | 2.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|
744766218FIXED IND 180UH 100MA 9.5OHM SMD Würth Elektronik |
995 |
|
数据手册 |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 100 mA | - | Unshielded | 9.5Ohm Max | 40 @ 796kHz | 5.5MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
|
|
744766012FIXED IND 1.2UH 430MA 550MOHM SM Würth Elektronik |
500 |
|
数据手册 |
WE-GF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 430 mA | - | Unshielded | 550mOhm Max | 50 @ 7.96MHz | 250MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 4532 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.142" (3.60mm) |
