固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

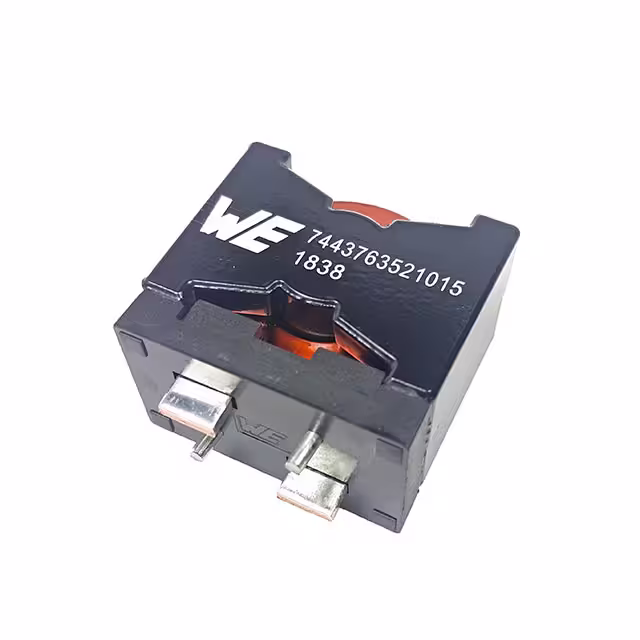

7443763521015FIXED IND 1.5UH 75A 0.4 MOHM TH Würth Elektronik |
2,426 |
|
数据手册 |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 1.5 µH | ±20% | 75 A | 125A | Shielded | 0.4mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 0.846" W (36.00mm x 21.50mm) | 1.378" (35.00mm) |
|

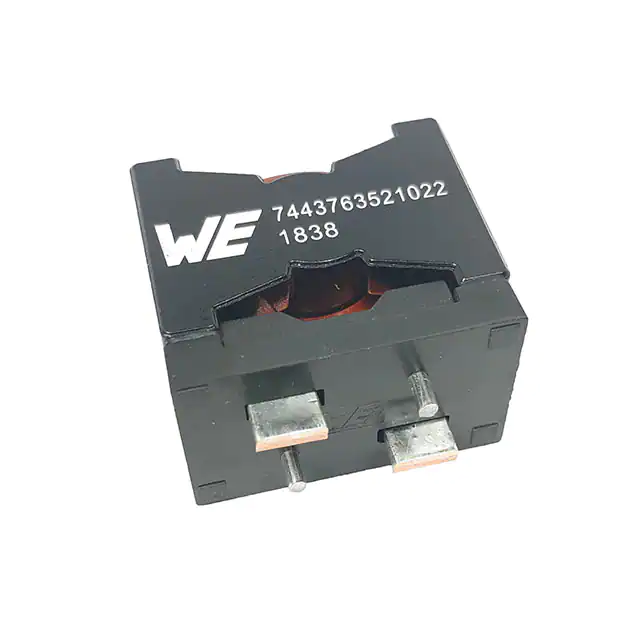

7443763521022FIXED IND 2.2UH 75A 0.4 MOHM TH Würth Elektronik |
1,990 |
|
数据手册 |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 2.2 µH | ±20% | 75 A | 120A | Shielded | 0.4mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 0.846" W (36.00mm x 21.50mm) | 1.378" (35.00mm) |
|
7443783533330FIXED IND 33UH 22A 9.9 MOHM TH Würth Elektronik |
2,036 |
|
数据手册 |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 33 µH | ±20% | 22 A | 39.2A | Shielded | 9.9mOhm Max | - | 6.08MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | 1.378" (35.00mm) |
|
7443763540068FIXED IND 6.8UH 56.7A 1.2MOHM TH Würth Elektronik |
4,363 |
|
数据手册 |
WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 6.8 µH | ±20% | 56.7 A | 76.5A | Shielded | 1.2mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.614" L x 1.417" W (41.00mm x 36.00mm) | 1.378" (35.00mm) |
|
7847806270WE-MCI MULTILAYER CERAMIC SMD IN Würth Elektronik |
966 |
|
数据手册 |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 27 nH | ±5% | 300 mA | - | Unshielded | 450mOhm Max | 12 @ 100MHz | 1.4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
7447860112GWE-MK MULTILAYER CERAMIC SMT IND Würth Elektronik |
744 |
|
数据手册 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 12 nH | ±2% | 300 mA | - | Unshielded | 280mOhm Max | 12 @ 100MHz | 2.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
7847806181WE-MCI MULTILAYER CERAMIC SMD IN Würth Elektronik |
130 |
|
数据手册 |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 180 nH | ±5% | 300 mA | - | Unshielded | 1.3Ohm Max | 8 @ 50MHz | 400MHz | AEC-Q200 | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
7847806100WE-MCI MULTILAYER CERAMIC SMD IN Würth Elektronik |
114 |
|
数据手册 |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±5% | 300 mA | - | Unshielded | 260mOhm Max | 12 @ 100MHz | 3.4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
744786112AFIXED IND 12NH 500MA 450MOHM SMD Würth Elektronik |
158 |
|
数据手册 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 12 nH | ±5% | 500 mA | - | Unshielded | 450mOhm Max | 8 @ 100MHz | 3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
744760222CFIXED IND 220NH 400MA 1 OHM SMD Würth Elektronik |
825 |
|
数据手册 |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 400 mA | - | Unshielded | 1Ohm Max | 35 @ 250MHz | 850MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
